Mobile Robot Controllers#

Note

For new controller development, consider using the newer experimental motion generation API in Motion Generation (Experimental), which provides improved interfaces and additional features.

Differential controller#

The differential controller uses the speed differential between the left and right wheels to control the robot’s linear and angular velocity. The differential robot enables the robot to turn in place and is used in the NVIDIA Nova Carter robot.

Nova Carter

The Math#

\[ \begin{align}\begin{aligned}\omega_R &= \frac{1}{2r}(2V + \omega l_{tw})\\\omega_L &= \frac{1}{2r}(2V - \omega l_{tw})\end{aligned}\end{align} \]

where \(\omega\) is the desired angular velocity, \(V\) is the desired linear velocity, \(r\) is the radius of the wheels, and \(l_{tw}\) is the distance between them. \(\omega_R\) is the desired right wheel angular velocity and \(\omega_L\) is the desired left wheel angular velocity.

OmniGraph Node#

Differential Controller Omnigraph Inputs#

Input Commands

description

execIn

Input execution

wheelRadius

Radius of the wheels in meters

wheelDistance

Distance between the wheels in meters

dt

Delta time in seconds

maxAcceleration

Max linear acceleration for moving forward and reverse in m/s^2, 0.0 means not set

maxDeceleration

Max linear breaking of the robot in m/s^2, 0.0 means not set

maxAngularAcceleration

Max angular acceleration of the robot in rad/s^2, 0.0 means not set

maxLinearSpeed

Max linear speed allowed for the robot in m/s, 0.0 means not set

maxAngularSpeed

Max angular speed allowed for the robot in rad/s, 0.0 means not set

maxWheelSpeed

Max wheel speed in rad/s

Desired Linear Velocity

Desired linear velocity in m/s

Desired Angular Velocity

Desired angular velocity in rad/s
Differential Controller Omnigraph Outputs#

Output Commands

description

VelocityCommand

Velocity command for the left and right wheel in m/s and rad/s

Python#

The code snippet below setups the differential controller for a NVIDIA Jetbot with a wheel radius of 3 cm and a base of 11.25cm, with a linear speed of 0.3m/s and angular speed of 1.0rad/s.

# Reference: source/standalone_examples/api/isaacsim.robot.wheeled_robots.examples/jetbot_differential_move.py
# Timeline: use app_utils (play/stop/is_playing) instead of omni.timeline. Use app_utils.update_app(steps=N) instead of for-loop simulation_app.update(); same for other mobile_robot_controllers examples.

from isaacsim import SimulationApp

simulation_app = SimulationApp({"headless": False})

import isaacsim.core.experimental.utils.app as app_utils
import isaacsim.core.experimental.utils.stage as stage_utils
from isaacsim.core.experimental.objects import DomeLight
from isaacsim.core.simulation_manager import SimulationManager
from isaacsim.robot.experimental.wheeled_robots.controllers import DifferentialController
from isaacsim.robot.experimental.wheeled_robots.robots import WheeledRobot
from isaacsim.storage.native import get_assets_root_path

DEVICE = "cpu"

assets_root_path = get_assets_root_path()
if assets_root_path is None:
    raise RuntimeError("Could not find Isaac Sim assets folder")
jetbot_asset_path = assets_root_path + "/Isaac/Robots/NVIDIA/Jetbot/jetbot.usd"

stage_utils.set_stage_up_axis("Z")
stage_utils.set_stage_units(meters_per_unit=1.0)
stage_utils.add_reference_to_stage(
    usd_path=assets_root_path + "/Isaac/Environments/Grid/default_environment.usd",
    path="/World/ground",
)
dome_light = DomeLight("/World/DomeLight")
dome_light.set_intensities(500)

my_jetbot = WheeledRobot(
    paths="/World/Jetbot",
    wheel_dof_names=["left_wheel_joint", "right_wheel_joint"],
    usd_path=jetbot_asset_path,
    positions=[0.0, 0.0, 0.05],
)
my_controller = DifferentialController(wheel_radius=0.03, wheel_base=0.1125)

# Setup simulation and disable GPU dynamics for this example.
SimulationManager.setup_simulation(dt=1.0 / 60.0, device=DEVICE)
physics_scene = SimulationManager.get_physics_scenes()[0]
physics_scene.set_enabled_gpu_dynamics(False)
app_utils.play()
app_utils.update_app(steps=10)

# Simulation loop: apply [linear_speed, angular_speed]; e.g. 0.3 m/s, 1.0 rad/s.
linear_speed = 0.3
angular_speed = 1.0
while simulation_app.is_running():
    simulation_app.update()
    if app_utils.is_playing():
        velocities = my_controller.forward([linear_speed, angular_speed])
        my_jetbot.apply_wheel_actions(velocities)

app_utils.stop()
simulation_app.close()

Holonomic Controller#

The holonomic controller computes the joint drive commands required on omni-directional robots to produce the commanded forward, lateral, and yaw speeds of the robot. An example of a holonomic robot is the NVIDIA Kaya robot. The problem is framed as a quadratic program to minimize the residual “net force” acting on the center of mass.

Kaya

Note

The wheel joints of the robot prim must have additional attributes to definine the roller angles and radii of the mecanum wheels.

stage = omni.usd.get_context().get_stage()
joint_prim = stage.GetPrimAtPath("/path/to/wheel_joint")
joint_prim.CreateAttribute("isaacmecanumwheel:radius", Sdf.ValueTypeNames.Float).Set(0.12)
joint_prim.CreateAttribute("isaacmecanumwheel:angle", Sdf.ValueTypeNames.Float).Set(10.3)

The HolonomicRobotUsdSetup class automates this process.

The Math#

The cost funciton is defined as the control input to the robot joints. By minimizing the control inputs, excess acceleration and be reduced.

\[J = min(X^T \cdot X)\]

The equality constrains are set by the linear and angular target velocity Inputs:

\[ \begin{align}\begin{aligned}v_{input} &= V^T \cdot X\\w_{input} &= (V \times D_{wheel dist to COM}) \cdot X\end{aligned}\end{align} \]

OmniGraph Node#

Holonomic Controller Omnigraph Inputs#

Input Commands

description

execIn

Input execution

wheelRadius

Array of wheel radius in meters

wheelPositions

Position of the wheel with respect to chassis’ center of mass in meters

wheelOrientations

Orientation of the wheel with respect to chassis’ center of mass frame

mecanumAngles

Angles of the mecanum wheels with respect to wheel’s rotation axis in radians

wheelAxis

The rotation axis of the wheels

upAxis

The up axis (default to z axis)

Velocity Commands for the vehicle

Velocity in x and y (m/s) and rotation (rad/s)

maxLinearSpeed

Maximum speed allowed for the vehicle in m/s

maxAngularSpeed

Maximum angular rotation speed allowed for the vehicles in rad/s

maxWheelSpeed

Maximum rotation speed allowed for the wheel joints in rad/s

linearGain

Gain for the linear velocity input

angularGain

Gain for the angular input
Holonomic Controller Omnigraph Outputs#

Output Commands

description

jointVelocityCommand

Velocity command for the wheel joints in rad/s

Python#

The code snippet below computes the joint velocity output for a three wheeled NVIDIA Kaya holonomic robot with command velocity of [1.0, 1.0, 0.1]

# Reference: source/standalone_examples/api/isaacsim.robot.wheeled_robots.examples/kaya_holonomic_move.py

from isaacsim import SimulationApp

simulation_app = SimulationApp({"headless": False})

import isaacsim.core.experimental.utils.app as app_utils
import isaacsim.core.experimental.utils.stage as stage_utils
from isaacsim.core.experimental.objects import DomeLight
from isaacsim.core.simulation_manager import SimulationManager
from isaacsim.robot.experimental.wheeled_robots.controllers import HolonomicController
from isaacsim.robot.experimental.wheeled_robots.robots import (
    HolonomicRobotUsdSetup,
    WheeledRobot,
)
from isaacsim.storage.native import get_assets_root_path

DEVICE = "cpu"

assets_root_path = get_assets_root_path()
if assets_root_path is None:
    raise RuntimeError("Could not find Isaac Sim assets folder")
kaya_asset_path = assets_root_path + "/Isaac/Robots/NVIDIA/Kaya/kaya.usd"

stage_utils.set_stage_up_axis("Z")
stage_utils.set_stage_units(meters_per_unit=1.0)
stage_utils.add_reference_to_stage(
    usd_path=assets_root_path + "/Isaac/Environments/Grid/default_environment.usd",
    path="/World/ground",
)
# Add dome light to illuminate the whole environment (not just one spot)
dome_light = DomeLight("/World/DomeLight")
dome_light.set_intensities(500)

my_kaya = WheeledRobot(
    paths="/World/Kaya",
    wheel_dof_names=["axle_0_joint", "axle_1_joint", "axle_2_joint"],
    usd_path=kaya_asset_path,
    positions=[0.0, 0.0, 0.02],
    orientations=[1.0, 0.0, 0.0, 0.0],
)

# HolonomicRobotUsdSetup reads wheel geometry from USD for the controller.
kaya_setup = HolonomicRobotUsdSetup(
    robot_prim_path=my_kaya.paths[0],
    com_prim_path="/World/Kaya/base_link/control_offset",
)
(
    wheel_radius,
    wheel_positions,
    wheel_orientations,
    mecanum_angles,
    wheel_axis,
    up_axis,
) = kaya_setup.get_holonomic_controller_params()
my_controller = HolonomicController(
    wheel_radius=wheel_radius,
    wheel_positions=wheel_positions,
    wheel_orientations=wheel_orientations,
    mecanum_angles=mecanum_angles,
    wheel_axis=wheel_axis,
    up_axis=up_axis,
)

# Setup simulation and disable GPU dynamics for this example.
SimulationManager.setup_simulation(dt=1.0 / 60.0, device=DEVICE)
physics_scene = SimulationManager.get_physics_scenes()[0]
physics_scene.set_enabled_gpu_dynamics(False)
app_utils.play()
app_utils.update_app(steps=10)

# Simulation loop: apply [forward, lateral, yaw]; e.g. 1.0, 1.0, 0.1.
command = [1.0, 1.0, 0.1]
while simulation_app.is_running():
    simulation_app.update()
    if app_utils.is_playing():
        velocities = my_controller.forward(command)
        my_kaya.apply_wheel_actions(velocities)

app_utils.stop()
simulation_app.close()

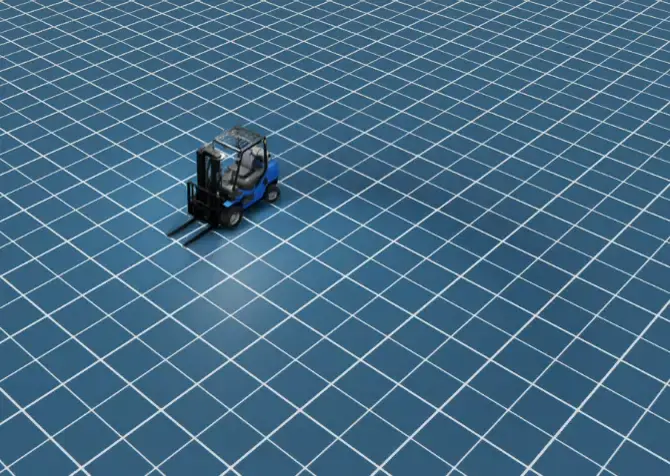

Ackermann Controller#

The Ackermann controller is commonly used for robots with steerable wheels, an example of steerable robot is the NVIDIA leatherback robot. The Ackermann controller in Isaac Sim assumes the desired steering angle and linear velocity are provided, and based on the robot geometry

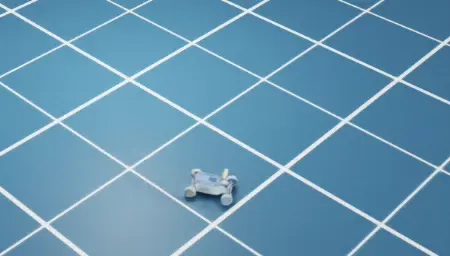

Leatherback

The Math#

Compute the steering angle offset between the left and right steering wheels:

\[ \begin{align}\begin{aligned}R_{icr} &= \frac{l_{wb}}{tan(\theta_{steer})}\\\theta_L &= \arctan[\frac{l_{wb}}{R_{icr} - 0.5 * l_{tw}}]\\\theta_R &= \arctan[\frac{l_{wb}}{R_{icr} + 0.5 * l_{tw}}]\end{aligned}\end{align} \]

where \(R_{icr}\) is the radius to the instantaneous center of rotation, \(\theta_{steer}\) is the desired steering angle, \(l_{wb}\) is the distance between rear and front axles (wheel base), \(l_{tw}\) is the track width

Compute the individual wheel velocities (Forward steering case):

First step is to find the distance between the wheels and the instantaneous center of rotation.

\[ \begin{align}\begin{aligned}D_{front} &= \sqrt{ (R_{icr} \pm 0.5 l_{tw})^2 + (l_{wb})^2 }\\D_{rear} &= R_{icr} \pm 0.5 l_{tw}\end{aligned}\end{align} \]

Note

for \(\pm\), use \(-\) for the wheel closer to the \(R_{icr}\) and \(+\) for the wheel further to the \(R_{icr}\)

Then desired wheel velocity can be computed

\[ \begin{align}\begin{aligned}\omega_{front} &= \frac{V_{desired}}{R_{icr}} \cdot \frac{D_{front}}{r_{front}}\\\omega_{rear} &= \frac{V_{desired}}{R_{icr}} \cdot \frac{D_{rear}}{r_{rear}}\end{aligned}\end{align} \]

Where \(V_{desired}\) is the desired linear velocity, \(r_{front}\) is the desired front wheel radius, and \(r_{rear}\) is the desired rear wheel radius.

OmniGraph Node#

Ackermann Controller Omnigraph Inputs#

Input Commands

description

execIn

Input execution

acceleration

Desired forward acceleration for the robot in m/s^2

speed

Desired forward speed in m/s

steeringAngle

Desired steering angle in radians, by default it is positive for turning left for a front wheel drive

currentLinearVelocity

Current linear velocity of the robot in m/s

wheelBase

Distance between the front and rear axles of the robot in meters

trackWidth

Distance between the left and right rear wheels of the robot in meters

turningWheelRadius

Radius of the front wheels of the robot in meters

maxWheelVelocity

Maximum angular velocity of the robot wheel in rad/s

invertSteeringAngle

Flips the sign of the steering angle, Set to true for rear wheel steering

useAcceleration

Use acceleration as an input, Set to false to use speed as input instead

maxWheelRotation

Maximum angle of rotation for the front wheels in radians

dt

Delta time for the simulation step
Ackermann Controller Omnigraph Outputs#

Output Commands

description

execOut

Output execution

leftWheelAngle

Angle for the left turning wheel in radians

rightWheelAngle

Angle for the right turning wheel in radians

wheelRotationVelocity

Angular velocity for the turning wheels in rad/s

Python#

The python snippet below creates an Ackermann controller for a NVIDIA Leatherback robot with a wheel base of 1.65m, track width of 1.25m, and wheel radius of 0.25m, sending it a desired forward velocity of 1.1 m/s and steering angle of 0.1 rad.

# Ackermann steering example using the experimental API (no core World).
# Uses Articulation from core.experimental.prims and AckermannController from
# isaacsim.robot.experimental.wheeled_robots.

from isaacsim import SimulationApp

simulation_app = SimulationApp({"headless": False})

import isaacsim.core.experimental.utils.app as app_utils
import isaacsim.core.experimental.utils.stage as stage_utils
from isaacsim.core.experimental.objects import DomeLight
from isaacsim.core.experimental.prims import Articulation
from isaacsim.core.simulation_manager import SimulationManager
from isaacsim.robot.experimental.wheeled_robots.controllers import AckermannController
from isaacsim.storage.native import get_assets_root_path

DEVICE = "cpu"

assets_root_path = get_assets_root_path()
if assets_root_path is None:
    raise RuntimeError("Could not find Isaac Sim assets folder")
leatherback_asset_path = assets_root_path + "/Isaac/Robots/NVIDIA/Leatherback/leatherback.usd"
leatherback_prim_path = "/World/Leatherback"

stage_utils.set_stage_up_axis("Z")
stage_utils.set_stage_units(meters_per_unit=1.0)
stage_utils.add_reference_to_stage(
    usd_path=assets_root_path + "/Isaac/Environments/Grid/default_environment.usd",
    path="/World/ground",
)
dome_light = DomeLight("/World/DomeLight")
dome_light.set_intensities(500)
stage_utils.add_reference_to_stage(usd_path=leatherback_asset_path, path=leatherback_prim_path)

my_leatherback = Articulation(leatherback_prim_path)

# Steering joints (position control) and wheel joints (velocity control)
steering_joint_names = [
    "Knuckle__Upright__Front_Left",
    "Knuckle__Upright__Front_Right",
]
wheel_joint_names = [
    "Wheel__Knuckle__Front_Left",
    "Wheel__Knuckle__Front_Right",
    "Wheel__Upright__Rear_Left",
    "Wheel__Upright__Rear_Right",
]

steering_dof_indices = my_leatherback.get_dof_indices(steering_joint_names)
wheel_dof_indices = my_leatherback.get_dof_indices(wheel_joint_names)

wheel_base = 1.65
track_width = 1.25
wheel_radius = 0.25
desired_forward_vel = 1.1  # m/s
desired_steering_angle = 0.1  # rad
acceleration = 0.0
steering_velocity = 0.0
dt = 0.0

controller = AckermannController(
    wheel_base=wheel_base,
    track_width=track_width,
    front_wheel_radius=wheel_radius,
    back_wheel_radius=wheel_radius,
)
# Command: [steering_angle, steering_angle_velocity, speed, acceleration, dt]
joint_positions, joint_velocities = controller.forward(
    [desired_steering_angle, steering_velocity, desired_forward_vel, acceleration, dt]
)

# Setup simulation and disable GPU dynamics for this example.
SimulationManager.setup_simulation(dt=1.0 / 60.0, device=DEVICE)
physics_scene = SimulationManager.get_physics_scenes()[0]
physics_scene.set_enabled_gpu_dynamics(False)
app_utils.play()
app_utils.update_app(steps=10)

# Simulation loop: apply steering positions and wheel velocities.
while simulation_app.is_running():
    simulation_app.update()
    if app_utils.is_playing() and joint_positions is not None and joint_velocities is not None:
        my_leatherback.set_dof_position_targets(
            joint_positions,
            dof_indices=steering_dof_indices,
        )
        my_leatherback.set_dof_velocity_targets(
            joint_velocities,
            dof_indices=wheel_dof_indices,
        )

app_utils.stop()
simulation_app.close()
