Geometry

If a mutable has attribute type of geometry, it’s a geometry. A geometry is a substance in space.

Available attributes of geometry:

Name	Type	Description
subtype	string	refer to Basic shapes, Deformed shape, Room, Compound, Pyramid, and Mesh loaded from USD
physics	string	collision or rigidbody
is_instance	bool	whether the geometry is instanced - default to true; required to be false for shader attribute randomization

If physics is set to rigidbody, the object is a dynamic object that responds to physics. If it’s set to collision, the object is a static object that dynamic objects interact with. For example, a wall can have collision and a ping-pong ball bouncing off of it has rigidbody.

Physics Properties Randomization

When physics is set to rigidbody or collision, you can randomize various physics properties to create more diverse simulations. The following properties can be randomized using distribution types:

Property	Type	Description
friction	numeric	Friction coefficient (both static and dynamic). Defaults to the global friction setting if not specified.
linear_damping	numeric	Linear damping coefficient for rigidbody objects. Defaults to the global linear_damping setting.
angular_damping	numeric	Angular damping coefficient for rigidbody objects. Defaults to the global angular_damping setting.
concave	bool	Whether to use convex decomposition for collision detection. Defaults to False (uses convex hull).
initial_velocity	list	Initial linear velocity as [x, y, z]. Each component can be randomized using distribution types.
initial_angular_velocity	list	Initial angular velocity as [x, y, z]. Each component can be randomized using distribution types.

Example of randomizing physics properties:

box:
  type: geometry
  subtype: cube
  physics: rigidbody
  friction:
    distribution_type: range
    start: 0.1
    end: 0.9
  linear_damping:
    distribution_type: range
    start: 0
    end: 5
  initial_velocity:
  - 0.0
  - distribution_type: range
    start: 50.0
    end: 100.0
  - 0.0

Basic shapes

If subtype is one of cone, cube, cylinder, disk, torus, plane, or sphere it defines the corresponding basic geometry.

Compound geometry

If subtype is compound, it defines a compound geometry composed of multiple parts forming a single rigid body. Each part can be a basic shape (cube, sphere, cylinder, capsule, or cone). The compound geometry is useful for creating complex objects like rockets or multi-part assemblies.

Attributes of compound geometry:

Name	Type	Description
parts	dict	Dictionary of part definitions. Each part has a subtype (cube, sphere, cylinder, capsule, or cone) and optional attributes like color, transform_operators, and size parameters (e.g., radius, height, size).

Example of compound geometry:

rocket:
  type: geometry
  subtype: compound
  physics: rigidbody
  parts:
    main_capsule:
      subtype: capsule
      radius: 10.0
      height: 25.0
      color: [0.8, 0.1, 0.1]
      transform_operators:
      - translate: [0, 0, 30.0]
    side_booster:
      subtype: capsule
      radius: 5.0
      height: 10.0
      color: [0.8, 0.1, 0.1]
      transform_operators:
      - translate: [30.0, 0, 20.0]

Pyramid geometry

If subtype is pyramid, it defines a pyramid structure composed of multiple boxes arranged in a regular pyramid pattern. The pyramid creates a stable structure where row i (0 to pyramid_size-1) has (pyramid_size - i) boxes. Box sizes and colors can be randomized per box, but positions are regular/ordered for physics stability.

Attributes of pyramid geometry:

Name	Type	Description
pyramid_size	numeric	Number of rows in the pyramid. Total boxes = pyramid_size * (pyramid_size + 1) / 2. Can be randomized using distribution types.
y_position	numeric	Y position (height) of the pyramid base.
offset	numeric	Spacing offset between boxes. Default: 1.0
box_size	numeric	Size of each box. Can be a constant value or a distribution (range) for per-box randomization.
color	list	Color of boxes. Can be randomized per box.

Example of pyramid geometry:

box_pyramid:
  type: geometry
  subtype: pyramid
  physics: rigidbody
  tracked: true
  pyramid_size:
    distribution_type: range
    start: 5
    end: 15
  y_position: -0.24377
  offset: 1.0
  box_size:
    distribution_type: range
    start: 7
    end: 17
  color:
  - distribution_type: range
    start: 0.3
    end: 1.0
  - distribution_type: range
    start: 0.3
    end: 1.0
  - distribution_type: range
    start: 0.3
    end: 1.0

Deformed shape

Physics simulation for bottles is not supported.

If subtype is bottle, it defines a bottle shape, which is a parameterized deformed geometry controlled by the following parameters:

Name	Type	Description
base_effector	string	vertical position of the base effector
neck_effector	string	vertical position of the neck effector
horizontal_effector	string	horizontal position of the body effector
vertical_effector	string	vertical position of the body effector

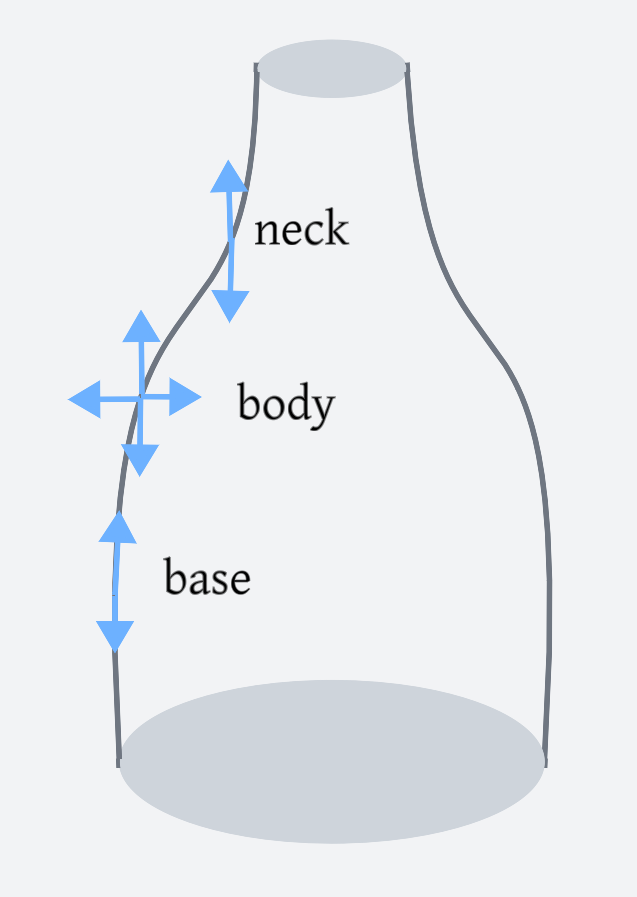

This image illustrates how the shape of the bottle is controlled by these four effectors.

Note

We currently don’t yet have collision detection for deformed shapes; they don’t have physics.

Room geometry

If subtype is room, it defines a room geometry with optional table and walls created using RoomHelper from PhysX demos. This is useful for creating enclosed environments for physics simulations.

Attributes of room geometry:

Name	Type	Description
table_width	numeric	Width of the table. Default: 500.0
table_depth	numeric	Depth of the table. Default: 500.0
has_table	bool	Whether to create a table. Default: True
has_walls	bool	Whether to create walls. Default: True
zoom	numeric	Zoom factor for room size. Default: 0.5
table_rotation	numeric	Rotation of the table in degrees. Can be randomized using distribution types.
floor_color	list	Color of the floor as [r, g, b]. Can be randomized using distribution types.

Example of room geometry:

demo_room:
  type: geometry
  subtype: room
  table_width: 500.0
  table_depth: 500.0
  has_table: true
  has_walls: true
  zoom: 0.5
  table_rotation:
    distribution_type: range
    start: 0
    end: 360
  floor_color:
  - 0.5
  - 0.75
  - 1.0

Mesh loaded from USD

If subtype is mesh, it defines a mesh loaded from USD.

Additional attribute of mesh:

Name	Type	Description
usd_path	string	The path to the USD
