RTX Sensors

RTX sensors in Isaac Sim use the Omniverse RTX Renderer’s RTX Sensor SDK to sense the environment, enabling interaction with materials in visual and non-visual spectra. This means an RTX-based Lidar can model returns from light interaction with transparent or reflective surfaces, and an RTX-based Radar can model returns accounting for material emissivity and reflectivity in the radio spectrum.

Isaac Sim organizes utilities supporting RTX sensors into the isaacsim.sensors.experimental.rtx extension.

Deprecated since version 6.0: The isaacsim.sensors.rtx extension is deprecated. Use isaacsim.sensors.experimental.rtx instead. The new extension provides equivalent sensor classes (Lidar/LidarSensor, Radar/RadarSensor, plus the new Acoustic/AcousticSensor) with a uniform authoring/runtime split. See RTX Sensors.

Getting Started

To get started with RTX sensors:

1. Add a sensor to your scene: Use Create > Isaac > Sensors > RTX Lidar or RTX Radar from the menu, or use the Python APIs described in the sensor-specific pages below.

2. Collect data: Attach annotators to the sensor to extract point cloud data, scan buffers, or raw GenericModelOutput data.

3. Visualize output: Use the Debug Draw Extension to visualize point clouds, or configure viewport debug views.

4. Integrate with ROS2: Follow the RTX Lidar ROS2 Tutorial to publish sensor data as PointCloud2 or LaserScan messages.

Sensor Types

• RTX Lidar Sensor
• RTX Radar Sensor
• RTX Acoustic Sensor

Data Collection and Materials

• RTX Sensor Annotators
• RTX Sensor Non-Visual Materials

Advanced Topics

• Multi-Tick Rendering
• Creating Custom RTX Sensor Profiles

Extension Architecture

RTX sensors are built using the omni.sensors extension suite. To understand more about how RTX sensors are modeled, and how to build your own, review the following documentation:

• Omniverse Common Extension

• Omniverse Lidar Extension

• Omniverse Radar Extension

• Omniverse Acoustic Extension

• Omniverse Materials Extension

Important Settings

The following settings affect RTX sensor behavior and performance:

Setting	Default	Description
--/app/sensors/nv/lidar/outputBufferOnGPU	false	Keep Lidar return buffer on GPU for post-processing. Must be false for annotators to work correctly.
--/app/sensors/nv/radar/outputBufferOnGPU	false	Keep Radar return buffer on GPU for post-processing. Must be false for annotators to work correctly.
--/app/sensors/nv/lidar/publishNormals	false	Enable hit normal output. Increases VRAM usage.
--/rtx/materialDb/nonVisualMaterialCSV/enabled	false	Enable non-visual materials using USD attributes.
--/rtx/materialDb/nonVisualMaterialSemantics/prefix	omni:simready:nonvisual	Specify the non-visual material USD attribute prefix.
--/rtx/rtxsensor/useHydraTimeAlways	true	Use Hydra time (omni.timeline) in RTX sensor models. Applies only if multi-tick rendering is disabled.
--/rtx-transient/stableIds/enabled	false	Enable stable 128-bit object IDs for semantic segmentation.
--/renderer/raytracingMotion/enabled	false	Enable Motion BVH for motion compensation and Doppler effects.

Motion BVH

RTX sensors use Motion BVH to improve accuracy when modeling motion-related sensor effects, for example, the motion of objects during sensor exposure, or the motion of the sensor itself as it collects data.

By default, Motion BVH is disabled in Isaac Sim to improve performance. The following RTX Sensor features are affected by Motion BVH:

• RTX Lidar

  • Motion BVH must be enabled for RTX Lidar motion compensation to work correctly.

• RTX Radar

  • Motion BVH must be enabled for the Doppler effect, and therefore RTX Radar entirely, to be modeled correctly.

How to Enable Motion BVH

Note

Enabling Motion BVH can significantly increase rendering time by increasing VRAM usage for all sensors and must be left disabled when not needed.

There are two ways to enable Motion BVH:

1. In standalone Python workflows, you can enable Motion BVH by specifying enable_motion_bvh as True in the SimulationApp constructor:

from isaacsim import SimulationApp

simulation_app = SimulationApp({"enable_motion_bvh": True})

simulation_app.close()

2. In all workflows, you can enable Motion BVH by specifying the following settings on the command line:

--/renderer/raytracingMotion/enabled=true \
--/renderer/raytracingMotion/enableHydraEngineMasking=true \
--/renderer/raytracingMotion/enabledForHydraEngines='0,1,2,3,4'

Auxiliary Output Level and the GenericModelOutput RenderVar

RTX Lidar, Radar, and Acoustic sensors emit a GenericModelOutput (GMO) AOV. The amount of auxiliary data carried in each GMO frame is controlled by the _replicator:rendervar:GenericModelOutput:channels attribute on the sensor prim.

Setting the channels attribute in the UI

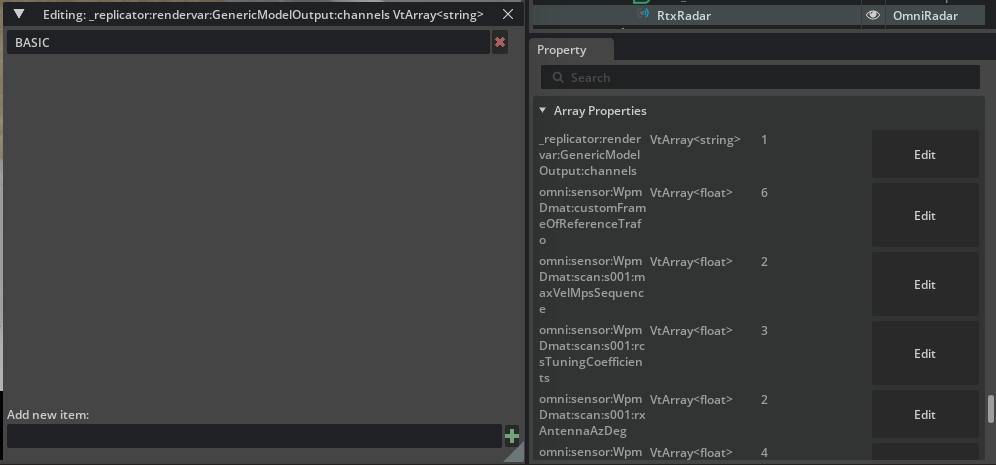

To set _replicator:rendervar:GenericModelOutput:channels on an OmniRadar prim from the Isaac Sim UI:

1. Select the prim in the Stage window.

2. Open the Property tab.

3. Expand the Array Properties widget.

4. Click Edit on the _replicator:rendervar:GenericModelOutput:channels row.

5. Set the first field in the dialog to BASIC.

6. Close the dialog to save the change.

How the attribute flows to the RenderVar

When omni.replicator.core adds a GenericModelOutput RenderVar to a render product that is attached to an RTX sensor prim, it reads _replicator:rendervar:GenericModelOutput:channels from the sensor prim and copies the value onto the RenderVar’s channels attribute. The RTX Sensor SDK then uses that value to decide which auxiliary fields to populate.

The aux_output_level constructor parameter on isaacsim.sensors.experimental.rtx.Lidar, isaacsim.sensors.experimental.rtx.Radar, and isaacsim.sensors.experimental.rtx.Acoustic is a convenience that authors _replicator:rendervar:GenericModelOutput:channels = [level] on the sensor prim. The two paths are interchangeable; reading existing USD scenes is easier if you recognize the underlying attribute.

Valid values are modality-specific:

Modality	Valid values
Lidar	NONE (default), BASIC, EXTRA, FULL
Radar	NONE (default), BASIC
Acoustic	NONE (default), BASIC

See RTX Sensor Annotators for the per-level field listing.

Migration from previous releases

Earlier releases used per-modality USD attributes for the same purpose. These attributes have been removed from the schemas:

Old attribute (removed)	Replacement
omni:sensor:Core:auxOutputType (Lidar)	_replicator:rendervar:GenericModelOutput:channels on the OmniLidar prim, or Lidar(..., aux_output_level='FULL').
omni:sensor:WpmDmat:auxOutputType (Radar)	_replicator:rendervar:GenericModelOutput:channels on the OmniRadar prim, or Radar(..., aux_output_level='BASIC').

USD assets shipped with Isaac Sim 6.0 have already been updated. Custom USD scenes carrying the old attributes need to be migrated; the old attributes are silently ignored by the new schemas.

Note

RtxCamera removes _replicator:rendervar:GenericModelOutput:channels from the Camera prim during construction because cameras do not produce a GMO AOV. Camera prims therefore do not participate in the propagation behavior described in Known issue: last-attach-wins propagation of GMO channels.

Known issue: last-attach-wins propagation of GMO channels

Warning

The _replicator:rendervar:GenericModelOutput:channels attribute is currently effectively global per render-product-attach event. When two RTX sensors on the same stage author different values, only the last sensor to have a render product attached “wins” - every subsequent GenericModelOutput RenderVar uses that sensor’s channels value, regardless of which sensor prim it was created from.

Concrete example. Suppose you have one Lidar with aux_output_level="FULL" and one Radar with aux_output_level="BASIC" on the same stage:

• If the Radar render product is created second, every GMO consumer (Lidar and Radar) sees BASIC channels. The Lidar silently loses its FULL-level fields.

• If the Lidar render product is created second, the Radar GMO RenderVar inherits FULL. The Radar pipeline does not recognize FULL and produces no auxiliary data at all for that Radar (no rv_ms, no intensity, etc.).

Recommended workarounds:

• Keep all RTX sensors on a stage at the same aux_output_level.

• Order render-product attachment so the sensor whose channels value you want to use is attached last.

• Split sensors with conflicting auxiliary-output requirements across separate stages or SimulationApp instances.

This issue is tracked separately and will be addressed in a future release. Cameras are unaffected: RtxCamera removes the GMO channels attribute during construction because Camera prims do not emit GMO AOVs.

Troubleshooting and Known Issues

Common Issues

Annotators return empty data

Ensure the simulation timeline is playing. RTX Sensor Annotators rely on the timeline to collect data. Also verify that --/app/sensors/nv/lidar/outputBufferOnGPU or --/app/sensors/nv/radar/outputBufferOnGPU is left at its default value of false — annotators read return data from host buffers, so forcing the GPU-resident path will leave the annotator outputs empty.

Point cloud appears to “drag” behind moving objects

If the Lidar rotation rate is slower than the frame rate, accumulated scan data may contain returns from multiple frames. This is expected behavior for rotating Lidars. Consider using per-frame output instead of accumulated scans.

Lidar scans are incomplete

Ensure omni:sensor:Core:accumulateOutputs is set to true on the OmniLidar prim. omni:sensor:tickRate must equal omni:sensor:Core:scanRateBaseHz on the OmniLidar prim. See OmniLidar Tick Rate Must Equal scanRateBaseHz.

Radar simulation does not show Doppler effects

Motion BVH must be enabled for Doppler effects to be modeled correctly. See How to Enable Motion BVH.

Timestamps are discontinuous after pause/resume

This should not occur if multi-tick rendering is enabled. If multi-tick rendering is disabled, the GenericModelOutput AOV timestamp is independent of the animation timeline and continues to increase even when paused.

One sensor’s auxiliary output level overrides another’s

The _replicator:rendervar:GenericModelOutput:channels attribute is currently global per render-product-attach event. See Known issue: last-attach-wins propagation of GMO channels.

Performance Considerations

• VRAM Usage: Each RTX sensor requires GPU memory. Multiple sensors or high-resolution configurations increase VRAM usage.

• Motion BVH: Enabling Motion BVH significantly increases VRAM usage and rendering time.

• Normal Output: Enabling --/app/sensors/nv/lidar/publishNormals=true increases VRAM usage.

• Stable IDs: Enabling --/rtx-transient/stableIds/enabled=true has minimal performance impact but requires additional processing for object ID resolution.

Hardware Requirements

RTX sensors require an NVIDIA RTX GPU with ray tracing support. Performance scales with GPU capabilities, particularly:

• VRAM capacity (affects number of sensors and resolution)

• Ray tracing cores (affects simulation speed)

Related Tutorials

• RTX Lidar Sensors - Publishing RTX Lidar data to ROS2

• RTX Radar Sensors - Publishing RTX Radar data to ROS2

• Multi-Tick Rendering - Multi-tick rendering and 5.x → 6.0 migration

• Debug Drawing Extension API - Visualizing point clouds and geometry

• Util Snippets - Rendering and visualization utilities
