ROS2 Transform Trees and Odometry#

Learning Objectives#

In this example, you:

  • Add a transform publisher to publish the camera positions as part of the transform tree.

  • Publish relative poses of objects.

  • Publish the odometry of a robot.

  • Use the menu shortcut to create transform and Odometry publishers.

  • View the transform tree in Isaac Sim.

Getting Started#

Prerequisite

Transform Tree Publisher#

Assuming you’ve already gone through the ROS 2 camera tutorial and have two cameras on stage already, let’s add those cameras to a transform tree, so that you can track the cameras’ positions in the global frame.

Transform Publisher#

In Isaac Sim 6.0 and later, ROS 2 Publish Transform Tree consumes pre-computed frames from an Isaac Compute Transform Tree node rather than resolving prims internally. See Migrating ROS2 Publish Transform Tree if you are upgrading an older graph.

  1. In the Stage panel, select /World so the new Action Graph is created next to the cameras it publishes for. Open Window > Graph Editors > Action Graph, click New Action Graph, and name it ROS_CameraTF (resulting graph path: /World/ROS_CameraTF). Add an Isaac Compute Transform Tree node and a ROS 2 Publish Transform Tree node. Wire On Playback Tick to the Compute node’s execIn, and Isaac Read Simulation Time to the Publish node’s timeStamp.

  2. Wire the Compute node’s outputs into the Publish node: execOut → execIn, parentFrames → parentFrames, childFrames → childFrames, translations → translations, orientations → orientations.

  3. In the Property tab for the Isaac Compute Transform Tree node, add both Camera_1 and Camera_2 to the targetPrims field.

  4. Examine the transform tree in a ROS 2-enabled terminal: ros2 topic echo /tf. Verify that both cameras are on the transform tree. Move the camera around inside the viewport and observe how the camera’s pose changes.

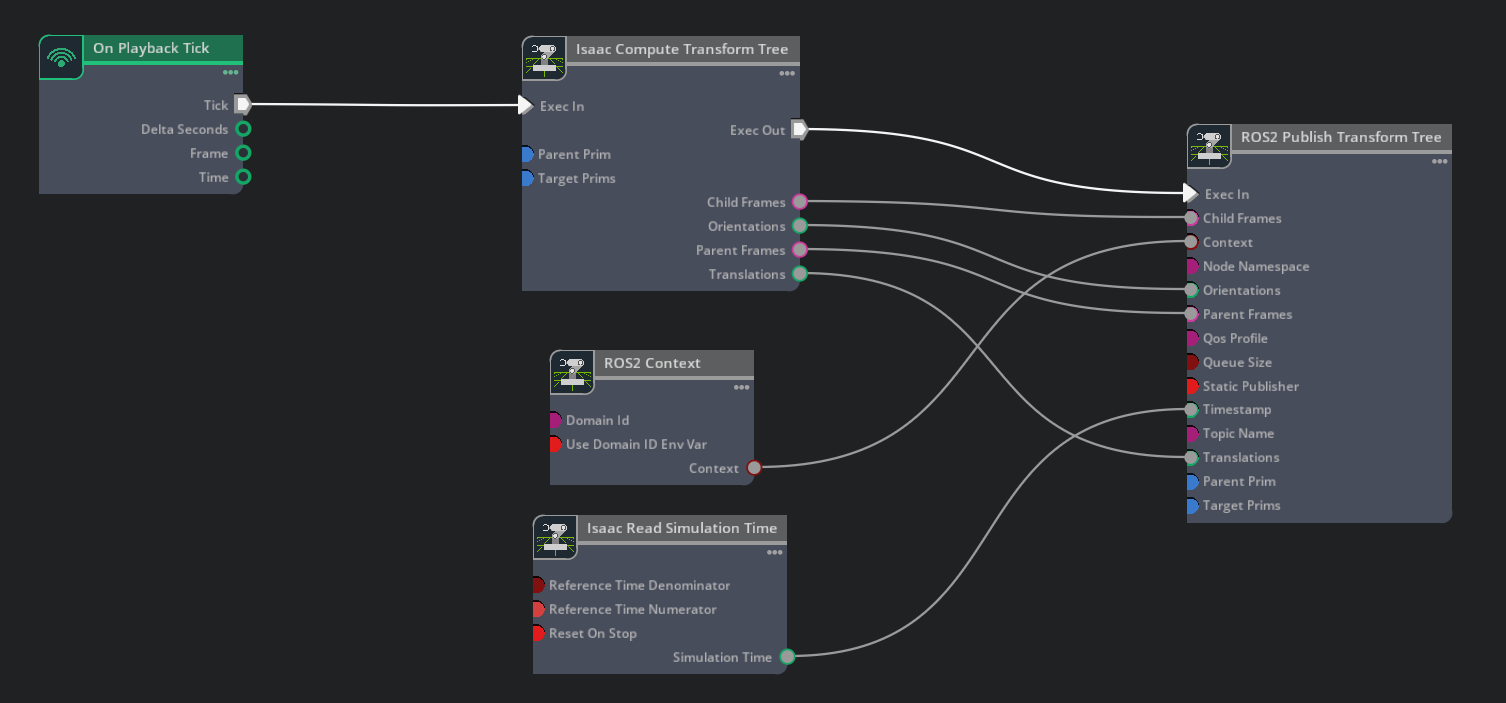

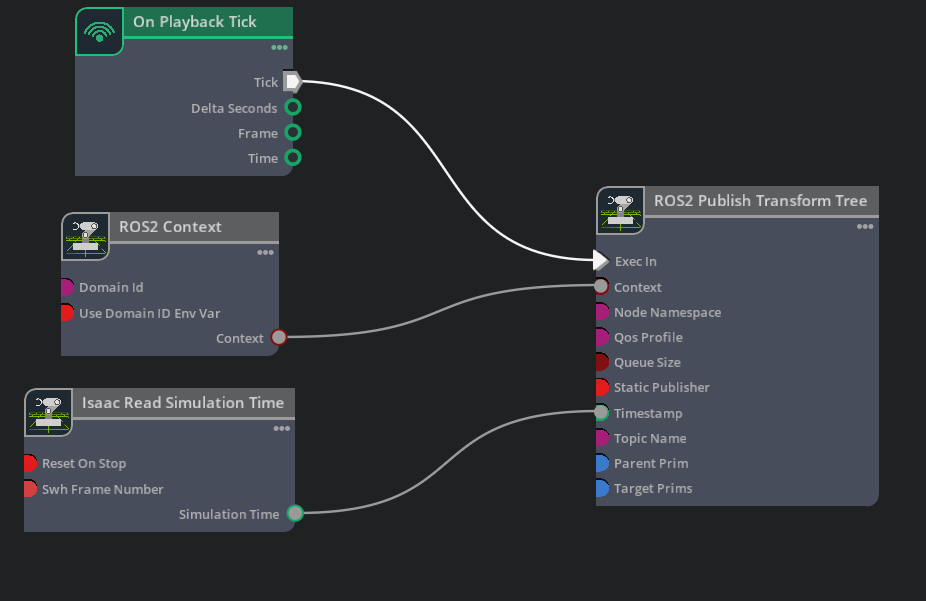

Camera transform tree graph with Isaac Compute Transform Tree feeding ROS 2 Publish Transform Tree

Articulation Transforms#

To get the transforms of each linkage on an articulated robot, add the robot’s articulation root to the targetPrims field on the Isaac Compute Transform Tree node feeding a ROS 2 Publish Transform Tree node. All the linkages subsequent to the articulation root will be published automatically.

Important

If you find that the generated transform tree for an articulated robot chose the wrong link as the root link, use the following step to manually select the articulation root link.

  • Select the robot’s root prim on the Stage Tree, in its Raw USD Properties tab, find the Articulation Root Section. Delete it by clicking on the X on the right upper corner inside the section.

  • Select the desired link on the Stage Tree, inside its Raw USD Properties Tab, click on the +ADD button, and add Physics > Articulation Root.

  • After you change the articulation root, save the file and reload.

Publish Relative Transforms#

By default, the transforms are in reference to the world frame. You can check that the /base_link transform of the Turtlebot is published relative to the /World. If you want to get the transforms relative to something else, such as a camera, set the parentPrim field on the Isaac Compute Transform Tree node. Add Camera_1 in the Compute node’s parentPrim field, Stop and Play the simulation between property changes, and you can observe that the /base_link transform is now relative to Camera_1.

Setting Up Odometry#

To setup odometry for a robot, publish the odometry ROS message and its corresponding transforms.

  1. The Turtlebot3 robot has the Articulation Root API applied on /World/tb3_burger_processed/Geometry/base_footprint/base_link and the IsaacRobotAPI applied on /World/tb3_burger_processed with isaac:physics:robotLinks populated, so no manual articulation-root setup is required.

    • (Optional Exercise) Add /World/tb3_burger_processed (the default) to the targetPrims field on the Isaac Compute Transform Tree node feeding any ROS 2 Publish Transform Tree, and observe that the transforms of all the links of the robot, fixed or articulated, will be published on the /tf topic.

  2. To set up the odometry publisher, in the Stage panel select the main robot prim /World/tb3_burger_processed so the new Action Graph is created directly under it. Robot-state publisher graphs (odometry, TF tree, ground-truth pose, and so on) act on the robot’s articulation as a whole, so they belong at the robot root rather than under a single link. Open the visual scripting editor by going to Window > Graph Editors > Action Graph and click New Action Graph; name it ROS_OdomTF. The resulting graph path is /World/tb3_burger_processed/ROS_OdomTF. Compose an Action Graph that matches the following image.

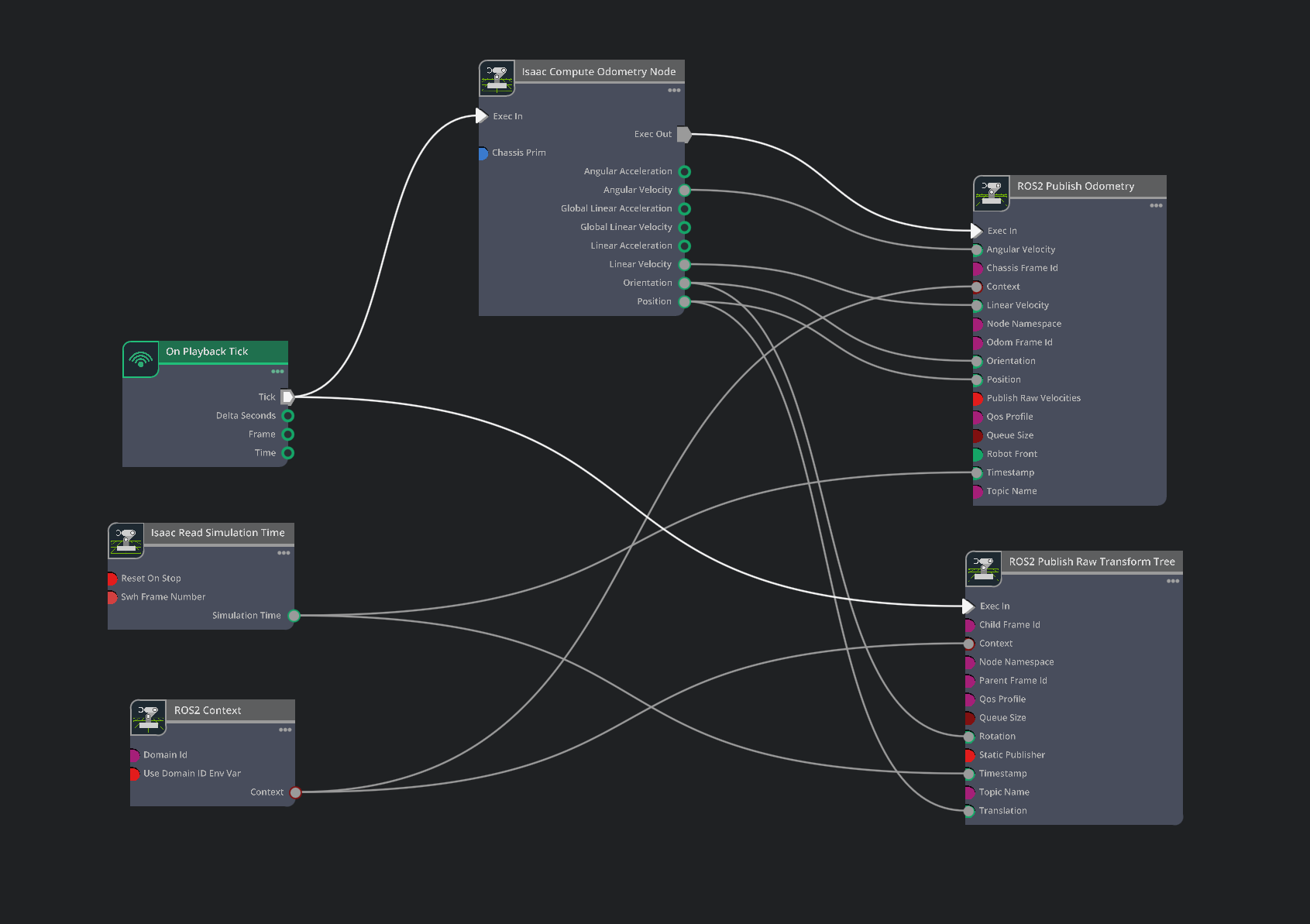

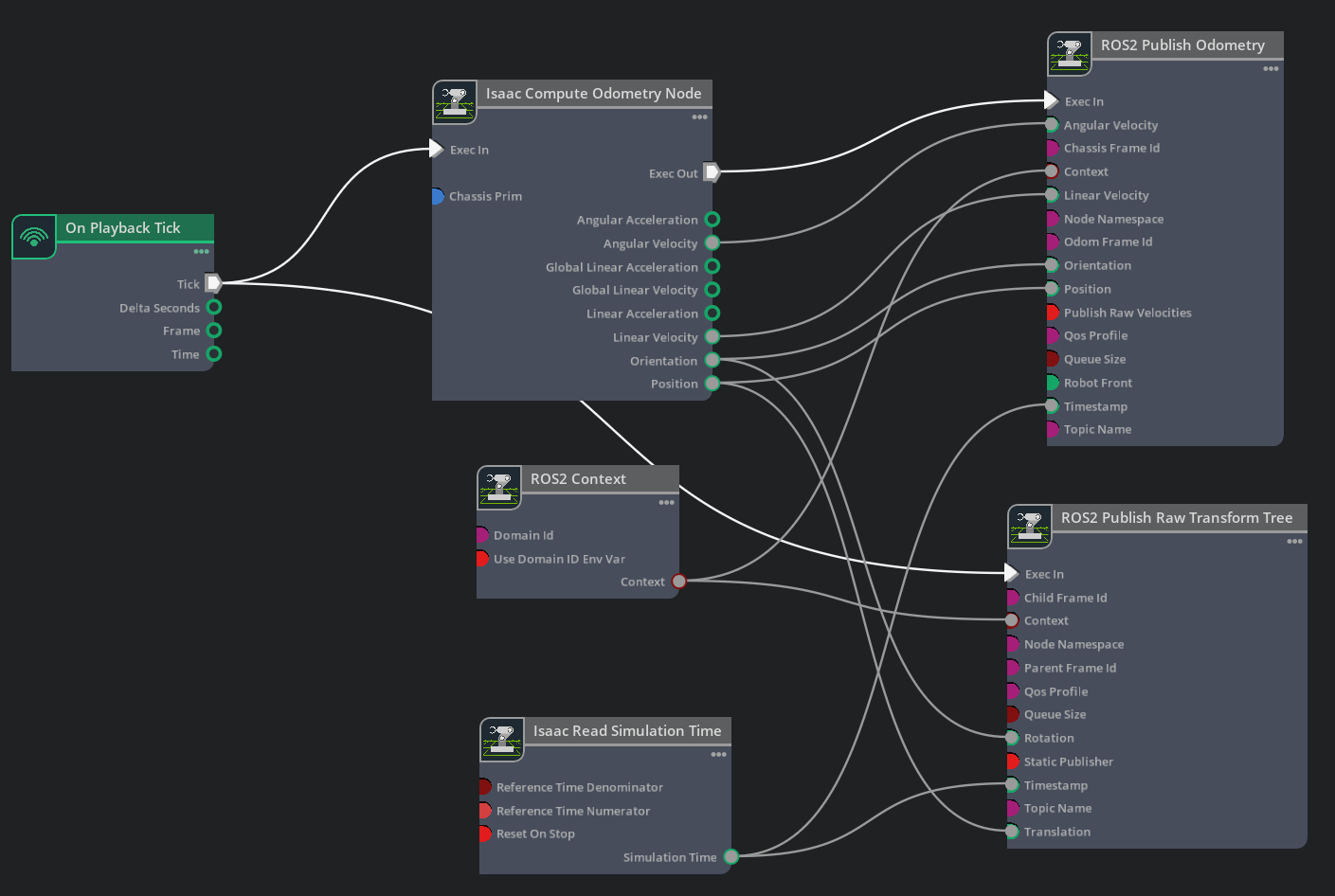

    Odometry Action Graph with Isaac Compute Odometry, ROS 2 Publish Odometry, and ROS 2 Publish Raw Transform Tree

    • In the Property tab for the Isaac Compute Odometry Node:

      • Add the Turtlebot prim (that is, /World/tb3_burger_processed) to its Chassis Prim input field. This node calculates the position of the robot relative to its start location. Its output will be fed into both a publisher for the /odom ROS 2 topic, and a TF publisher that publishes the singular transform from /odom frame to /base_link frame.

    • In the Property tab for the ROS2 Publish Raw Transform Tree node:

      • Set the childFrameId input field to base_link.

      • Set the parentFrameId input field to odom. This will now enable publishing odom -> base_link frames in the transform tree.

    • In the Property tab for the ROS2 Publish Odometry node:

      • Set the chassisFrameId input field to base_link.

      • Set the odomFrameId input field to odom. This will now enable publishing odom -> base_link frames in the transform tree.

Note

The ROS2 Publish Odometry node publishes full 3D velocity information. Both linear velocity and angular velocity are published with all three dimensions (x, y, and z), allowing for a more complete representation of the robot’s motion state.

  1. At this point we are publishing odometry data and our transform tree only consists of odom -> base_link. We would also like to add the relevant robot prims under base_link to the transform tree. To do this, add an Isaac Compute Transform Tree node and a ROS 2 Publish Transform Tree node to the graph. Wire the Compute node’s outputs (execOut, parentFrames, childFrames, translations, orientations) into the matching inputs on the Publish node, and attach the Exec In, Context, and Timestamp fields on the Publish node similarly to the other nodes above.

    • In the Property tab for the Isaac Compute Transform Tree node:

      • Set the parentPrim input field to the path to your base_link inside your Turtlebot Prim: /World/tb3_burger_processed/Geometry/base_footprint/base_link.

      • Set the targetPrims input field to the following prims:

        • /World/tb3_burger_processed/Geometry/base_footprint

        • /World/tb3_burger_processed/Geometry/base_footprint/base_link/base_scan

        • /World/tb3_burger_processed/Geometry/base_footprint/base_link/caster_back_link

        • /World/tb3_burger_processed/Geometry/base_footprint/base_link/imu_link

        • /World/tb3_burger_processed/Geometry/base_footprint/base_link/wheel_left_link

        • /World/tb3_burger_processed/Geometry/base_footprint/base_link/wheel_right_link

      Tip

      Because IsaacRobotAPI is applied on /World/tb3_burger_processed with isaac:physics:robotLinks populated, you can simply add /World/tb3_burger_processed to the targetPrims field instead of the explicit list above and the full articulation chain will be published.

  2. Publish a transform tree that consists of odom -> base_link -> <other robot links>. This next step is only required when you want to have ground truth localization of the robot. Usually, a ROS package for localization, such as Nav2 AMCL, would be responsible for setting the transform between a global frame and the odom frame. To setup ground truth localization, add in another ROS2 Publish Raw Transform Tree node to the graph and attach the Exec In, Context, and Timestamp fields similarly to previous nodes above.

    • In the Property tab for the recently added ROS2 Publish Raw Transform Tree node:

      • Set the childFrameId input field to odom.

      • Set the parentFrameId input field to world. This will now enable publishing world -> odom frames in the transform tree.

      • Leave Translation and Rotation fields detached as this will use the defaults of (0.0, 0.0, 0.0) translation vector (XYZ) and (1.0, 0.0, 0.0, 0.0) rotation quaternion (IJKR). This rotation and translation correspond to the robot’s Start pose. If the robot starts in a different position, these fields would have to be updated accordingly to match that pose.

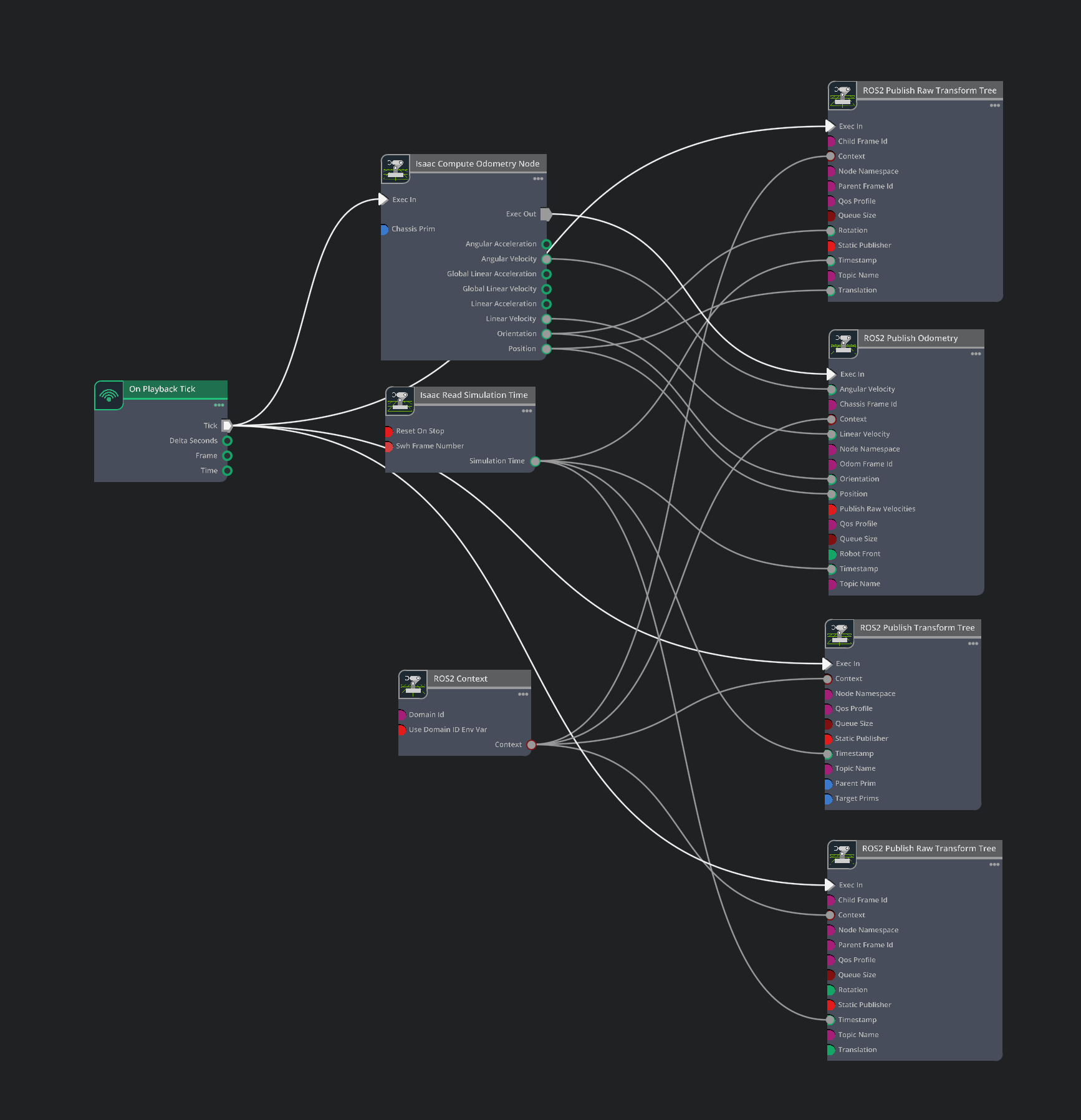

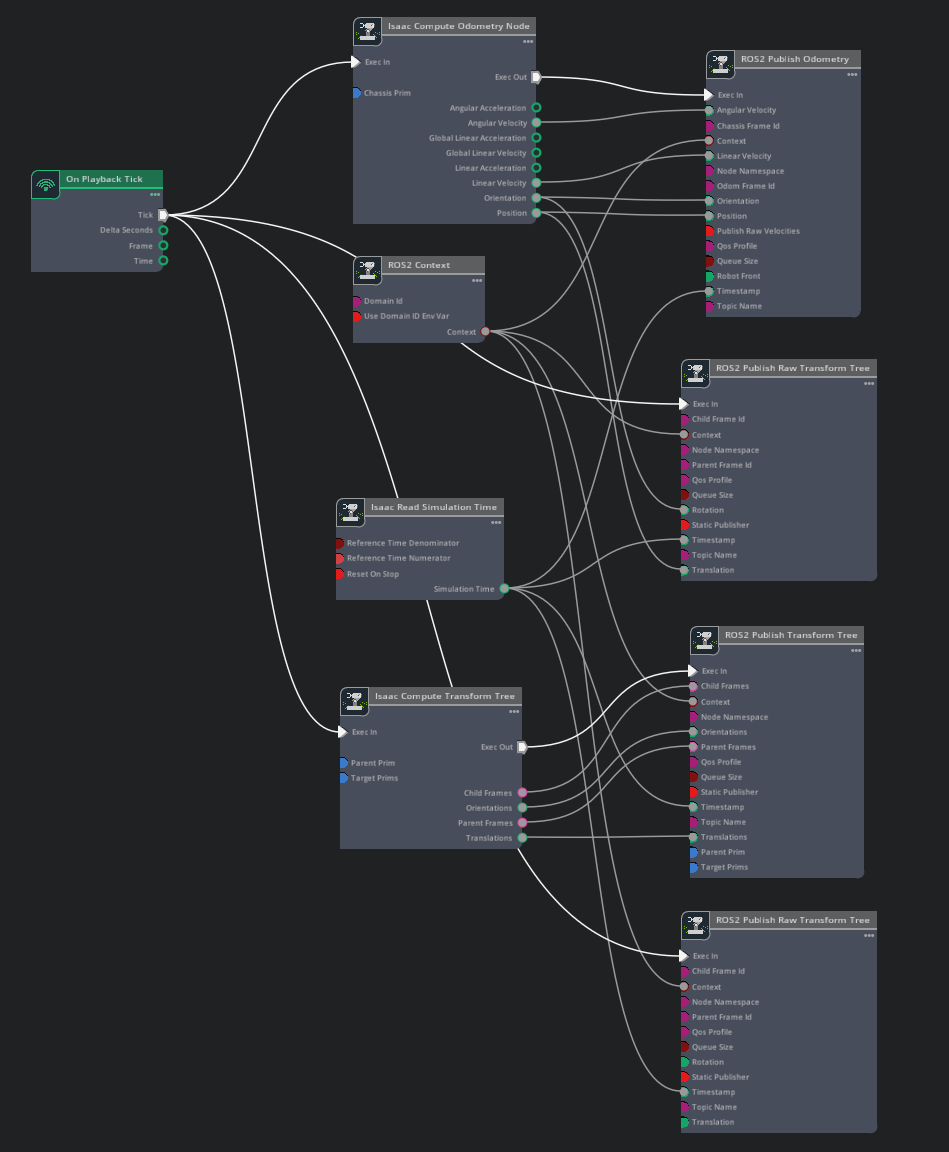

Verify that your final graph is similar to the following:



Press Play and in a new ROS-sourced terminal run the following command:

ros2 run tf2_tools view_frames

Open the generated PDF file to observe the transform tree that you are publishing from Isaac Sim. Verify that it is similar to the one below.



For an example of all the publishers and subscribers setup in the Turtlebot ROS2 tutorials, open the scene which can be found by going to the Isaac Sim Content browser and clicking Isaac Sim>Samples>ROS2>Scenario>turtlebot_tutorial.usd.

Graph Shortcuts#

The following menu shortcuts build transform and odometry graphs:

TF Publisher

For transform Publisher, go to Tools > Robotics > ROS 2 OmniGraphs > TF Publisher . If you don’t observe any ROS2 graphs listed, you need to first enable the ROS2 bridge. A popup box will appear asking for the parameters needed to populate the graphs. You must provide:

  • the Graph Path and Node Namespaces if you have one.

  • the Target Prim that contains the articulation root API if you want to get the full articulation chain in the transform, or the individual prims if you want to publish a single transform of the prim.

  • the parent prim that is used as the reference frame for the transforms. It is defaulted to "/World", but it could be any frame on stage.

If you already have a transform publisher and want to add more prims to publish, as long as they have the same reference prim, then you can check both the “Add to an existing graph” and “Add to an existing node” boxes, give the graph and node paths, and the new target prim to add to the existing graph. If you want to add to the same graph but have different reference prim, it will create a new transform node and use the existing tick, content, and timestamp nodes if they exist.

Odometry Publisher

For Odometry Publisher, go to Tools > Robotics > ROS 2 OmniGraphs > Odometry Publisher. A popup box will appear asking for the parameters needed to populate the graphs. You must provide:

  • the Graph Path and Node Namespaces if you have one.

  • the prim that contains the Articulation Root API, and the chassis prim, whose origin is used to calculate odometry.

Viewing the Transform Tree in Isaac Sim#

The Isaac Sim’s ransform viewer allows you to draw on the simulated scene itself in the viewport window and on the transform tree published (under /tf and /tf_static topics) by Isaac Sim and/or external ROS 2 nodes.

  1. To begin, enable the Isaac Sim’s transform viewer extension using the Extension Manager by searching for isaacsim.ros2.tf_viewer.

  2. After the extension is enabled, go to the top menu bar and click on Window > TF Viewer to open the transform viewer control window.

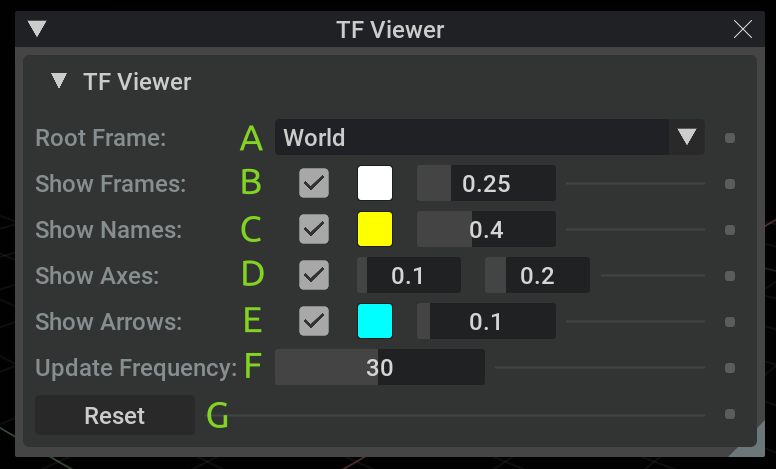

    ../_images/isim_4.5_ros_tut_gui_ros2_tf_viewer_window_legend.png

    Window components:

    1. Frame on which to compute the transformations.

    2. Whether the frames (markers) are displayed. Marker color. Marker size (relative).

    3. Whether the frames’ names are displayed. Text color. Text size (relative).

    4. Whether the frames’ axes are displayed (RGB -> XYZ axes). Axis length (in meters). Axis thickness (relative).

    5. Whether to show the connection between the child frames and the parent frames. Line color. Line thickness (relative).

    6. Frame transformation update frequency (Hz). Higher frequency might reduce simulation performance.

    7. Reset transformation tree (clear transformation buffers). Useful to clean TF_OLD_DATA warning, for example.

    Note

    Closing the transform viewer window stops the display and clears the viewport drawings.

  3. To start the visualization, choose the appropriate root frame on which to compute the transformations (for example, World or world, according to the published transform tree specification).

    Note

    If the visualization (or a specific root frame) does not show even though there are publications under /tf and/or /tf_static topics:

    1. Make sure the simulation is running before opening the TF Viewer window

    2. Close and reopen the TF Viewer window to update the transform subscriptions

    3. Press the Reset button on the TF Viewer window to reset the transformation tree

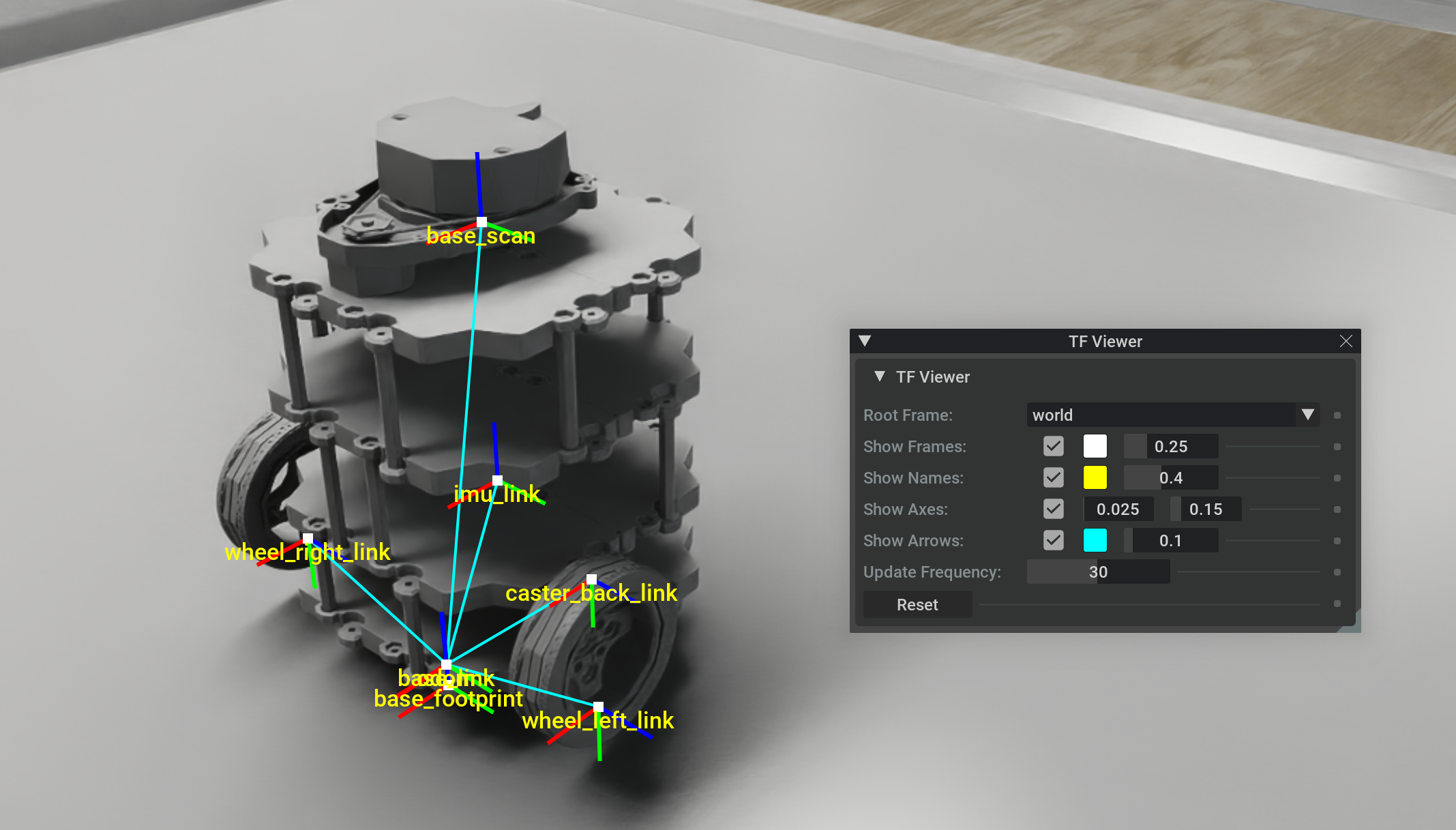

    ../_images/isim_4.5_ros_tut_gui_ros2_tf_viewer_example.png

Multiple Sensors in RViz2#

Note

In Windows 11, depending on your machine’s configuration some bandwidth-heavy topics might not be available to visualize in RViz2 in WSL.

To display multiple sensors in RViz2, there are a few things that are important to make sure all the messages are synced up and timestamped correctly.

Simulation Timestamp

Use Isaac Read Simulation Time as the node that feeds the timestamp into all of the publishing nodes’ timestamps.

ROS 2 clock

To publish the simulation time to the ROS 2 clock topic, you can setup the graph as shown in the Running ROS 2 Clock Publisher tutorial:

ROS2 Clock publisher

frameId and topicName

  1. To visualize all the sensors as well as the tf tree all at once inside RViz, the frameId and topicNames must follow a certain convention for RViz to recognize them all. The table below roughly describes these conventions. To observe the multi-sensor example below, consult the USD asset, which can be found by going to the Isaac Sim Content browser and clicking Isaac Sim>Samples>ROS2>Scenario>turtlebot_tutorial.usd.

    Source

    frameId

    nodeNamespace

    topicName

    Type

    Camera RGB

    (device_name)_(data_type)

    (device_name)/(data_type)

    image_raw

    rgb

    Camera Depth

    (device_name)_(data_type)

    (device_name)/(data_type)

    image_rect_raw

    depth

    Lidar

    base_scan

    scan

    laser scan

    Lidar

    base_scan

    point_cloud

    point_cloud

    TF

    tf

    tf

  2. To observe the RViz image below, make sure the simulation is playing. In a ROS2-sourced terminal, open with the configuration provided using the command:

    ros2 run rviz2 rviz2 -d <ros2_ws>/src/isaac_tutorials/rviz2/camera_lidar.rviz

After the RViz window finishes loading, you can enable and disable the sensor streams inside the Display panel on the left hand side.

Example Multisensor RViz2 configuration

Important

Ensure that the use_sim_time ROS2 param is set to true after running the RViz2 node. This ensures that the RViz2 node is synchronized with the simulation data especially when RViz2 interpolates position of Lidar data points. Set the parameter using the following command in a new ROS2-sourced terminal:

ros2 param set /rviz use_sim_time true

Summary#

This tutorial covered:

  • Transform publisher to publish sensors and full articulation trees

  • Raw transform publisher to publish individual transforms

  • Odometry publisher and transform publishers setup for Turtlebot

  • Show the transform Viewer in the Isaac Sim’s viewport

  • Full 3D velocity (x, y, z) publishing for both linear and angular velocity in the odometry message

Next Steps#

Continue on to the next tutorial in our ROS2 Tutorials series, ROS2 Setting Publish Rates to learn how to set publish rates for ROS2 OmniGraph nodes.

Further Learning#

  • Auto-generated topic namespaces — including the special “highest ancestor wins” rule used by ROS 2 Publish Transform Tree — are covered in Automatic ROS 2 Namespace Generation.
