ROS2 Setting Publish Rates#

Learning Objectives#

In this example, you learn to:

  • Set the simulation frame rate in Isaac Sim.

  • Set different publish rates for different sensor types (IMU, RTX Lidar, Camera) publishing to ROS 2 simultaneously.

Getting Started#

Prerequisite

Setting Publish Rates with OmniGraph#

Action Graphs are ticked every simulation frame and therefore OmniGraph nodes are bound to the factors of the simulation rate. This tutorial explains how to configure publishing ROS2 nodes at these factors of simulation.

Non-RTX Sensors#

Sensors which do not rely on RTX rendering, such as IMU sensors, can be configured to publish at a different rate than the simulation rate using the Isaac Simulation Gate node.

  1. Open the turtlebot simple room scene, which can be found by going to the Isaac Sim Content browser and clicking Isaac Sim>Samples>ROS2>Scenario>turtlebot_tutorial.usd.

  2. Create an IMU sensor parented under the imu_link prim. There are two ways to add an IMU sensor, and they place it at different locations in the stage:

    • Right-click menu (recommended): In the Stage panel, right-click the prim /World/turtlebot3_burger_processed/Geometry/base_footprint/base_link/imu_link and choose Create > Isaac > Sensors > Imu Sensor from the context menu. This parents the sensor directly under the selected imu_link prim.

    • Menu bar: The top Create > Sensors > Imu Sensor menu-bar entry creates the sensor at the stage root instead. If you use this path, drag the resulting sensor prim under imu_link in the Stage panel so the hierarchy matches the rest of this tutorial.

    Either way, verify that the Imu sensor ends up under the imu_link prim before continuing.

  3. Create a new Action Graph inside /World/turtlebot3_burger_processed/Geometry/base_footprint/base_link/imu_link prim and name it ROS_IMU (the placement of the graph is important for Automatic ROS 2 Namespace Generation). To do this, select the prim at /World/turtlebot3_burger_processed/Geometry/base_footprint/base_link/imu_link and then create an Action Graph by going to Window > Graph Editors > Action Graph.

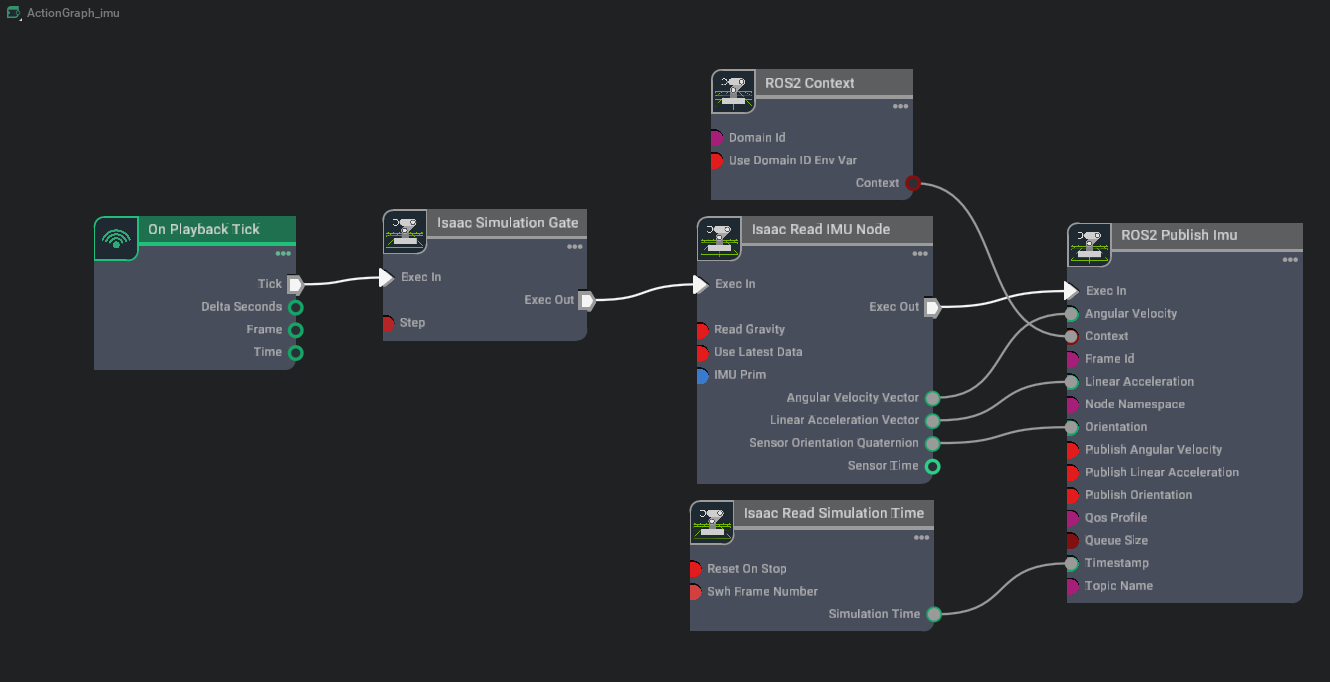

  4. Make the graph for IMU including the simulation gate node and attach the graph as shown below.

    Turtlebot IMU Graph

    Set the following attributes for each node as such:

    • In the Property tab for the Isaac Simulation Gate node:

      • Set the step attribute to 2. Having a step size of 2 means that downstream nodes will be ticked every other frame.

    • In the Property tab for the Isaac Read IMU Node:

      • Add the IMU sensor prim /World/turtlebot3_burger_processed/Geometry/base_footprint/base_link/imu_link/Imu_Sensor to its imuPrim input field.

    • In the Property tab for the ROS2 Publish Imu node:

      • Set the frameId attribute to imu_link. This will match the imu_link frame used in the TF tree that is already being published by the TF publisher, which you created in Setting Up Odometry.

RTX Sensors#

Cameras and RTX Lidars can be configured to publish at a different rate than the simulation rate using the omni:sensor:tickRate attribute on the sensor prim, described in Configuring Per-Sensor Tick Rates.

Warning

Previous versions of Isaac Sim used the frameSkipCount parameter on ROS2 helper nodes to control sensor publish rates. This is now deprecated. If frameSkipCount is set to a non-zero value, and the corresponding sensor prim has omni:sensor:tickRate set to a non-zero value, message publishing frequency may be unexpected as the frameSkipCount may not align periodically with the sensor’s tick rate. See Configuring Per-Sensor Tick Rates, and Multi-Tick Rendering for the full migration guide.

  1. Select the 2D Lidar prim /World/turtlebot3_burger_processed/Geometry/base_footprint/base_link/base_scan/Example_Rotary_2D (the OmniLidar referenced as cameraPrim on the Isaac Create Render Product node feeding /World/turtlebot3_burger_processed/Geometry/base_footprint/base_link/base_scan/ROS_LidarRTX/LaserScanPublish). In the Property tab:

    • Set omni:sensor:tickRate to 5. The laser scan publishes once per tick, so this yields a publish rate of R_lidar = 5 Hz (independent of the simulation rate, as long as the simulation rate is at least 5 Hz).

    • Set omni:sensor:Core:scanRateBaseHz to 5 to match. The two values must be equal so the Lidar accumulates a full scan per tick instead of falling back to per-frame partial scans (see OmniLidar Tick Rate Must Equal scanRateBaseHz). The shipped Example_Rotary_2D asset defaults to 10, so you must lower it.

  2. Because you don’t need to publish a point cloud in this tutorial, select the Ros2RTXLidarHelper node for point cloud and disable it by unchecking enabled attribute in /World/turtlebot3_burger_processed/Geometry/base_footprint/base_link/base_scan/ROS_LidarRTX/PointCloudPublish.

  3. Open the camera Action Graph /World/ActionGraph_camera. Disable the second camera render product by unchecking enabled attribute in /World/ActionGraph_camera/isaac_create_render_product_01.

  4. Select the camera prim /World/Camera_1 (the Camera referenced as cameraPrim on the Isaac Create Render Product node feeding both /World/ActionGraph_camera/ros2_camera_helper and /World/ActionGraph_camera/ros2_camera_info_helper). Apply the OmniSensorAPI schema and set omni:sensor:tickRate to 15 so that both /camera_1/rgb/image_raw and /camera_1/rgb/camera_info publish at R_cam = 15 Hz (independent of the simulation rate, as long as the simulation rate is at least 15 Hz). Run the following from the Script Editor (Window > Script Editor) to apply the schema and set the rate on each camera:


import isaacsim.core.experimental.utils.prim as prim_utils

# Cameras created from the Create > Camera menu lack the OmniSensorAPI schema,
# so omni:sensor:tickRate is unavailable until the schema is applied. Apply it to
# each existing camera, then set the publish rate (Hz).
for path in ("/World/Camera_1", "/World/Camera_2"):
    camera_prim = prim_utils.get_prim_at_path(path)
    camera_prim.ApplyAPI("OmniSensorAPI")
    camera_prim.GetAttribute("omni:sensor:tickRate").Set(15)

    Note

    Cameras created from the top Create > Camera menu bar (as in the prerequisite ROS 2 Cameras) do not carry the omni:sensor:tickRate attribute by default, because they lack the OmniSensorAPI schema; the shipped turtlebot_tutorial.usd already has the schema applied to /World/Camera_1 and /World/Camera_2. Once the schema is applied, you can also adjust omni:sensor:tickRate directly in the Property tab.

  5. You don’t need to publish depth images from Camera1 for this tutorial. Disable the camera helper for depth images by unchecking enabled attribute in /World/ActionGraph_camera/ros2_camera_helper_02.

Checking ROS 2 Publish Rate#

  1. Press Play to start the simulation.

  2. Check the publish rate for each ROS topic using the command:

    ros2 topic hz /topic_name

    Where /topic_name is replaced by each sensor topic listed below.

    The publish rates are estimated. On a high-performance machine the maximum FPS would be closer to the target_hz that was set in the previous section (default of 60 Hz).

  3. The topics fall into two categories that scale differently with target_hz:

    • OnPlaybackTick-driven publishers (gated by app updates):

      • /clock: target_hz (~60 Hz default; one message per app update).

      • /imu: target_hz / k_imu (~30 Hz default; k_imu = 2 is the Isaac Simulation Gate step you set earlier).

    • Multi-tick-scheduled RTX sensors (gated by /ExternalSimulationTime and the per-sensor omni:sensor:tickRate, when the simulation runs in real time - i.e. the snippet from Setting the Simulation Rate (Advanced) was used):

      • /scan: min(R_lidar, target_hz) = 5 Hz (constant in target_hz as long as target_hz >= 5).

      • /camera_1/rgb/image_raw: min(R_cam, target_hz) = 15 Hz (constant in target_hz as long as target_hz >= 15).

      • /camera_1/rgb/camera_info: same as RGB, because both helpers share the same Camera prim’s tick rate.

    The file that contains all of the steps in this tutorial can be opened by going to the Isaac Sim Content browser and clicking Isaac Sim>Samples>ROS2>Scenario>turtlebot_tutorial_multi_sensor_publish_rates.usd. After opening the file, remember to run the steps in Setting the Simulation Rate (Advanced) to set the target simulation rate.

    Note

    If you observe that the /camera_1/rgb/image_raw topic is publishing at a slower rate than anticipated, it might be because the large size of each image message is causing bottlenecks in network traffic or DDS queue management. To improve the publish rate, you can try reducing the dimensions of the render product resolution. This can be done by going to the render product node that is attached to the image publisher /World/ActionGraph_camera/isaac_create_render_product and modifying the dimensions before replaying the scene.

Setting the Simulation Rate (Advanced)#

Isaac Sim has three rate-related clocks: the physics scene’s step rate (UsdPhysicsScene.timeStepsPerSecond), the timeline’s per-tick dt (stage.timeCodesPerSecond combined with the timeline’s targetFramerate), and the application’s run-loop tick rate (/app/runLoops/main/rateLimitFrequency). For real-time playback you want all three set coherently to the same value. isaacsim.core.simulation_manager.SimulationManager.setup_simulation() configures the physics scene’s step rate; isaacsim.core.rendering_manager.RenderingManager.set_dt() configures the timeline and run-loop together. Use them as a pair.

Warning

In Isaac Sim 6.0, there is a known fatal crash in the full UI app when playing the simulation after modifying the simulation’s physics scene’s step rate and timeline’s per-tick dt from their default values of 60.0 and then playing the simulation. This will be fixed in a future release.

Paste the following snippet into a standalone Python script in the Isaac Sim directory, eg. test_ros2_publish_rates.py.

from isaacsim import SimulationApp

app = SimulationApp({"headless": False})

import carb
import isaacsim.core.experimental.utils.app as app_utils
import isaacsim.core.experimental.utils.stage as stage_utils
from isaacsim.core.rendering_manager import RenderingManager
from isaacsim.core.simulation_manager import SimulationManager
from isaacsim.storage.native import get_assets_root_path

app_utils.enable_extension("isaacsim.ros2.bridge")
app.update()

assets_root_path = get_assets_root_path()
stage_utils.open_stage(
    assets_root_path + "/Isaac/Samples/ROS2/Scenario/turtlebot_tutorial_multi_sensor_publish_rates.usd"
)

# Set physics, timeline, and run-loop rates coherently before pressing Play.
# Assumes `/app/runLoops/main/rateLimitEnabled` is true (default in the full
# Isaac Sim GUI app; false in `isaacsim.exp.base.kit` / standalone Python). If
# it is false, set it to True first or the loop will tick unthrottled. See the
# `RenderingManager.set_dt` docstring for the full effect list.
target_hz = 60
SimulationManager.setup_simulation(dt=1.0 / target_hz)
RenderingManager.set_dt(1.0 / target_hz)

app_utils.play()

while app.is_running():
    app.update()

app_utils.stop()
app.close()

Then, run the script using the command:

./python.sh test_ros2_publish_rates.py \
--/app/runLoops/main/rateLimitEnabled=true \
--/app/runLoops/main/rateLimitFrequency=60 \
--/app/runLoops/main/manualModeEnabled=true

This will force the simulation to run at 60 frames per wall-clock second (FPS).

In a separate terminal window with ROS2 installed and enabled, check the publish rate for each ROS topic using the command:

ros2 topic hz /topic_name

If you change target_hz in the script, then rerun it with the command provided above, each topic scales differently because the topics are gated by two different mechanisms:

  • OnPlaybackTick-driven helpers (/clock publisher and the IMU graph through its Isaac Simulation Gate) fire once per app update, so their wall-clock rate scales linearly with target_hz (divided by the gate step for IMU).

  • Multi-tick-scheduled RTX sensors (/scan, /camera_1/rgb/image_raw, /camera_1/rgb/camera_info) fire when the renderer’s simulation time has advanced by 1 / omni:sensor:tickRate, so they hold at the configured Hz independently of target_hz - until target_hz drops below the configured tick rate, at which point the sensor is capped at one tick per app update. See Architecture: Timeline, Physics, and the Renderer for the underlying machinery.

For the tutorial setup (R_lidar = omni:sensor:tickRate = 5 on the Lidar prim, R_cam = omni:sensor:tickRate = 15 on the Camera prim, IMU gate step = 2), the wall-clock publish rates are:

target_hz (Hz)

/clock

/imu

/scan

/camera_1/rgb/image_raw, /camera_1/rgb/camera_info

30

30

15

5

15

60

60

30

5

15

120

120

60

5

15

240

240

120

5

15

10

10

5

5

10 (capped at target_hz)

The publish rates are estimated. On a high-performance machine the maximum FPS would be closer to the target_hz that was set in the previous section (default of 60 Hz).

Important

Actual frame rate is dependent on your machine’s performance. If the renderer cannot sustain target_hz, sensor publish rates will fall proportionally. For the relationship between the three clocks and what happens when they fall out of sync (slow-motion, fast-forward), see Architecture: Timeline, Physics, and the Renderer.

The general formulas are:

clock_hz   = target_hz
imu_hz     = target_hz / k_imu                 # k_imu = Isaac Simulation Gate step (= 2 here)
scan_hz    = min(R_lidar, target_hz)
camera_hz  = min(R_cam, target_hz)

Note

The /camera_1/rgb/image_raw (and /camera_1/rgb/camera_info) publish rate may fall below the table’s predicted value even when the multi-tick scheduler is firing at the configured R_cam Hz. The RGB image path is computationally heavier than the other topics: the render product cost scales with resolution, and the published image size also stresses the DDS / network layer. If the observed rate is below R_cam, the two knobs to try first are (1) lowering the render product resolution on /World/ActionGraph_camera/isaac_create_render_product, and (2) lowering omni:sensor:tickRate on the /World/Camera_1 prim to reduce render frequency. This complements the network/DDS note above.

Note

If you change omni:sensor:tickRate on the Lidar prim, you must change omni:sensor:Core:scanRateBaseHz to match. The two values must be equal or the Lidar emits partial scans every frame instead of accumulating a full scan per tick; see OmniLidar Tick Rate Must Equal scanRateBaseHz.

Troubleshooting#

If you observe much different publish rates from the target simulation frame rate, try the following:

  1. Try running Isaac Sim with factory settings to clear any persistent simulation frame rate settings:

    ./isaac-sim.sh --reset-user

  2. Check your computer’s CPU usage to identify bottlenecks. If Isaac Sim is exhibiting incredibly high usage try running with Fabric enabled:

    ./isaac-sim.fabric.sh --reset-user

    Important

    The above command is experimental and not all functionality of Isaac Sim is supported there. However you might observe better overall performance. You only need to use the --reset-user flag the first time running with Fabric.

Summary#

This tutorial covered:

  • Setting a coherent simulation rate using SimulationManager.setup_simulation and RenderingManager.set_dt from the Python interface.

  • Setting different publish rates for different sensor types: an Isaac Simulation Gate for non-RTX sensors (IMU), and omni:sensor:tickRate on the sensor prim for RTX sensors (Lidar, Camera).

Next Steps#

Continue on to the next tutorial in our ROS2 Tutorials series, ROS 2 Quality of Service (QoS) to learn about setting QoS Profiles for ROS 2 OmniGraph nodes in NVIDIA Isaac Sim.
