Warehouse Creator Extension

The Warehouse Creator is an interactive plan builder that converts a 2D grid layout into a USD warehouse built from the Modular Warehouse asset pack. Sketch the floor plan in a top-down editor, place tiles from a block library, and generate the corresponding USD prims on the active stage.

The feature ships as two extensions:

• omni.warehouse.creator.api — headless logic (grid engine, auto-tiling, plan-to-stage sync, and the column editing controller). Use it from scripts and tests with no UI dependency.

• omni.warehouse.creator.ui — the Warehouse Builder window, toolbar, block library palette, variant property widget, and column placement workflow.

Installing and enabling the extension

1. Open Window > Extensions from the top menu.

2. Search for omni.warehouse.creator.ui in the Extension Manager window.

3. Click Install or Update if needed.

4. Toggle the extension on. Enable Autoload to start it on every launch.

The UI extension pulls in omni.warehouse.creator.api automatically. Enabling the API extension on its own is supported for headless / scripted workflows.

Opening the editor

Open Window > Warehouse Creator to show the Warehouse Builder window. The window contains:

• An overhead 2D viewport centered on the grid origin.

• A floating toolbar along the bottom of the viewport with all editing tools.

• A block library palette docked to the side of the window.

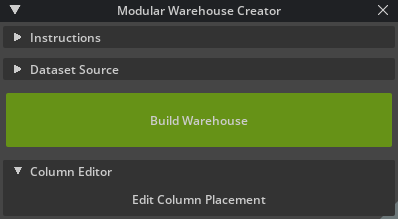

• A Warehouse Creator panel with the Generate Warehouse button and the collapsible Column Editor section.

The window builds on first open and stays in memory after you close it, so reopening is instantaneous.

Configuring the dataset source

Configure asset paths from Edit > Preferences > Warehouse Creator. The page exposes:

Setting	Purpose
Cell Size (world units)	World-space size of a single grid cell. Controls both the editor grid and the generated tile spacing.
Wall Height (world units)	Height applied to the wall asset preset.
Center (floor) Asset	File name of the center/floor USD asset relative to the asset root.
Wall Asset	File name of the wall USD asset relative to the asset root.
Asset Root Path	Local or Nucleus root folder containing the warehouse assets. Point this at your downloaded Isaac Sim assets folder for the fastest editor and generation experience.
Cloud Assets URL	HTTPS fallback used when Asset Root Path is unset or unreachable.

Note

The Cell Size, Wall Height, and asset name settings depend on the asset pack you use. The default values match the Isaac Sim assets pack; for a custom pack, set the values manually. An asset pack is a collection of Center/Floor and Wall assets that share a variant system exposing every available option of each asset type as a reference. See the Modular Warehouse pack for an example of how to structure one.

For local performance, download the Isaac Sim assets pack (see Latest Release) and point Asset Root Path at [Isaac Sim Assets Path]/Isaac/Environments/Modular_Warehouse_New/. The block library palette and the warehouse generator both read from this location.

Editor workflow

The editor operates on a logical grid. At generation time, each occupied cell becomes a center/floor prim and each exposed cell edge becomes a wall prim. The generator omits walls between two adjacent occupied cells.

The toolbar uses three categories of buttons:

• Modal tools — mutually exclusive. Activating one deactivates the previously active modal tool.

  • Select

  • Move

  • Rotate

  • Draw

  • Line

  • Box

  • Erase

• Toggles — coexist with any modal tool. Activating symmetry mirrors every drawing or erasing action across the chosen axis.

  • Symmetry Horizontal

  • Symmetry Vertical

• Immediate actions — one-shot operations. They execute on click without becoming the active tool.

  • Flip Horizontal

  • Flip Vertical

  • Group

  • Ungroup

  • Merge

  • Subtract

  • Zoom In

  • Zoom Out

Selection-dependent actions ( Flip, Group, Ungroup, Merge, and Subtract) are disabled in the toolbar when the current selection does not meet their requirements.

Drawing tiles

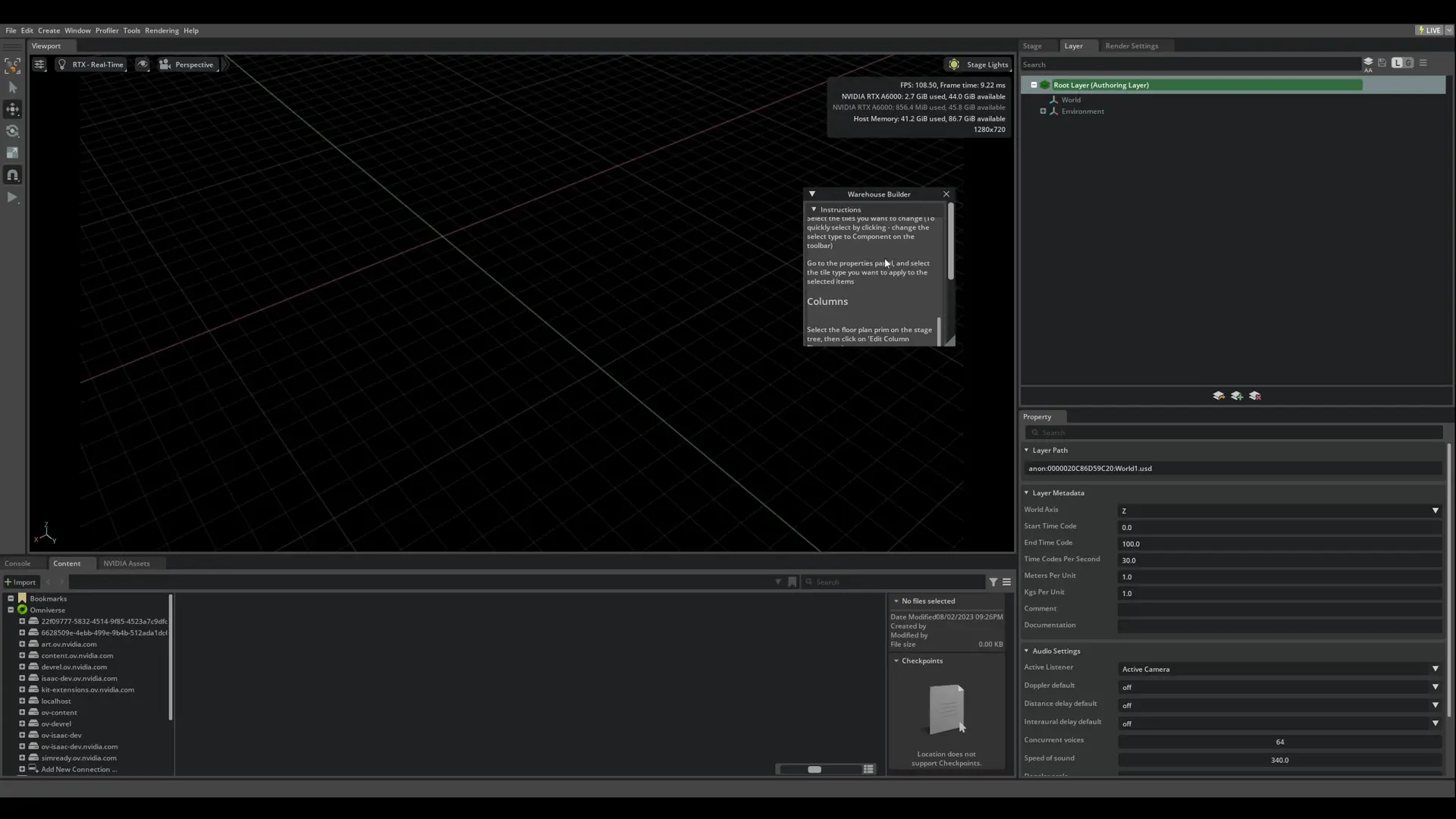

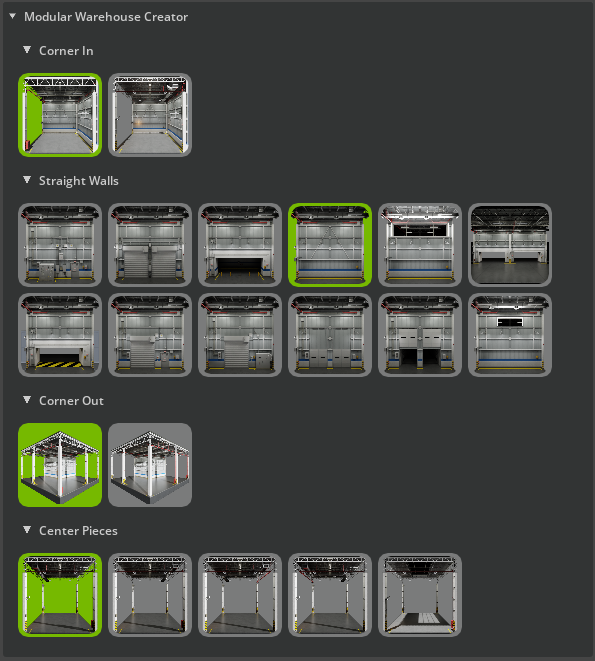

1. Pick an asset in the Block Library Palette. The next drawing operation places this asset as the manual tile.

2. Activate Draw for free-form painting, Line for a straight-line drag, or Box for filled rectangles.

3. Click and drag inside the viewport to add cells. Erase removes cells with the same gestures.

To drop a single tile at the cursor without changing the active tool, drag a palette card directly onto the viewport.

Symmetry Horizontal and Symmetry Vertical mirror every drawing or erasing action across the world origin on the selected axis. Toggle them at any time without leaving the active drawing tool.

Selecting and editing

• Select — click a cell to select it. Click and drag to draw a selection box. Selecting a grouped cell selects the entire group.

• Move — drag selected cells or groups to a new grid location.

• Rotate — click to rotate the selection 90 degrees clockwise. Use the keyboard shortcuts below for finer control.

• Flip Horizontal / Flip Vertical — mirror the selection across the corresponding axis in place.

Hotkeys

The window owns its hotkey scope, so the shortcuts only fire while the cursor is over the Warehouse Builder window.

Shortcut	Action
Delete / Backspace	Delete the current selection (cells and groups).
Esc	Clear the current selection.
Ctrl+Z / Ctrl+Y	Undo / redo the last grid command.
Left / Right	Rotate the selected cells 90 degrees counter-clockwise / clockwise. Hold Shift to rotate in place.
Space	Cycle to the next tool (when enable_hotkeys is enabled in the extension settings).

Grouping cells

A group treats a set of cells as a single floating object. You can move, rotate, and flip a group as a unit, and the generator emits each group as a separate warehouse root prim.

• Group — combine the selection into a new group. Requires at least two ungrouped cells or existing groups.

• Ungroup — stamp a selected group’s cells back onto the grid as ungrouped cells.

• Merge — combine two or more selected groups into one.

• Subtract — remove the cells of later-selected groups from the first-selected group.

At generation time, each group becomes its own /Warehouse_group_<id> root prim with walls derived from its boundary. Adjacent groups can sit next to ungrouped cells without sharing walls.

Variant property widget

The generator emits two tile types — Wall and Center — and each tile ships with a set of visual variants such as a loading dock, an access panel, or a window. After generation, select one or more tile prims in the stage and use the Warehouse Tiles section of the Property panel to switch the variant on every selected tile of that type.

Tip

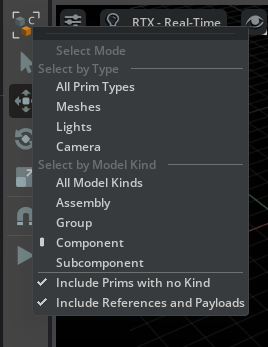

In the viewport, set Select Mode to Component (right-click the toolbar) so individual tiles are selectable instead of the whole warehouse hierarchy.

Generating the warehouse

The Generate Warehouse button in the Warehouse Creator panel converts the current plan into USD prims on the active stage:

• All ungrouped cells go under /Warehouse.

• Each group goes under its own /Warehouse_group_<id>.

• A center/floor prim is placed at every occupied cell, and a wall prim is added on every exposed edge, rotated to face outward.

A modal Generating Warehouse popup blocks input until the USD layers settle. This keeps the editor responsive while large layouts stream in.

Re-running Generate Warehouse replaces the existing root prims with a fresh layout, so you can iterate on the plan and regenerate without manual cleanup.

Editing column placement

Each warehouse block carries a quarter-column at every corner. Adjacent blocks combine their quarter-columns into a single full column. The Column Editor toggles individual full columns on or off after the warehouse is generated, without manually authoring per-block variants.

1. Generate the warehouse, then select any prim under one of the warehouse roots. The Edit Column Placement button becomes available when the selection sits under a generated warehouse.

2. Click Edit Column Placement to enter edit mode. The editor hides the ceiling and non-column geometry, highlights each column (green for kept, red for pending removal), and forces the viewport outline overlay on so the highlights remain visible.

3. Click columns in the viewport to toggle each between Enabled (green) and Disabled (red). Drag a marquee to toggle multiple at once. Use the Enable All, Disable All, and Flip All buttons for bulk operations.

4. Click Confirm to author the variant selections on the root layer, or Cancel to discard the pending changes. Both actions exit edit mode and clear the temporary visibility overrides.

Headless API

For scripts, batch jobs, and tests, omni.warehouse.creator.api exposes the same generation pipeline without any UI:

import omni.usd
from omni.warehouse.creator.api import CellData, GridConfig, GridEngine, StageSyncer

cells = {
    (0, 0): CellData(),
    (1, 0): CellData(),
    (1, 1): CellData(),
}

engine = GridEngine(GridConfig(cell_size=10.0))
stage = omni.usd.get_context().get_stage()

placed = StageSyncer().sync(cells, engine, stage)

The ColumnEditorController mirrors the Column Editor workflow for headless use. Call enter() to begin a session, mutate the pending-disabled set with set_all(), flip_all(), or toggle_keys(), then call leave() with commit=True to author the selections.
