Modular Behavior Scripting

Overview

This tutorial introduces the isaacsim.replicator.behavior extension and walks through its modular behavior scripts for Isaac Sim Replicator synthetic data generation (SDG). Built on top of the Python Scripting Component, these behaviors attach directly to prims in a USD stage and act as randomizers or custom smart-asset behaviors that are reusable, shareable, and easy to modify.

The behavior functionality ships as two extensions:

• isaacsim.replicator.behavior — the core extension containing the behavior scripts. It has no UI dependency and runs in headless mode.

• isaacsim.replicator.behavior.ui — the UI extension that renders exposed variables in the Property panel.

The two extensions communicate through a carb event, so the core can run without the UI loaded. See Core and UI extension split for details.

Find the bundled behavior scripts under:

/exts/isaacsim.replicator.behavior/isaacsim/replicator/behavior/behaviors/*

Learning Objectives

After completing this tutorial, you will understand how to:

• Use pre-built behavior scripts for common synthetic data generation tasks, including:

  • Location Randomizer - randomizes prim positions within specified bounds for object placement variety

  • Rotation Randomizer - applies random rotations to enhance orientation diversity in datasets

  • Look At Behavior - makes prims continuously face target locations or other prims for camera tracking

  • Light Randomizer - randomizes light properties like color and intensity to simulate different lighting conditions

  • Texture Randomizer - applies random textures to materials for increased visual variety

  • Volume Stack Randomizer - uses physics simulation to randomly stack objects for realistic arrangements

• Understand behavior script architecture - how modular Python scripts attach to prims and can be customized through exposed USD attributes, with configurable parameters like update intervals and randomization ranges

• Control behavior execution - configure behaviors to run on timeline events (start, update, stop) or trigger them independently using custom events for advanced workflows

• Create custom behavior scripts - develop your own behaviors using the provided templates and base classes for specific synthetic data generation needs

• Build complex SDG pipelines - combine multiple behaviors, simulations, and events to create sophisticated data generation workflows, such as physics-based object stacking followed by automated data capture

Prerequisites

Before starting, make sure you are familiar with:

• USD and Isaac Sim APIs for creating and manipulating USD stages

• Python Scripting Component in Isaac Sim

• The timeline and custom events system

• omni.replicator and its Isaac Sim tutorials for synthetic data generation

• Writers and annotators for data capture

• Running scripts using the Script Editor to setup and run pipelines

Note

To attach behavior scripts to prims from the UI (Property panel > Add > Python Scripting), enable the omni.behavior.scripting.ui extension from Window > Extensions. This extension ships the Python Scripting Component UI and is not enabled by default. The core behaviors in isaacsim.replicator.behavior run without it, which is useful for headless SDG pipelines.

Demonstration

The example section provides a demonstration of how to use the behavior scripts to create a custom synthetic data generation pipeline:

Behavior scripts

Behavior scripts are modular Python scripts attached to prims in a USD stage. By default, they respond to timeline events — start, pause, stop, and update — and define the randomization or custom logic applied to the prim during simulation or data generation.

Attaching scripts directly to prims embeds the behavior in the USD itself and gives you:

• Modularity. Attach, detach, or swap scripts on a prim without changing core logic.

• Shareability. Embed behaviors within assets and reuse them across projects or stages.

• Configurability. Expose variables as USD attributes and edit them without modifying source.

• Persistence. Scripts live on the prim and travel with the stage, so you can version them alongside it.

• Reusability and encapsulation. Write a behavior once and reuse it across prims and scenes with minimal external dependencies.

Exposing variables through USD attributes

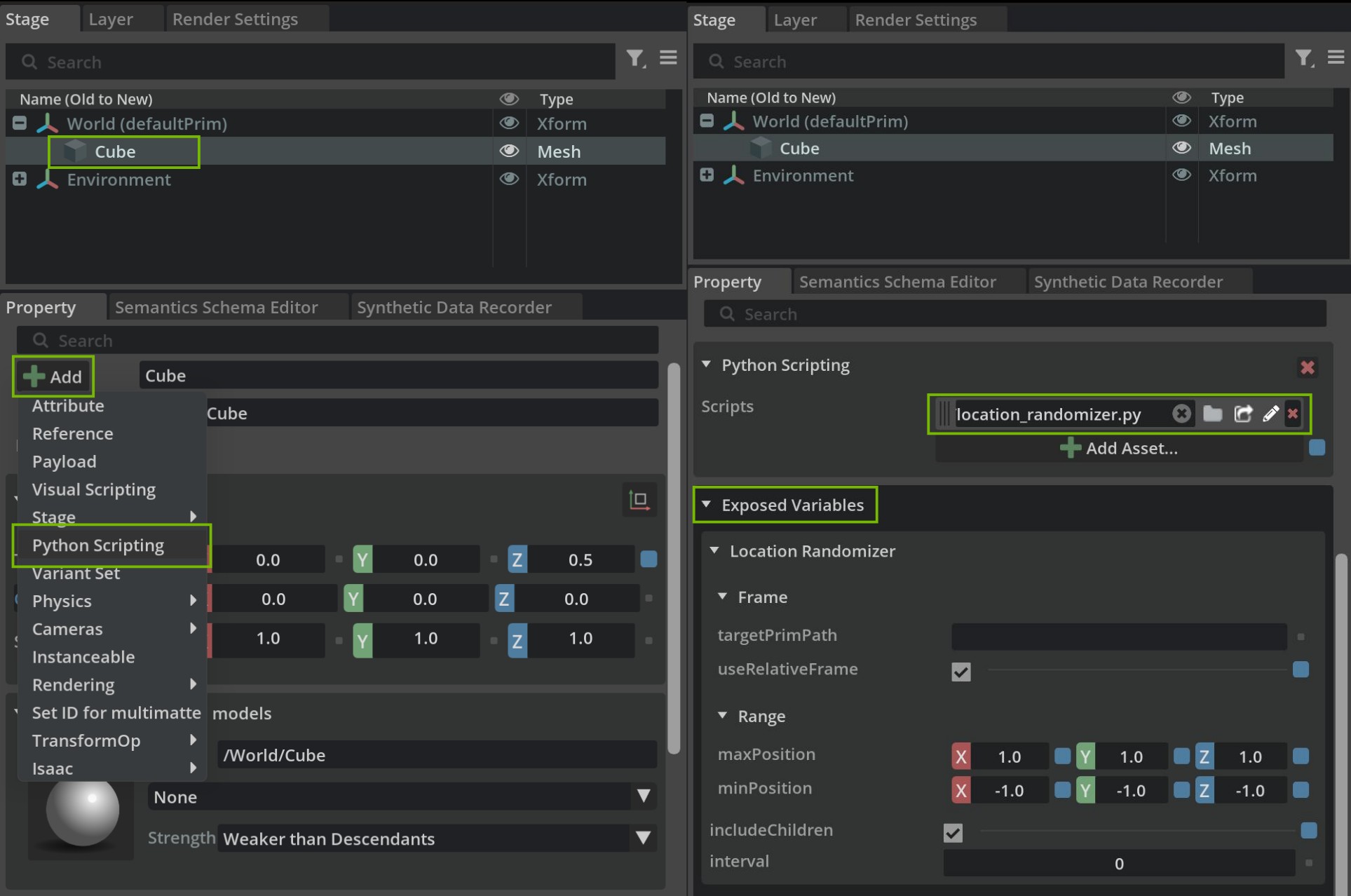

Each behavior script exposes its input parameters as namespaced USD attributes on the prim that carries the script. This lets you edit behavior parameters directly from the Property panel — or programmatically through the USD API — without modifying the script source.

Exposing variables as USD attributes provides three benefits:

• Customization. Tune parameters such as target locations, ranges, or seeds per prim instance.

• Interactivity. Edit values in the UI and observe the effect on the next update.

• Consistency. Every behavior presents the same editing interface regardless of its internal logic.

The scripts use the USD API to create custom attributes under a shared namespace (exposedVar:<behaviorNamespace>:<attrName>) and read them back during execution to drive their logic.

Core and UI extension split

The behavior functionality is split across two extensions:

• isaacsim.replicator.behavior — the core extension. It defines the behavior scripts, creates and removes the exposed USD attributes, and has no UI dependency. This lets you run the behaviors in headless mode (for example, during automated SDG pipelines).

• isaacsim.replicator.behavior.ui — the UI extension. It registers an ExposedVariablesPropertyWidget with the Property panel that automatically renders the exposed variables as editable fields.

The two extensions communicate through a single carb event, isaacsim.replicator.behavior.EXPOSED_VARS_CHANGED:

1. The core extension dispatches the event whenever it creates or removes exposed variables on a prim.

2. The UI extension subscribes to the event at startup and rebuilds the Property panel when it fires.

This event-based decoupling allows the core extension to run without the UI loaded, and the UI extension to refresh on demand without the core importing any UI modules.

Example of Exposed Variables Definition:

VARIABLES_TO_EXPOSE = [
    {
        "attr_name": "targetLocation",
        "attr_type": Sdf.ValueTypeNames.Vector3d,
        "default_value": Gf.Vec3d(0.0, 0.0, 0.0),
        "doc": "The 3D vector specifying the location to look at.",
    },
    {
        "attr_name": "targetPrimPath",
        "attr_type": Sdf.ValueTypeNames.String,
        "default_value": "",
        "doc": "The path of the target prim to look at. If specified, it has priority over the target location.",
    },
    # Additional variables...
]

Custom event-based behavior scripts

Timeline-driven behaviors are convenient, but some workflows need to run independently of the simulation clock — for example, pre-simulation setup, one-shot scene preparation, or sequences that must complete before data capture begins.

Event-based scripting lets a behavior skip the default timeline hooks and instead publish and subscribe to custom events on the Omniverse event bus. This gives you:

• Flexibility. Trigger behaviors on demand, decoupled from the simulation timeline.

• Modularity. Orchestrate complex workflows by chaining behaviors through events.

• Performance. Avoid per-frame work by running behaviors only when triggered.

The volume_stack_randomizer.py script illustrates this pattern. It uses custom events to drop, stack, and settle assets using physics before the timeline starts, so the data-capture phase runs against a deterministic initial state.

Script Examples

In this section, various behavior scripts available in the isaacsim.replicator.behavior extension are explored. Each script provides specific functionality that can enhance synthetic data generation workflows. The scripts are designed to be modular, reusable, and customizable through exposed variables.

The folder path for the behavior scripts is:

/exts/isaacsim.replicator.behavior/isaacsim/replicator/behavior/behaviors/*

Location Randomizer

The location_randomizer.py script randomizes the location of prims within specified bounds during runtime, providing position variability for enhanced synthetic datasets.

Overview

Purpose: Randomizes prim positions within defined bounds to create variety in object placement.

Key Features:

• Position range randomization within minimum and maximum bounds

• Relative positioning support using target prims as reference points

• Child prim inclusion for hierarchical randomization

• Configurable update intervals for performance control

Exposed Variables:

Configuration Parameters

• range:minPosition (Vector3d): Minimum bounds of the random offset.

• range:maxPosition (Vector3d): Maximum bounds of the random offset.

• frame:useRelativeFrame (Bool): If True, preserve the prim’s initial offset (from the target prim if set, otherwise from its own starting position) and add the random offset on top. If False, the random offset is applied as an absolute position (relative to the target prim if set, otherwise to the world origin).

• frame:targetPrimPath (String): Optional path to a reference prim. When set, all randomization is anchored to this prim’s world location; leave empty to randomize independently of any other prim.

• includeChildren (Bool): Include child prims in randomization.

• interval (UInt): Update frequency (0 = every frame).

Behavior Matrix:

The combination of frame:targetPrimPath and frame:useRelativeFrame determines how the random offset is applied:

targetPrimPath	useRelativeFrame	Resulting location
empty	False	random_offset (treated as absolute world coordinates).
empty	True	initial_location + random_offset (jitter around the prim’s starting position).
set	False	target_location + random_offset (prim is placed near the target, ignoring its original position).
set	True	target_location + initial_offset_from_target + random_offset (prim follows the target while preserving its original relative offset).

To make the prim’s randomization fully independent of any other prim, leave frame:targetPrimPath empty. Toggling frame:useRelativeFrame alone does not decouple the prim from the target.

Implementation Details

Child Prim Inclusion:

Child Prim Selection Logic

def _setup(self):
    include_children = self._get_exposed_variable("includeChildren")
    if include_children:
        self._valid_prims = [prim for prim in Usd.PrimRange(self.prim) if prim.IsA(UsdGeom.Xformable)]
    elif self.prim.IsA(UsdGeom.Xformable):
        self._valid_prims = [self.prim]
    else:
        self._valid_prims = []
        carb.log_warn(f"[{self.prim_path}] No valid prims found.")

• When includeChildren is True: Uses Usd.PrimRange to select all transformable descendant prims

• When includeChildren is False: Only includes the assigned prim if it’s transformable

• Logs warning if no valid prims are found

Randomization Logic:

Core Randomization Implementation

def _randomize_location(self, prim):
    # Generate random offset within bounds
    random_offset = Gf.Vec3d(
        random.uniform(self._min_position[0], self._max_position[0]),
        random.uniform(self._min_position[1], self._max_position[1]),
        random.uniform(self._min_position[2], self._max_position[2]),
    )

    # Calculate final location based on target prim and relative frame settings
    if self._target_prim:
        target_loc = get_world_location(self._target_prim)
        loc = (
            target_loc + self._target_offsets[prim] + random_offset
            if self._use_relative_frame
            else target_loc + random_offset
        )
    else:
        loc = self._initial_locations[prim] + random_offset if self._use_relative_frame else random_offset

    self._set_location(prim, loc)

• Generates a random offset within the configured range:minPosition / range:maxPosition bounds.

• If frame:targetPrimPath is set, anchors the result to the target prim’s current world location.

• If frame:useRelativeFrame is True, preserves the prim’s initial offset (from the target prim if set, otherwise from its own starting position) so the random offset acts as jitter rather than an absolute placement.

• Writes the final location to the prim using the existing translate or transform xformOp.

Usage Example

Basic Setup:

Step-by-Step Configuration

1. Attach Script: Add location_randomizer.py to your target prim

2. Set Bounds: Configure range:minPosition and range:maxPosition

3. Enable Children: Set includeChildren to True for hierarchical randomization

4. Set Interval: Use interval to control update frequency

Example Configuration:

• range:minPosition: (-5.0, -5.0, 0.0)

• range:maxPosition: (5.0, 5.0, 2.0)

• includeChildren: True

• interval: 5 (updates every 5 frames)

Use Cases:

• Background Objects: Randomize prop positions for scene variety. Leave frame:targetPrimPath empty and set frame:useRelativeFrame to True to jitter each prop around its authored location.

• Follow a Moving Target: Keep an object’s relative offset to a moving prim. Set frame:targetPrimPath to the target and frame:useRelativeFrame to True.

• Snap Near a Target: Place an object at randomized positions around a target, ignoring its original location. Set frame:targetPrimPath to the target and frame:useRelativeFrame to False.

• Hierarchical Randomization: Apply randomization to object groups by enabling includeChildren.

Rotation Randomizer

The rotation_randomizer.py script applies random rotations to prims during runtime, enhancing orientation diversity in synthetic datasets.

Overview

Purpose: Applies random rotations to prims within specified Euler angle bounds.

Key Features:

• Rotation range randomization within minimum and maximum angle bounds

• Child prim inclusion for hierarchical rotation randomization

• Configurable update intervals for performance optimization

Exposed Variables:

Configuration Parameters

• range:minRotation (Vector3d): Minimum rotation angles in degrees (X, Y, Z)

• range:maxRotation (Vector3d): Maximum rotation angles in degrees (X, Y, Z)

• includeChildren (Bool): Include child prims in rotation randomization

• interval (UInt): Update frequency (0 = every frame)

Implementation Details

Child Prim Selection:

Child Prim Selection Logic

def _setup(self):
    include_children = self._get_exposed_variable("includeChildren")
    if include_children:
        self._valid_prims = [prim for prim in Usd.PrimRange(self.prim) if prim.IsA(UsdGeom.Xformable)]
    elif self.prim.IsA(UsdGeom.Xformable):
        self._valid_prims = [self.prim]
    else:
        self._valid_prims = []
        carb.log_warn(f"[{self.prim_path}] No valid prims found.")

• When includeChildren is True: All transformable descendant prims are included

• When includeChildren is False: Only the assigned prim is considered if transformable

• Warning logged if no valid prims found

Rotation Randomization:

Core Rotation Implementation

def _randomize_rotation(self, prim):
    rotation = (
        Gf.Rotation(Gf.Vec3d.XAxis(), random.uniform(self._min_rotation[0], self._max_rotation[0]))
        * Gf.Rotation(Gf.Vec3d.YAxis(), random.uniform(self._min_rotation[1], self._max_rotation[1]))
        * Gf.Rotation(Gf.Vec3d.ZAxis(), random.uniform(self._min_rotation[2], self._max_rotation[2]))
    )
    set_rotation_with_ops(prim, rotation)

• Generates random Euler angles within specified bounds for each axis

• Creates composite rotation by multiplying X, Y, and Z axis rotations

• Applies rotation using set_rotation_with_ops for proper transformation handling

Usage Example

Basic Setup:

Step-by-Step Configuration

1. Attach Script: Add rotation_randomizer.py to your target prim

2. Set Rotation Bounds: Configure range:minRotation and range:maxRotation

3. Enable Children: Set includeChildren to True for hierarchical rotation

4. Set Interval: Use interval to control update frequency

Example Configuration:

• range:minRotation: (-180.0, -90.0, 0.0) degrees

• range:maxRotation: (180.0, 90.0, 360.0) degrees

• includeChildren: True

• interval: 10 (updates every 10 frames)

Use Cases:

• Object Variety: Randomize prop orientations for diverse scenes

• Tumbling Effects: Simulate falling or floating objects

• Presentation Angles: Vary object viewing angles for training data

Look At Behavior

The look_at_behavior.py script orients prims to continuously face a specified target, ideal for camera tracking and sensor alignment.

Overview

Purpose: Orients prims to continuously face a target location or another prim.

Key Features:

• Target specification using fixed coordinates or dynamic prim tracking

• Up axis control for maintaining consistent orientation

• Child prim inclusion for hierarchical look-at behavior

• Configurable update intervals for performance control

Exposed Variables:

Configuration Parameters

• targetLocation (Vector3d): Fixed 3D coordinates to look at

• targetPrimPath (String): Path to target prim (overrides targetLocation)

• upAxis (Vector3d): Up axis for orientation (e.g., (0, 0, 1) for +Z)

• includeChildren (Bool): Include child prims in look-at behavior

• interval (UInt): Update frequency (0 = every frame)

Implementation Details

Target Prim Handling:

Target Prim Resolution

def _setup(self):
    target_prim_path = self._get_exposed_variable("targetPrimPath")
    if target_prim_path:
        self._target_prim = self.stage.GetPrimAtPath(target_prim_path)
        if not self._target_prim or not self._target_prim.IsValid() or not self._target_prim.IsA(UsdGeom.Xformable):
            self._target_prim = None
            carb.log_warn(f"[{self.prim_path}] Invalid target prim path: {target_prim_path}")

• targetPrimPath takes precedence over targetLocation when specified

• Validates target prim exists and is transformable

• Logs warning if target prim is invalid

Orientation Calculation:

Look-At Rotation Implementation

def _apply_behavior(self):
    target_location = self._get_target_location()
    for prim in self._valid_prims:
        eye = get_world_location(prim)
        if (target_location - eye).GetLength() < 1e-9:
            continue  # Already at target; skip rotation to avoid undefined look-at
        look_at_rotation = calculate_look_at_rotation(eye, target_location, self._up_axis)
        set_rotation_with_ops(prim, look_at_rotation)

• Retrieves current prim position using get_world_location

• Calculates required rotation using calculate_look_at_rotation

• Applies rotation while preserving existing transformation operations

Usage Example

Basic Setup:

Step-by-Step Configuration

1. Attach Script: Add look_at_behavior.py to your camera or sensor prim

2. Set Target: Configure either targetLocation or targetPrimPath

3. Adjust Up Axis: Set upAxis to maintain desired orientation

4. Set Interval: Use interval to control update frequency

Example Configuration:

• targetPrimPath: /World/MovingObject/Prim

• upAxis: (0, 0, 1) (Z-up orientation)

• includeChildren: False (camera only)

• interval: 1 (update every frame)

Use Cases:

• Camera Tracking: Make cameras follow moving subjects

• Sensor Alignment: Point sensors at targets of interest

• Lighting Direction: Orient lights to follow objects

Light Randomizer

The light_randomizer.py script randomizes light properties to simulate different lighting conditions for enhanced scene variability.

Overview

Purpose: Randomizes light color and intensity properties to create diverse lighting scenarios.

Key Features:

• Color randomization varying RGB values within specified ranges

• Intensity randomization adjusting brightness between minimum and maximum values

• Child light inclusion for hierarchical lighting randomization

• Configurable update intervals for performance optimization

Exposed Variables:

Configuration Parameters

• includeChildren (Bool): Include child light prims in randomization

• interval (UInt): Update frequency (0 = every frame)

• range:minColor (Color3f): Minimum RGB values for color randomization

• range:maxColor (Color3f): Maximum RGB values for color randomization

• range:intensity (Float2): Intensity range as (min, max) values

Implementation Details

Light Property Randomization:

Color and Intensity Randomization

def _apply_behavior(self):
    for prim in self._valid_prims:
        rand_color = (
            random.uniform(self._min_color[0], self._max_color[0]),
            random.uniform(self._min_color[1], self._max_color[1]),
            random.uniform(self._min_color[2], self._max_color[2]),
        )
        prim.GetAttribute("inputs:color").Set(rand_color)

        rand_intensity = random.uniform(self._intensity_range[0], self._intensity_range[1])
        prim.GetAttribute("inputs:intensity").Set(rand_intensity)

• Generates random RGB values within specified color ranges

• Applies random intensity values within defined bounds

• Updates light attributes directly using USD API

Child Light Selection:

Light Prim Discovery

def _setup(self):
    include_children = self._get_exposed_variable("includeChildren")
    if include_children:
        self._valid_prims = [prim for prim in Usd.PrimRange(self.prim) if prim.HasAPI(UsdLux.LightAPI)]
    elif self.prim.HasAPI(UsdLux.LightAPI):
        self._valid_prims = [self.prim]
    else:
        self._valid_prims = []
        carb.log_warn(f"[{self.prim_path}] No valid light prims found.")

• Uses UsdLux.LightAPI to identify valid light prims

• Includes child lights when includeChildren is enabled

• Validates that target prim or children have light API

Usage Example

Basic Setup:

Step-by-Step Configuration

1. Attach Script: Add light_randomizer.py to a light prim or parent containing lights

2. Set Color Range: Configure range:minColor and range:maxColor

3. Set Intensity Range: Define range:intensity min/max values

4. Enable Children: Set includeChildren to True for multiple lights

Example Configuration:

• range:minColor: (0.8, 0.8, 0.8) (warm white minimum)

• range:maxColor: (1.0, 1.0, 1.0) (bright white maximum)

• range:intensity: (1000.0, 5000.0) (intensity range)

• includeChildren: True

• interval: 0 (update every frame)

Use Cases:

• Day/Night Cycles: Simulate changing lighting conditions

• Dynamic Environments: Create flickering or varying light sources

• Color Temperature: Randomize between warm and cool lighting

Texture Randomizer

The texture_randomizer.py script randomly applies textures to materials for increased visual variety of objects.

Overview

Purpose: Randomly applies textures to visual prims to create diverse material appearances.

Key Features:

• Texture selection from provided asset arrays or CSV lists

• Material creation with randomized parameters (scale, rotation, UV projection)

• Child prim inclusion for hierarchical texture randomization

• Configurable update intervals for performance control

Exposed Variables:

Configuration Parameters

• includeChildren (Bool): Include child prims in texture randomization

• interval (UInt): Update frequency (0 = every frame)

• textures:assets (AssetArray): List of texture assets to use

• textures:csv (String): CSV string of texture URLs

• projectUvwProbability (Float): Probability of enabling project_uvw

• textureScaleRange (Float2): Texture scale range as (min, max)

• textureRotateRange (Float2): Texture rotation range in degrees (min, max)

Implementation Details

Texture Application:

Material and Shader Randomization

def _apply_behavior(self):
    if not self._texture_urls:
        carb.log_warn(f"[{self.prim_path}] No texture URLs provided; skipping.")
        return
    for mat in self._texture_materials:
        shader = UsdShade.Shader(omni.usd.get_shader_from_material(mat.GetPrim(), get_prim=True))
        if not shader:
            continue
        diffuse_texture = random.choice(self._texture_urls)
        if shader.GetInput("diffuse_texture"):
            shader.GetInput("diffuse_texture").Set(diffuse_texture)

        project_uvw = random.choices(
            [True, False], weights=[self._project_uvw_probability, 1 - self._project_uvw_probability]
        )[0]
        shader.GetInput("project_uvw").Set(bool(project_uvw))

        texture_scale = random.uniform(self._texture_scale_range[0], self._texture_scale_range[1])
        shader.GetInput("texture_scale").Set((texture_scale, texture_scale))

        texture_rotate = random.uniform(self._texture_rotate_range[0], self._texture_rotate_range[1])
        shader.GetInput("texture_rotate").Set(texture_rotate)

• Randomly selects textures from provided asset list

• Applies probabilistic UV projection settings

• Randomizes texture scale and rotation parameters

• Updates shader inputs directly via USD API

Child Prim Selection:

Geometric Prim Discovery

def _setup(self):
    include_children = self._get_exposed_variable("includeChildren")
    if include_children:
        self._valid_prims = [prim for prim in Usd.PrimRange(self.prim) if prim.IsA(UsdGeom.Gprim)]
    elif self.prim.IsA(UsdGeom.Gprim):
        self._valid_prims = [self.prim]
    else:
        self._valid_prims = []
        carb.log_warn(f"[{self.prim_path}] No valid prims found.")

• Uses UsdGeom.Gprim to identify geometric prims suitable for materials

• Includes child prims when includeChildren is enabled

• Validates that target prims can receive material bindings

Usage Example

Basic Setup:

Step-by-Step Configuration

1. Attach Script: Add texture_randomizer.py to a geometric prim

2. Provide Textures: Set textures:assets or textures:csv with texture paths

3. Configure Parameters: Adjust scale, rotation, and UV projection settings

4. Enable Children: Set includeChildren to True for multiple objects

Example Configuration:

• textures:csv: “texture1.jpg,texture2.png,texture3.exr”

• textureScaleRange: (0.5, 2.0) (scale variation)

• textureRotateRange: (0.0, 360.0) (full rotation)

• projectUvwProbability: 0.3 (30% chance of UV projection)

• includeChildren: True

Use Cases:

• Material Variety: Create diverse surface appearances for objects

• Background Variation: Randomize textures on environmental elements

• Asset Augmentation: Enhance object datasets with texture variation

Volume Stack Randomizer

The volume_stack_randomizer.py script uses physics simulation to randomly stack objects for realistic object arrangements.

Overview

Purpose: Randomly drops and stacks assets within specified areas using physics simulation.

Key Features:

• Asset randomization from provided lists or CSV paths

• Physics simulation for natural stacking behavior

• Event-based execution independent of simulation timeline

• Customizable parameters for drop height, asset count, and rendering

Exposed Variables:

Configuration Parameters

• includeChildren (Bool): Include child prims in the behavior

• event:input (String): Event name to subscribe to for behavior control

• event:output (String): Event name to publish after behavior execution

• assets:assets (AssetArray): List of asset references to spawn

• assets:csv (String): CSV string of asset URLs to spawn

• assets:numRange (Int2): Range for number of assets to spawn (min, max)

• dropHeight (Float): Height from which to drop the assets

• renderSimulation (Bool): Whether to render simulation steps

• removeRigidBodyDynamics (Bool): Remove rigid body dynamics after simulation

• preserveSimulationState (Bool): Keep final simulation state

Implementation Details

Core Structure:

Class Architecture

class VolumeStackRandomizer(BehaviorScript):
    BEHAVIOR_NS = "volumeStackRandomizer"
    EVENT_NAME_IN = f"{EXTENSION_NAME}.{BEHAVIOR_NS}.in"
    EVENT_NAME_OUT = f"{EXTENSION_NAME}.{BEHAVIOR_NS}.out"
    ACTION_FUNCTION_MAP = {
        "setup": "_setup_async",
        "run": "_run_behavior_async",
        "reset": "_reset_async",
    }

    async def _setup_async(self):
        # Asynchronous setup logic...
        pass

    async def _run_behavior_async(self):
        # Asynchronous behavior execution...
        pass

    async def _reset_async(self):
        # Asynchronous reset logic...
        pass

• Event-based behavior using custom events for lifecycle management

• Asynchronous methods for non-blocking physics simulation

• Action function mapping for external event control

Child Prim Selection:

Surface Area Discovery

async def _setup_async(self):
    include_children = self._get_exposed_variable("includeChildren")
    if include_children:
        self._valid_prims = [prim for prim in Usd.PrimRange(self.prim) if prim.IsA(UsdGeom.Gprim)]
    elif self.prim.IsA(UsdGeom.Gprim):
        self._valid_prims = [self.prim]
    else:
        self._valid_prims = []
        carb.log_warn(f"[{self.prim_path}] No valid prims found.")

• Identifies geometric prims suitable for object stacking surfaces

• Includes child prims when includeChildren is enabled

• Validates surface prims can receive physics objects

Event-Based Control

Custom Event System:

Event-Based Execution Control

The Volume Stack Randomizer operates using custom events rather than timeline-based updates, allowing for precise control over when stacking operations occur.

Event Flow:

1. Reset Phase: Cleans up previous simulation state

2. Setup Phase: Spawns assets and prepares physics simulation

3. Run Phase: Executes physics simulation for object stacking

4. Completion: Publishes completion event with final state

Event Control Example:

async def run_stacking_simulation_async(prim_path=None):
    actions = [("reset", "RESET", 10), ("setup", "SETUP", 500), ("run", "FINISHED", 1500)]
    for action, state, wait in actions:
        await publish_event_and_wait_for_completion_async(
            publish_payload={"prim_path": prim_path, "action": action},
            expected_payload={"prim_path": prim_path, "state_name": state},
            publish_event_name=VolumeStackRandomizer.EVENT_NAME_IN,
            subscribe_event_name=VolumeStackRandomizer.EVENT_NAME_OUT,
            max_wait_updates=wait,
        )

Integration Benefits:

• Precise Control: Execute stacking at specific workflow points

• Sequential Operations: Chain multiple stacking operations

• State Management: Track completion of each simulation phase

• External Orchestration: Control from external scripts or systems

Usage Example

Basic Setup:

Step-by-Step Configuration

1. Attach Script: Add volume_stack_randomizer.py to surface prims

2. Configure Assets: Set assets:csv or assets:assets with object paths

3. Set Parameters: Define assets:numRange, dropHeight, and other settings

4. Control Events: Use custom events to trigger stacking operations

Example Configuration:

• assets:csv: “box1.usd,box2.usd,cylinder.usd”

• assets:numRange: (5, 20) (spawn 5-20 objects)

• dropHeight: 2.0 (drop from 2 units above surface)

• renderSimulation: True (show simulation steps)

• preserveSimulationState: True (keep final arrangement)

Use Cases:

• Object Arrangement: Create realistic piles of objects

• Physics Validation: Test object interactions and stability

• Scene Preparation: Set up complex scenes before data capture

• Simulation Workflows: Integrate physics-based randomization into pipelines

Templates

This section provides template scripts that serve as starting points for creating custom behaviors.

Available Templates

Template Scripts:

• example_behavior.py: Basic template with boilerplate code for new behaviors

• base_behavior.py and example_base_behavior.py: Demonstrate base behavior class inheritance for structured development

• example_custom_event_behavior.py: Shows implementation of event-based behaviors

Key Template Features:

• Variable Exposure: Demonstrates exposing variables as USD attributes for UI customization

• Behavior Structure: Provides necessary methods (on_init, on_play, on_update, on_stop, on_destroy) for timeline integration

• Extensibility: Base behavior classes enable easy extension and reuse in new behaviors

• Event Integration: Shows both timeline-based and custom event-based approaches

Example

Below is an example demonstrating the use of behavior scripts to set up and run synthetic data generation in Isaac Sim. It showcases how to utilize behavior scripts for stacking simulations, texture randomization, light behavior, and camera tracking, ultimately capturing synthetic data with randomized scene configurations.

Key Highlights of the Example:

• Volume Stacking Simulation: Randomly stack assets using physics simulation to create realistic arrangements.

• Texture Randomization: Apply randomized textures to assets for scene diversity.

• Light and Camera Behaviors: Add randomization to light properties and make the camera track a specific target.

• Synthetic Data Capture: Generate and save synthetic images with the configured behaviors.

Example Script:

The demo script can be run directly from the Script Editor:

Behavior script-based SDG script:

import asyncio
import inspect
import os

import isaacsim.core.experimental.utils.semantics as semantics_utils
import numpy as np
import omni.kit.app
import omni.replicator.core as rep
import omni.timeline
import omni.usd
from isaacsim.replicator.behavior.behaviors import (
    LightRandomizer,
    LocationRandomizer,
    LookAtBehavior,
    RotationRandomizer,
    TextureRandomizer,
    VolumeStackRandomizer,
)
from isaacsim.replicator.behavior.global_variables import EXPOSED_ATTR_NS
from isaacsim.replicator.behavior.utils.behavior_utils import (
    add_behavior_script_with_parameters_async,
    publish_event_and_wait_for_completion_async,
)
from isaacsim.storage.native import get_assets_root_path_async
from pxr import Gf, UsdGeom


async def setup_and_run_stacking_simulation_async(prim, seed: int | None = None):
    STACK_ASSETS_CSV = (
        "/Isaac/Environments/Simple_Warehouse/Props/SM_CardBoxC_01.usd,"
        "/Isaac/Environments/Simple_Warehouse/Props/SM_CardBoxD_01.usd,"
        "/Isaac/Props/KLT_Bin/small_KLT_visual.usd,"
    )

    # Add the behavior script with custom parameters
    script_path = inspect.getfile(VolumeStackRandomizer)
    parameters = {
        f"{EXPOSED_ATTR_NS}:{VolumeStackRandomizer.BEHAVIOR_NS}:assets:csv": STACK_ASSETS_CSV,
        f"{EXPOSED_ATTR_NS}:{VolumeStackRandomizer.BEHAVIOR_NS}:assets:numRange": Gf.Vec2i(2, 5),
        f"{EXPOSED_ATTR_NS}:{VolumeStackRandomizer.BEHAVIOR_NS}:renderSimulation": False,
    }
    if seed is not None:
        parameters[f"{EXPOSED_ATTR_NS}:{VolumeStackRandomizer.BEHAVIOR_NS}:seed"] = seed
    await add_behavior_script_with_parameters_async(prim, script_path, parameters)

    # Helper function to handle publishing and waiting for events
    async def handle_event(action, expected_state, max_wait):
        return await publish_event_and_wait_for_completion_async(
            publish_payload={"prim_path": prim.GetPath(), "action": action},
            expected_payload={"prim_path": prim.GetPath(), "state_name": expected_state},
            publish_event_name=VolumeStackRandomizer.EVENT_NAME_IN,
            subscribe_event_name=VolumeStackRandomizer.EVENT_NAME_OUT,
            max_wait_updates=max_wait,
        )

    # Define and execute the stacking simulation steps
    actions = [("reset", "RESET", 10), ("setup", "SETUP", 500), ("run", "FINISHED", 10000)]
    for action, state, wait in actions:
        print(f"Executing '{action}' and waiting for state '{state}'...")
        if not await handle_event(action, state, wait):
            print(f"Failed to complete '{action}' with state '{state}'.")
            if action == "run":
                print("Requesting reset before continuing.")
                await handle_event("reset", "RESET", 2000)
            return

    print("Stacking simulation finished.")


async def setup_texture_randomizer_async(prim, seed: int | None = None):
    TEXTURE_ASSETS_CSV = (
        "/Isaac/Materials/Textures/Patterns/nv_bamboo_desktop.jpg,"
        "/Isaac/Materials/Textures/Patterns/nv_wood_boards_brown.jpg,"
        "/Isaac/Materials/Textures/Patterns/nv_wooden_wall.jpg,"
    )

    script_path = inspect.getfile(TextureRandomizer)
    parameters = {
        f"{EXPOSED_ATTR_NS}:{TextureRandomizer.BEHAVIOR_NS}:interval": 5,
        f"{EXPOSED_ATTR_NS}:{TextureRandomizer.BEHAVIOR_NS}:textures:csv": TEXTURE_ASSETS_CSV,
    }
    if seed is not None:
        parameters[f"{EXPOSED_ATTR_NS}:{TextureRandomizer.BEHAVIOR_NS}:seed"] = seed
    await add_behavior_script_with_parameters_async(prim, script_path, parameters)


async def setup_light_behaviors_async(prim, light_seed: int | None = None, location_seed: int | None = None):
    # Light randomization
    light_script_path = inspect.getfile(LightRandomizer)
    light_parameters = {
        f"{EXPOSED_ATTR_NS}:{LightRandomizer.BEHAVIOR_NS}:interval": 4,
        f"{EXPOSED_ATTR_NS}:{LightRandomizer.BEHAVIOR_NS}:range:intensity": Gf.Vec2f(20000, 120000),
    }
    if light_seed is not None:
        light_parameters[f"{EXPOSED_ATTR_NS}:{LightRandomizer.BEHAVIOR_NS}:seed"] = light_seed
    await add_behavior_script_with_parameters_async(prim, light_script_path, light_parameters)

    # Location randomization
    location_script_path = inspect.getfile(LocationRandomizer)
    location_parameters = {
        f"{EXPOSED_ATTR_NS}:{LocationRandomizer.BEHAVIOR_NS}:interval": 2,
        f"{EXPOSED_ATTR_NS}:{LocationRandomizer.BEHAVIOR_NS}:range:minPosition": Gf.Vec3d(-1.25, -1.25, 0.0),
        f"{EXPOSED_ATTR_NS}:{LocationRandomizer.BEHAVIOR_NS}:range:maxPosition": Gf.Vec3d(1.25, 1.25, 0.0),
    }
    if location_seed is not None:
        location_parameters[f"{EXPOSED_ATTR_NS}:{LocationRandomizer.BEHAVIOR_NS}:seed"] = location_seed
    await add_behavior_script_with_parameters_async(prim, location_script_path, location_parameters)


async def setup_target_asset_behaviors_async(prim, rotation_seed: int | None = None, location_seed: int | None = None):
    # Rotation randomization
    rotation_script_path = inspect.getfile(RotationRandomizer)
    rotation_parameters = {}
    if rotation_seed is not None:
        rotation_parameters[f"{EXPOSED_ATTR_NS}:{RotationRandomizer.BEHAVIOR_NS}:seed"] = rotation_seed
    await add_behavior_script_with_parameters_async(prim, rotation_script_path, rotation_parameters)

    # Location randomization
    location_script_path = inspect.getfile(LocationRandomizer)
    location_parameters = {
        f"{EXPOSED_ATTR_NS}:{LocationRandomizer.BEHAVIOR_NS}:interval": 3,
        f"{EXPOSED_ATTR_NS}:{LocationRandomizer.BEHAVIOR_NS}:range:minPosition": Gf.Vec3d(-0.2, -0.2, -0.2),
        f"{EXPOSED_ATTR_NS}:{LocationRandomizer.BEHAVIOR_NS}:range:maxPosition": Gf.Vec3d(0.2, 0.2, 0.2),
    }
    if location_seed is not None:
        location_parameters[f"{EXPOSED_ATTR_NS}:{LocationRandomizer.BEHAVIOR_NS}:seed"] = location_seed
    await add_behavior_script_with_parameters_async(prim, location_script_path, location_parameters)


async def setup_camera_behaviors_async(prim, target_prim_path):
    # Look at behavior following the target asset
    script_path = inspect.getfile(LookAtBehavior)
    parameters = {
        f"{EXPOSED_ATTR_NS}:{LookAtBehavior.BEHAVIOR_NS}:targetPrimPath": target_prim_path,
    }
    await add_behavior_script_with_parameters_async(prim, script_path, parameters)


async def setup_writer_and_capture_data_async(camera_path, num_captures):
    # Create the writer and the render product
    rp = rep.create.render_product(camera_path, (512, 512))
    writer = rep.writers.get("BasicWriter")
    output_directory = os.path.join(os.getcwd(), "_out_behaviors_sdg")
    print(f"output_directory: {output_directory}")
    writer.initialize(output_dir=output_directory, rgb=True, distance_to_image_plane=True, colorize_depth=True)
    writer.attach(rp)

    # Disable capture on play, data is captured manually using the step function
    rep.orchestrator.set_capture_on_play(False)

    # Use the timeline to control the behavior scripts execution and frame captures
    timeline = omni.timeline.get_timeline_interface()

    # Start the SDG pipeline
    for i in range(num_captures):
        # Advance the timeline with one update and then pause it to avoid triggering the behavior scripts by the step_async internal updates
        timeline.play()
        await omni.kit.app.get_app().next_update_async()
        timeline.pause()
        timeline.commit()

        # Capture the frame
        print(f"Capturing frame {i} at time {timeline.get_current_time():.4f}")
        await rep.orchestrator.step_async(rt_subframes=32, delta_time=0.0)

    # Stop the timeline (and trigger the behavior scripts to stop)
    timeline.stop()
    await omni.kit.app.get_app().next_update_async()

    # Make sure all the frames are written from the backend queue and free the rendering resources
    await rep.orchestrator.wait_until_complete_async()
    writer.detach()
    rp.destroy()


async def run_example_async(num_captures, seed: int | None = None):
    STAGE_URL = "/Isaac/Samples/Replicator/Stage/warehouse_pallets_behavior_scripts.usd"
    PALLETS_ROOT_PATH = "/Root/Pallets"
    LIGHTS_ROOT_PATH = "/Root/Lights"
    CAMERA_PATH = "/Root/Camera_01"
    TARGET_ASSET_URL = "/Isaac/Props/YCB/Axis_Aligned/035_power_drill.usd"
    TARGET_ASSET_PATH = "/Root/Target"
    TARGET_ASSET_LABEL = "power_drill"
    TARGET_ASSET_LOCATION = (-1.5, 5.5, 1.5)

    # Generate unique seeds per behavior instance to ensure determinism regardless of execution order
    if seed is not None:
        seed_rng = np.random.default_rng(seed)
        stacking_seed = int(seed_rng.integers(0, 2**31))
        texture_seed = int(seed_rng.integers(0, 2**31))
        light_intensity_seed = int(seed_rng.integers(0, 2**31))
        light_location_seed = int(seed_rng.integers(0, 2**31))
        target_rotation_seed = int(seed_rng.integers(0, 2**31))
        target_location_seed = int(seed_rng.integers(0, 2**31))
    else:
        stacking_seed = texture_seed = None
        light_intensity_seed = light_location_seed = None
        target_rotation_seed = target_location_seed = None

    # Open stage
    assets_root_path = await get_assets_root_path_async()
    print(f"Opening stage from {assets_root_path + STAGE_URL}")
    await omni.usd.get_context().open_stage_async(assets_root_path + STAGE_URL)
    stage = omni.usd.get_context().get_stage()

    # Check if all required prims exist in the stage
    pallets_root_prim = stage.GetPrimAtPath(PALLETS_ROOT_PATH)
    lights_root_prim = stage.GetPrimAtPath(LIGHTS_ROOT_PATH)
    camera_prim = stage.GetPrimAtPath(CAMERA_PATH)
    if not all([pallets_root_prim.IsValid(), lights_root_prim.IsValid(), camera_prim.IsValid()]):
        print(f"Not all required prims exist in the stage.")
        return

    # Spawn the target asset at the requested location, label it with the target asset label
    target_prim = stage.DefinePrim(TARGET_ASSET_PATH, "Xform")
    target_prim.GetReferences().AddReference(assets_root_path + TARGET_ASSET_URL)
    if not target_prim.HasAttribute("xformOp:translate"):
        UsdGeom.Xformable(target_prim).AddTranslateOp()
    target_prim.GetAttribute("xformOp:translate").Set(TARGET_ASSET_LOCATION)
    semantics_utils.remove_all_labels(target_prim, include_descendants=True)
    semantics_utils.add_labels(target_prim, labels=[TARGET_ASSET_LABEL], taxonomy="class")

    # Setup and run the stacking simulation before capturing the data
    # Note: Physics simulation is non-deterministic, final positions may vary
    await setup_and_run_stacking_simulation_async(pallets_root_prim, seed=stacking_seed)

    # Setup texture randomizer
    await setup_texture_randomizer_async(pallets_root_prim, seed=texture_seed)

    # Setup the light behaviors
    await setup_light_behaviors_async(
        lights_root_prim, light_seed=light_intensity_seed, location_seed=light_location_seed
    )

    # Setup the target asset behaviors
    await setup_target_asset_behaviors_async(
        target_prim, rotation_seed=target_rotation_seed, location_seed=target_location_seed
    )

    # Setup the camera behaviors
    await setup_camera_behaviors_async(camera_prim, str(target_prim.GetPath()))

    # Setup the writer and capture the data, behavior scripts are triggered by running the timeline
    await setup_writer_and_capture_data_async(camera_path=camera_prim.GetPath(), num_captures=num_captures)


asyncio.ensure_future(run_example_async(num_captures=6))
