Tutorial 9: Pick and Place Example#
Learning Objectives#
This is the final manipulator tutorial in a series of four tutorials. It ties everything together by showing how to use the UR10e robot and the 2F-140 gripper to control the gripper, follow a Cartesian target, and perform a pick-and-place sequence. We will be using the robot imported in Tutorial 6: Setup a Manipulator and the URDF and XRDF robot configuration files described in Robot Configuration Tutorial.
This tutorial builds on top of the Robot Motion (Experimental) extension and demonstrates two motion controllers:
cuMotion RMPflow — a GPU-accelerated reactive motion planner with collision avoidance. See the cuMotion Integration overview and the RMPflow Tutorial for full details.
PINK differential IK — a CPU-based inverse kinematics solver using the PINK library. See the PINK Integration overview and the IK Controller Tutorial for full details.
30 Minutes Tutorial
Prerequisites#
Review Tutorial 6: Setup a Manipulator and Tutorial 7: Configure a Manipulator prior to beginning this tutorial to generate robot and the URDF and XRDF files required by the pick-and-place examples.
Note
If you have not completed the previous tutorial(s), you can find the prebuilt asset in the content browser at Isaac Sim/Samples/Rigging/Manipulator/configure_manipulator/ur10e/ur/ur_gripper.usd.
Additionally, pre-generated URDF, XRDF, and rmp_flow.yaml files can be found at source/extensions/isaacsim.robot_motion.cumotion/robot_configurations/ur10/.
Overview#
This tutorial is divided into four parts, each corresponding to a standalone example script:
Part |
Script |
Description |
|---|---|---|
1 |
|
Gripper control using the Articulation API |
2 |
|
Joint-space trajectory planning and execution |
3 |
|
Real-time Cartesian target following with cuMotion RMPflow |
4 |
|
Full pick-and-place sequence with cuMotion RMPflow or PINK differential IK |
All scripts are located at standalone_examples/tutorials/manipulation/.
Part 1: Gripper Control#

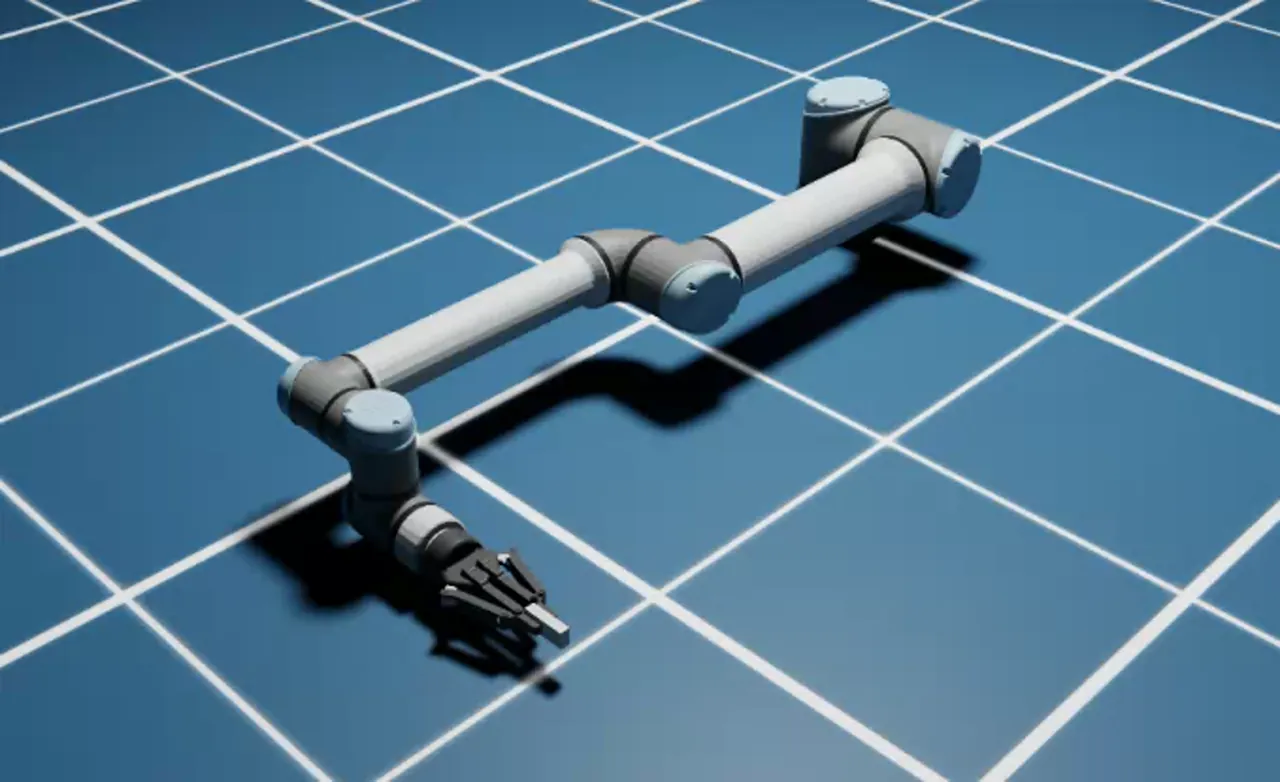

This example introduces the Articulation API by controlling the 2F-140 gripper joints directly with set_dof_position_targets. The gripper closes fully and then opens again.
./python.sh standalone_examples/tutorials/manipulation/tutorial_9_gripper_control.py
Key concepts:
Articulation.dof_namesreturns the list of all degrees of freedom in order. The gripper joint is namedfinger_joint.set_dof_position_targetssends a position target to one or more DOFs by index. Passingdof_indicesrestricts the command to only those joints.
tutorial_9_gripper_control.py — gripper control loop
finger_idx = robot.dof_names.index("finger_joint")
frame_count = 0
while app.is_running():
for target_pos, label in [(_CLOSED_POS, "closing"), (_OPEN_POS, "opening")]:
print(f"Gripper {label}...")
for _ in range(_HOLD_STEPS):
robot.set_dof_position_targets(target_pos, dof_indices=finger_idx)
app.update()
frame_count += 1
if args.test and frame_count >= _HOLD_STEPS * 2:
return
Part 2: Arm Trajectory Following#
This example plans and executes a joint-space trajectory using mg.Path and mg.TrajectoryFollower from the motion generation API. The robot follows a sequence of waypoints in minimal time subject to velocity and acceleration limits.
./python.sh standalone_examples/tutorials/manipulation/tutorial_9_arm_trajectory.py
Key concepts:
mg.Path(waypoints)wraps a sequence of joint-space configurations..to_minimal_time_joint_trajectory(max_velocities, max_accelerations, ...)computes a time-optimal trajectory that respects joint limits.mg.TrajectoryFollowertracks the planned trajectory, calling.forward(estimated_state, setpoint, t)each physics step to obtain the desired joint state.get_estimated_statepackages the current joint positions, velocities, and efforts into anmg.RobotState.apply_desired_stateapplies the position, velocity, and effort targets from the desired state back to the articulation.
tutorial_9_arm_trajectory.py — trajectory setup
waypoints = np.array(
[
[0.00, -1.57, 1.57, -1.57, -1.57, 0.00], # home
[0.50, -1.00, 0.80, -1.30, -1.57, 0.00], # reach-out
[0.00, -1.57, 1.57, -1.57, -1.57, 0.00], # back to home
],
)
max_velocities = np.array([1.0, 1.0, 1.0, 1.0, 1.0, 1.0])
max_accelerations = np.array([0.5, 0.5, 0.5, 0.5, 0.5, 0.5])
trajectory = mg.Path(waypoints).to_minimal_time_joint_trajectory(
max_velocities=max_velocities,
max_accelerations=max_accelerations,
robot_joint_space=robot_joint_space,
active_joints=arm_joints,
)
print(f"Trajectory duration: {trajectory.duration:.2f} s")
follower = mg.TrajectoryFollower()
follower.set_trajectory(trajectory)
simulation_time = 0.0
if not follower.reset(get_estimated_state(robot, robot_joint_space), None, simulation_time):
raise RuntimeError("Failed to reset TrajectoryFollower")
tutorial_9_arm_trajectory.py — trajectory execution loop
dt = SimulationManager.get_physics_dt()
max_steps = int((trajectory.duration + 1.0) / dt)
frame_count = 0
while app.is_running():
app.update()
if not (app_utils.is_playing() and SimulationManager.is_simulating()):
continue
simulation_time = 0.0
follower.reset(get_estimated_state(robot, robot_joint_space), None, simulation_time)
for _ in range(max_steps):
app.update()
if not (app_utils.is_playing() and SimulationManager.is_simulating()):
break
simulation_time += dt
desired_state = follower.forward(get_estimated_state(robot, robot_joint_space), None, simulation_time)
if desired_state is None:
print("Trajectory complete.")
break
apply_desired_state(robot, desired_state)
frame_count += 1
if args.test and frame_count >= 100:
return
See also
Trajectory Planning and Execution — the
mg.Pathandmg.TrajectoryFollowerAPI used in this part.cuMotion Trajectory Generator Tutorial — generating collision-aware trajectories with cuMotion.
Part 3: Follow Target using cuMotion RMPflow#

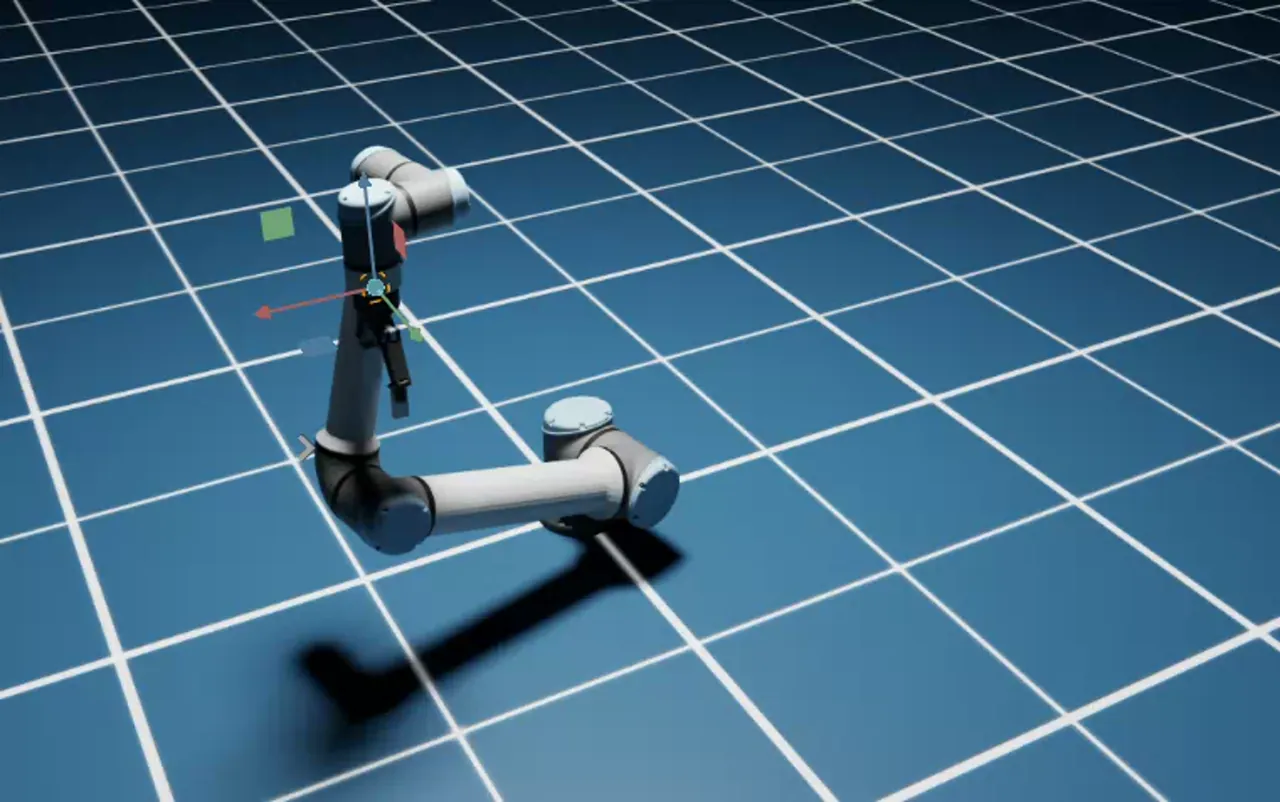

This example shows how to use the cuMotion RmpFlowController to make the robot track a draggable target cube in real time, with optional obstacle avoidance.
./python.sh standalone_examples/tutorials/manipulation/tutorial_9_follow_target.py
To enable obstacle avoidance, pass --with-obstacle:
./python.sh standalone_examples/tutorials/manipulation/tutorial_9_follow_target.py --with-obstacle
Key concepts:
load_cumotion_supported_robot("ur10")loads the built-in cuMotion robot model for the UR10, which includes the kinematic chain and collision spheres.mg.WorldBindingconnects the cuMotion world interface to the Isaac Sim stage. It usesmg.SceneQueryto find collision objects in the scene and registers them as obstacles.RmpFlowControlleris initialized with the robot model, world interface, joint space, and tool frame. It accepts an estimated robot state and a Cartesian setpoint each step, and returns desired joint positions.create_setpoint_statepackages a target position and orientation into anmg.RobotStatethat the controller can track.world_binding.synchronize_transforms()must be called each step to update obstacle transforms before planning.
tutorial_9_follow_target.py — scene and controller setup
async def setup_scene_and_controller(
with_obstacle: bool,
) -> tuple[RmpFlowController, CumotionRobot, Articulation, mg.WorldBinding, GeomPrim]:
assets_root_path = await get_assets_root_path_async()
stage_utils.add_reference_to_stage(
usd_path=assets_root_path + "/Isaac/Samples/Rigging/Manipulator/configure_manipulator/ur10e/ur/ur_gripper.usd",
path=_ROBOT_PRIM_PATH,
)
GroundPlane("/World/GroundPlane")
DomeLight("/World/DomeLight").set_intensities(1000)
target_cube = Cube(paths=_TARGET_PATH, positions=[[0.35, 0.25, 0.3]], sizes=1.0, scales=[0.05, 0.05, 0.05])
target_object = GeomPrim(paths=target_cube.paths)
await omni.kit.app.get_app().next_update_async()
set_camera_view(eye=[1.5, 1.5, 1.0], target=[0.5, 0.0, 0.2], camera_prim_path="/OmniverseKit_Persp")
articulation = Articulation(_ROBOT_PRIM_PATH)
await omni.kit.app.get_app().next_update_async()
if with_obstacle:
Cube("/World/obstacle", sizes=0.05, positions=[0.35, 0.0, 0.55], colors=(1.0, 0.0, 0.0))
GeomPrim("/World/obstacle", apply_collision_apis=True)
robot_pos, robot_ori = articulation.get_world_poses()
objects = mg.SceneQuery().get_prims_in_aabb(
search_box_origin=robot_pos.numpy()[0],
search_box_minimum=[-10.0, -10.0, -10.0],
search_box_maximum=[10.0, 10.0, 10.0],
tracked_api=mg.TrackableApi.PHYSICS_COLLISION,
exclude_prim_paths=[_ROBOT_PRIM_PATH, _TARGET_PATH],
)
obstacle_strategy = mg.ObstacleStrategy()
for prim_type in (Mesh, Cone, Cylinder, Cube):
obstacle_strategy.set_default_configuration(prim_type, mg.ObstacleConfiguration("obb", 0.05))
world_binding = mg.WorldBinding(
world_interface=CumotionWorldInterface(),
obstacle_strategy=obstacle_strategy,
tracked_prims=objects,
tracked_collision_api=mg.TrackableApi.PHYSICS_COLLISION,
)
world_binding.initialize()
world_binding.get_world_interface().update_world_to_robot_root_transforms(poses=(robot_pos, robot_ori))
world_binding.synchronize_transforms()
if args.xrdf_dir is not None:
cumotion_robot = load_cumotion_robot(
directory=args.xrdf_dir,
urdf_filename=args.urdf,
xrdf_filename=args.xrdf,
)
else:
cumotion_robot = load_cumotion_supported_robot("ur10")
site_space = cumotion_robot.robot_description.tool_frame_names()
controller = RmpFlowController(
cumotion_robot=cumotion_robot,
cumotion_world_interface=world_binding.get_world_interface(),
robot_joint_space=articulation.dof_names,
robot_site_space=site_space,
tool_frame=site_space[0],
)
controller.get_rmp_flow_config().set_param("cspace_target_rmp/metric_scalar", 1.0)
controller.get_rmp_flow_config().set_param("collision_rmp/metric_scalar", 10000.0)
return controller, cumotion_robot, articulation, world_binding, target_object
tutorial_9_follow_target.py — per-step control loop
def run_step(
controller: RmpFlowController,
cumotion_robot: CumotionRobot,
articulation: Articulation,
world_binding: mg.WorldBinding,
target_object: GeomPrim,
t: float,
) -> None:
world_binding.get_world_interface().update_world_to_robot_root_transforms(articulation.get_world_poses())
world_binding.synchronize_transforms()
estimated = get_estimated_state(articulation)
setpoint = create_setpoint_state(cumotion_robot, target_object)
desired = controller.forward(estimated, setpoint, t)
if desired is not None and desired.joints.positions is not None:
articulation.set_dof_position_targets(
positions=desired.joints.positions,
dof_indices=desired.joints.position_indices,
)
See also
cuMotion RMPflow Tutorial — in-depth walkthrough of
RmpFlowControllerconfiguration and tuning.cuMotion World Interface Tutorial — details on
CumotionWorldInterface,SceneQuery, andWorldBinding.Scene Interaction — the underlying Motion Generation API for discovering and synchronizing obstacles from the USD scene.
Part 4: Pick and Place#
This example puts it all together by implementing a pick-and-place sequence. Two example scripts are provided: one using cuMotion RMPflow and one using PINK differential IK.
cuMotion RMPflow#
Important
cuMotion requires a tool_frames entry in the XRDF. See Adding a Tool to the Robot Configuration.
./python.sh standalone_examples/tutorials/manipulation/tutorial_9_pick_place_cumotion.py \
--xrdf-dir /path/to/robot/config
Note
--xrdf-dir should point to the directory containing the robot URDF and XRDF files made in the previous tutorial. --urdf and --xrdf select the filenames within that directory and default to robot.urdf and robot.xrdf, respectively.
If no --xrdf-dir is provided, load_cumotion_supported_robot("ur10") will be used to load the built-in UR10 robot configuration.
Key concepts:
--xrdf-dir(optional) points to the directory containing custom robot config files.load_cumotion_robotloads the URDF and XRDF from that directory using the filenames given by--urdfand--xrdf. If omitted, the built-in UR10 configuration is used viaload_cumotion_supported_robot("ur10").RmpFlowController.get_rmp_flow_config().set_param(key, value)allows tuning RMPflow parameters at runtime. For this example,cspace_target_rmp/metric_scalaris reduced to 1.0 to reduce the influence of the initial position error on the motion planning.controller.reset(estimated_state, setpoint, t)must be called at the start of each arm motion segment to re-initialize the planner from the current robot state.
tutorial_9_pick_place_cumotion.py — UR10ePickPlace state machine class
class UR10ePickPlace:
"""Pick-and-place controller for the UR10e + 2F-140 gripper using cuMotion RMPflow.
Phases:
0 Pre-grasp — arm moves above the cube
1 Approach — arm descends to grasp height
2 Grasp — gripper closes
3 Lift — arm rises with the cube
4 Transport — arm moves above the target location
5 Lower — arm descends to place height
6 Release — gripper opens
7 Retract — arm lifts away
"""
_ROBOT_PRIM_PATH = "/World/ur10e_robot"
_CUBE_PRIM_PATH = "/World/cube"
_EE_LINK_NAME = "right_inner_finger"
_GRIPPER_JOINT = "finger_joint"
_OPEN_POS: float = 0.0
_CLOSED_POS: float = 0.5
_ABOVE_HEIGHT: float = 0.50
_NEAR_HEIGHT: float = 0.185
_TOOL_OFFSET: dict[str, float] = {
"tool0": 0.0,
"wrist_3_link": 0.04,
}
_EE_THRESHOLD: float = 0.02
_GRIPPER_THRESHOLD: float = 0.04
_MIN_STEPS: int = 60
_WARMUP_FRAMES: int = 120
_PHYSICS_DT: float = 1.0 / 60.0
_DOWN_ORI: np.ndarray = transform_utils.euler_angles_to_quaternion(np.array([0.0, np.pi, 0.0])).numpy()
_PHASE_LABELS: tuple[str, ...] = (
"Pre-grasp: moving above cube",
"Approach: descending to cube",
"Grasp: closing gripper",
"Lift: raising arm",
"Transport: moving to target",
"Lower: descending to place",
"Release: opening gripper",
"Retract: lifting arm away",
)
def __init__(
self,
xrdf_dir: str | None = None,
urdf_filename: str = "robot.urdf",
xrdf_filename: str = "robot.xrdf",
cube_position: np.ndarray | None = None,
target_position: np.ndarray | None = None,
events_dt: list[int] | None = None,
) -> None:
self._xrdf_dir = xrdf_dir
self._urdf_filename = urdf_filename
self._xrdf_filename = xrdf_filename
self.cube_position = cube_position if cube_position is not None else np.array([0.5, 0.0, 0.025])
self.target_position = target_position if target_position is not None else np.array([0.5, 0.5, 0.05])
self.events_dt = events_dt or [250, 150, 100, 50, 150, 100, 100, 100]
self._event: int = 0
self._step: int = 0
self._t: float = 0.0
self._warmup_remaining: int = self._WARMUP_FRAMES
self._articulation: Articulation | None = None
self._ee_prim: GeomPrim | None = None
self._finger_idx: int | None = None
self._cumotion_robot: CumotionRobot | None = None
self._controller: RmpFlowController | None = None
self._world_binding: mg.WorldBinding | None = None
self._tool_frame: str | None = None
self._site_space: list[str] | None = None
async def setup_scene(self) -> None:
"""Build the scene and initialize the RMPflow controller."""
assets_root_path = await get_assets_root_path_async()
stage_utils.add_reference_to_stage(
usd_path=assets_root_path
+ "/Isaac/Samples/Rigging/Manipulator/configure_manipulator/ur10e/ur/ur_gripper.usd",
path=self._ROBOT_PRIM_PATH,
)
GroundPlane("/World/GroundPlane")
DomeLight("/World/DomeLight").set_intensities(1000)
cube_obj = Cube(
paths=self._CUBE_PRIM_PATH, positions=[self.cube_position], sizes=1.0, scales=[0.05, 0.05, 0.05]
)
RigidPrim(paths=cube_obj.paths)
GeomPrim(paths=cube_obj.paths, apply_collision_apis=True)
await omni.kit.app.get_app().next_update_async()
set_camera_view(eye=[1.5, 1.5, 1.0], target=[0.5, 0.0, 0.2], camera_prim_path="/OmniverseKit_Persp")
self._articulation = Articulation(self._ROBOT_PRIM_PATH)
await omni.kit.app.get_app().next_update_async()
robot_pos, robot_ori = self._articulation.get_world_poses()
objects = mg.SceneQuery().get_prims_in_aabb(
search_box_origin=robot_pos.numpy()[0],
search_box_minimum=[-10.0, -10.0, -10.0],
search_box_maximum=[10.0, 10.0, 10.0],
tracked_api=mg.TrackableApi.PHYSICS_COLLISION,
exclude_prim_paths=[self._ROBOT_PRIM_PATH, self._CUBE_PRIM_PATH],
)
obstacle_strategy = mg.ObstacleStrategy()
for prim_type in (Mesh, Cone, Cylinder):
obstacle_strategy.set_default_configuration(prim_type, mg.ObstacleConfiguration("obb", 0.01))
self._world_binding = mg.WorldBinding(
world_interface=CumotionWorldInterface(),
obstacle_strategy=obstacle_strategy,
tracked_prims=objects,
tracked_collision_api=mg.TrackableApi.PHYSICS_COLLISION,
)
self._world_binding.initialize()
self._world_binding.get_world_interface().update_world_to_robot_root_transforms(poses=(robot_pos, robot_ori))
self._world_binding.synchronize_transforms()
if self._xrdf_dir is not None:
self._cumotion_robot = load_cumotion_robot(
directory=self._xrdf_dir,
urdf_filename=self._urdf_filename,
xrdf_filename=self._xrdf_filename,
)
else:
self._cumotion_robot = load_cumotion_supported_robot("ur10")
tool_frames = self._cumotion_robot.robot_description.tool_frame_names()
if len(tool_frames) == 0:
raise ValueError("No tool frames found in the robot description.")
self._tool_frame = tool_frames[0]
if self._tool_frame not in self._TOOL_OFFSET:
raise ValueError(
f"Tool frame '{self._tool_frame}' has no entry in _TOOL_OFFSET. "
f"Add it: {list(self._TOOL_OFFSET.keys())}"
)
self._site_space = tool_frames
self._controller = RmpFlowController(
cumotion_robot=self._cumotion_robot,
cumotion_world_interface=self._world_binding.get_world_interface(),
robot_joint_space=self._articulation.dof_names,
robot_site_space=self._site_space,
tool_frame=self._tool_frame,
)
cfg = self._controller.get_rmp_flow_config()
# cspace_target_rmp weights delta error from initial position
# doesn't really matter in our case so decrease from default 50 to 1.0
cfg.set_param("cspace_target_rmp/metric_scalar", 1.0)
def initialize_after_play(self) -> None:
"""Resolve EE link and gripper DOF index. Call once after physics starts."""
link_names = self._articulation.link_names
if self._EE_LINK_NAME in link_names:
self._ee_prim = GeomPrim(paths=self._articulation.link_paths[0][link_names.index(self._EE_LINK_NAME)])
else:
print(f"WARNING: '{self._EE_LINK_NAME}' not found. Available: {link_names}")
dof_names = self._articulation.dof_names
if self._GRIPPER_JOINT in dof_names:
self._finger_idx = dof_names.index(self._GRIPPER_JOINT)
else:
print(f"WARNING: '{self._GRIPPER_JOINT}' not found. Available: {dof_names}")
n_dofs = len(dof_names)
init_pos = np.zeros(n_dofs)
self._articulation.set_dof_positions(init_pos.tolist())
self._articulation.set_dof_position_targets(init_pos.tolist())
def _phase_ee_target(self) -> np.ndarray:
c, p = self.cube_position, self.target_position
offset = self._TOOL_OFFSET[self._tool_frame]
hi = self._ABOVE_HEIGHT + offset
lo = self._NEAR_HEIGHT + offset
targets = {
0: [c[0], c[1], c[2] + hi],
1: [c[0], c[1], c[2] + lo],
2: [c[0], c[1], c[2] + lo],
3: [c[0], c[1], c[2] + hi],
4: [p[0], p[1], p[2] + hi],
5: [p[0], p[1], p[2] + lo],
6: [p[0], p[1], p[2] + lo],
7: [p[0], p[1], p[2] + hi],
}
return np.array(targets[self._event], dtype=np.float32)
def _make_setpoint(self, position: np.ndarray) -> mg.RobotState:
return mg.RobotState(
sites=mg.SpatialState.from_name(
spatial_space=self._site_space,
positions=([self._tool_frame], wp.array([position.tolist()], dtype=wp.float32)),
orientations=([self._tool_frame], wp.array([self._DOWN_ORI.tolist()], dtype=wp.float32)),
),
)
def _estimated_state(self) -> mg.RobotState:
names = self._articulation.dof_names
return mg.RobotState(
joints=mg.JointState.from_name(
robot_joint_space=names,
positions=(names, self._articulation.get_dof_positions()),
velocities=(names, self._articulation.get_dof_velocities()),
)
)
def _set_gripper(self, pos: float) -> None:
if self._finger_idx is not None:
self._articulation.set_dof_position_targets(
wp.array([pos], dtype=wp.float32), dof_indices=[self._finger_idx]
)
def _ee_near_target(self) -> bool:
if self._ee_prim is None:
return False
ee_pos = self._ee_prim.get_world_poses()[0].numpy()[0]
return bool(np.linalg.norm(ee_pos - self._phase_ee_target()) < self._EE_THRESHOLD)
def _gripper_at(self, target: float) -> bool:
if self._finger_idx is None:
return False
pos = float(self._articulation.get_dof_positions().numpy().flatten()[self._finger_idx])
return abs(pos - target) < self._GRIPPER_THRESHOLD
def _phase_converged(self) -> bool:
if self._step < self._MIN_STEPS:
return False
if self._event == 2:
return self._gripper_at(self._CLOSED_POS)
if self._event == 6:
return self._gripper_at(self._OPEN_POS)
return self._ee_near_target()
def forward(self) -> bool:
"""Advance one simulation step. Returns False when the sequence is complete."""
if self.is_done():
return False
if self._warmup_remaining > 0:
n_dofs = len(self._articulation.dof_names)
targets = np.zeros(n_dofs)
self._articulation.set_dof_position_targets(
wp.array(targets, dtype=wp.float32), dof_indices=list(range(n_dofs))
)
self._warmup_remaining -= 1
if np.abs(self._articulation.get_dof_positions().numpy().flatten() - targets).max() < 0.1:
self._warmup_remaining = 0
return True
if self._step == 0:
print(f" Phase {self._event}: {self._PHASE_LABELS[self._event]}")
if self._event in (0, 3, 7):
if not self._controller.reset(
self._estimated_state(), self._make_setpoint(self._phase_ee_target()), t=0.0
):
raise RuntimeError("RmpFlowController reset failed.")
self._t = 0.0
if self._event == 2:
self._set_gripper(self._CLOSED_POS)
elif self._event == 6:
self._set_gripper(self._OPEN_POS)
else:
self._world_binding.get_world_interface().update_world_to_robot_root_transforms(
self._articulation.get_world_poses()
)
self._world_binding.synchronize_transforms()
desired = self._controller.forward(
self._estimated_state(), self._make_setpoint(self._phase_ee_target()), self._t
)
if desired is not None and desired.joints.positions is not None:
self._articulation.set_dof_position_targets(
positions=desired.joints.positions, dof_indices=desired.joints.position_indices
)
self._t += self._PHYSICS_DT
self._step += 1
if self._phase_converged() or self._step >= self.events_dt[self._event]:
if self._step >= self.events_dt[self._event]:
print(f" Phase {self._event} timed out after {self.events_dt[self._event]} frames")
self._event += 1
self._step = 0
return True
def is_done(self) -> bool:
return self._event >= len(self.events_dt)
def reset(self) -> None:
self._event = 0
self._step = 0
self._t = 0.0
self._warmup_remaining = self._WARMUP_FRAMES
See also
cuMotion Integration — overview of the cuMotion integration and its components.
cuMotion Robot Configuration Tutorial — generating the URDF and XRDF files used by
--xrdf-dir, includingtool_frames.cuMotion RMPflow Tutorial — full tutorial on
RmpFlowController, including parameter tuning viaget_rmp_flow_config().set_param.
PINK Differential IK#
This example demonstrates an alternative motion controller: PINK differential IK. The same pick-and-place sequence is implemented using the PinkIKController, which solves inverse kinematics using PINK and Pinocchio.
Run this example with:
# Load the built-in PINK robot model for the UR10
./python.sh standalone_examples/tutorials/manipulation/tutorial_9_pick_place_pink.py
# Load a custom URDF
./python.sh standalone_examples/tutorials/manipulation/tutorial_9_pick_place_pink.py --urdf <path_to_urdf>
Key concepts:
load_pink_supported_robot("ur10")loads the built-in PINK robot model for the UR10, backed by a Pinocchio model. Alternatively, a custom URDF can be loaded usingload_pink_robotby passing in--urdf <path_to_urdf>.PinkIKControlleraccepts a tool frame name, position and orientation costs, a posture cost, and a QP solver ("osqp"). It integrates Cartesian velocity commands into joint positions each step._init_pink_q0setspink_robot.q0to the elbow-up configuration. PINK’s PostureTask regularizes the IK solution toward this reference, steering the solver away from elbow-down or degenerate configurations.
tutorial_9_pick_place_pink.py — UR10ePickPlace state machine class
class UR10ePickPlace:
"""Pick-and-place controller for the UR10e + 2F-140 gripper using PINK differential IK.
Phases:
0 Pre-grasp — arm moves above the cube
1 Approach — arm descends to grasp height
2 Grasp — gripper closes
3 Lift — arm rises with the cube
4 Transport — arm moves above the target location
5 Lower — arm descends to place height
6 Release — gripper opens
7 Retract — arm lifts away
"""
_ROBOT_PRIM_PATH = "/World/ur10e_robot"
_CUBE_PRIM_PATH = "/World/cube"
_EE_LINK_NAME = "tool0" if args.urdf is None else "wrist_3_link"
_GRIPPER_JOINT = "finger_joint"
_TOOL_FRAME = "tool0" if args.urdf is None else "wrist_3_link"
_OPEN_POS: float = 0.0
_CLOSED_POS: float = 0.5
_ABOVE_HEIGHT: float = 0.30
_NEAR_HEIGHT: float = 0.185
_TOOL_OFFSET: dict[str, float] = {
"tool0": 0.0,
"wrist_3_link": 0.035,
}
_EE_THRESHOLD: float = 0.05
_GRIPPER_THRESHOLD: float = 0.05
_MIN_STEPS: int = 30
_WARMUP_FRAMES: int = 120
_PHYSICS_DT: float = 1.0 / 60.0
_POSITION_COST: float = 0.5
_ORIENTATION_COST: float = 1.0
_POSTURE_COST: float = 1e-3
_ELBOW_UP_ARM: np.ndarray = np.array([-np.pi, -np.pi / 2, -np.pi / 2, -np.pi / 2, np.pi / 2, 0.0])
_DOWN_ORI: np.ndarray = np.array([0.0, 0.0, 1.0, 0.0])
_PHASE_LABELS: tuple[str, ...] = (
"Pre-grasp: moving above cube",
"Approach: descending to cube",
"Grasp: closing gripper",
"Lift: raising arm",
"Transport: moving to target",
"Lower: descending to place",
"Release: opening gripper",
"Retract: lifting arm away",
)
def __init__(
self,
urdf_path: str | None = None,
cube_position: np.ndarray | None = None,
target_position: np.ndarray | None = None,
events_dt: list[int] | None = None,
) -> None:
self._urdf_path = urdf_path
self.cube_position = cube_position if cube_position is not None else np.array([0.5, 0.0, 0.025])
self.target_position = target_position if target_position is not None else np.array([0.5, 0.5, 0.05])
self.events_dt = events_dt or [80, 80, 20, 40, 130, 40, 20, 40]
self._event: int = 0
self._step: int = 0
self._t: float = 0.0
self._warmup_remaining: int = self._WARMUP_FRAMES
self._articulation: Articulation | None = None
self._ee_prim: GeomPrim | None = None
self._finger_idx: int | None = None
self._pink_robot: PinkRobot | None = None
self._controller: PinkIKController | None = None
self._tool_frame: str | None = None
async def setup_scene(self) -> None:
"""Build the scene and initialize the PINK IK controller."""
assets_root_path = await get_assets_root_path_async()
stage_utils.add_reference_to_stage(
usd_path=assets_root_path
+ "/Isaac/Samples/Rigging/Manipulator/configure_manipulator/ur10e/ur/ur_gripper.usd",
path=self._ROBOT_PRIM_PATH,
)
GroundPlane("/World/GroundPlane")
DomeLight("/World/DomeLight").set_intensities(1000)
cube_obj = Cube(
paths=self._CUBE_PRIM_PATH, positions=[self.cube_position], sizes=1.0, scales=[0.05, 0.05, 0.05]
)
RigidPrim(paths=cube_obj.paths)
GeomPrim(paths=cube_obj.paths, apply_collision_apis=True)
await omni.kit.app.get_app().next_update_async()
set_camera_view(eye=[1.5, 1.5, 1.0], target=[0.5, 0.0, 0.2], camera_prim_path="/OmniverseKit_Persp")
self._articulation = Articulation(self._ROBOT_PRIM_PATH)
await omni.kit.app.get_app().next_update_async()
n_dofs = len(self._articulation.dof_names)
self._articulation.set_default_state(
dof_positions=np.concatenate([self._ELBOW_UP_ARM, np.zeros(max(0, n_dofs - 6))])
)
if self._urdf_path is not None:
self._pink_robot = load_pink_robot(urdf_path=self._urdf_path)
else:
self._pink_robot = load_pink_supported_robot("ur10")
if self._TOOL_FRAME not in self._TOOL_OFFSET:
raise ValueError(
f"Tool frame '{self._TOOL_FRAME}' has no entry in _TOOL_OFFSET. "
f"Add it: {list(self._TOOL_OFFSET.keys())}"
)
self._init_pink_q0()
self._controller = PinkIKController(
pink_robot=self._pink_robot,
robot_joint_space=self._articulation.dof_names,
robot_site_space=[self._TOOL_FRAME],
tool_frame=self._TOOL_FRAME,
position_cost=self._POSITION_COST,
orientation_cost=self._ORIENTATION_COST,
posture_cost=self._POSTURE_COST,
solver="osqp",
dt=self._PHYSICS_DT,
)
def initialize_after_play(self) -> None:
"""Resolve EE link and gripper DOF index. Call once after physics starts."""
link_names = self._articulation.link_names
if self._EE_LINK_NAME in link_names:
self._ee_prim = GeomPrim(paths=self._articulation.link_paths[0][link_names.index(self._EE_LINK_NAME)])
else:
print(f"WARNING: '{self._EE_LINK_NAME}' not found. Available: {link_names}")
dof_names = self._articulation.dof_names
if self._GRIPPER_JOINT in dof_names:
self._finger_idx = dof_names.index(self._GRIPPER_JOINT)
else:
print(f"WARNING: '{self._GRIPPER_JOINT}' not found. Available: {dof_names}")
self._articulation.reset_to_default_state()
def _init_pink_q0(self) -> None:
"""Set pink_robot.q0 to elbow-up for PostureTask regularization."""
import pinocchio as pin
elbow_up_map = {
"shoulder_pan_joint": -np.pi / 2,
"shoulder_lift_joint": -np.pi / 2,
"elbow_joint": -np.pi / 2,
"wrist_1_joint": -np.pi / 2,
"wrist_2_joint": np.pi / 2,
"wrist_3_joint": 0.0,
}
q0 = pin.neutral(self._pink_robot.model)
for name, angle in elbow_up_map.items():
if self._pink_robot.model.existJointName(name):
jid = self._pink_robot.model.getJointId(name)
q0[self._pink_robot.model.joints[jid].idx_q] = angle
self._pink_robot.q0 = q0
def _phase_ee_target(self) -> np.ndarray:
c, p = self.cube_position, self.target_position
offset = self._TOOL_OFFSET[self._TOOL_FRAME]
hi = self._ABOVE_HEIGHT + offset
lo = self._NEAR_HEIGHT + offset
targets = {
0: [c[0], c[1], c[2] + hi],
1: [c[0], c[1], c[2] + lo],
2: [c[0], c[1], c[2] + lo],
3: [c[0], c[1], c[2] + hi],
4: [p[0], p[1], p[2] + hi],
5: [p[0], p[1], p[2] + lo],
6: [p[0], p[1], p[2] + lo],
7: [p[0], p[1], p[2] + hi],
}
return np.array(targets[self._event], dtype=np.float32)
def _make_setpoint(self, position: np.ndarray) -> mg.RobotState:
return mg.RobotState(
sites=mg.SpatialState.from_name(
spatial_space=[self._TOOL_FRAME],
positions=([self._TOOL_FRAME], wp.array([position.tolist()], dtype=wp.float32)),
orientations=([self._TOOL_FRAME], wp.array([self._DOWN_ORI.tolist()], dtype=wp.float32)),
),
)
def _estimated_state(self) -> mg.RobotState:
names = self._articulation.dof_names
return mg.RobotState(
joints=mg.JointState.from_name(
robot_joint_space=names,
positions=(names, self._articulation.get_dof_positions()),
velocities=(names, self._articulation.get_dof_velocities()),
)
)
def _set_gripper(self, pos: float) -> None:
if self._finger_idx is not None:
self._articulation.set_dof_position_targets(
wp.array([pos], dtype=wp.float32), dof_indices=[self._finger_idx]
)
def _ee_near_target(self) -> bool:
if self._ee_prim is None:
return False
ee_pos = self._ee_prim.get_world_poses()[0].numpy()[0]
return bool(np.linalg.norm(ee_pos - self._phase_ee_target()) < self._EE_THRESHOLD)
def _gripper_at(self, target: float) -> bool:
if self._finger_idx is None:
return False
pos = float(self._articulation.get_dof_positions().numpy().flatten()[self._finger_idx])
return abs(pos - target) < self._GRIPPER_THRESHOLD
def _phase_converged(self) -> bool:
if self._step < self._MIN_STEPS:
return False
if self._event == 2:
return self._gripper_at(self._CLOSED_POS)
if self._event == 6:
return self._gripper_at(self._OPEN_POS)
return self._ee_near_target()
def forward(self) -> bool:
"""Advance one simulation step. Returns False when the sequence is complete."""
if self.is_done():
return False
if self._warmup_remaining > 0:
n_dofs = len(self._articulation.dof_names)
targets = np.concatenate([self._ELBOW_UP_ARM, np.zeros(max(0, n_dofs - 6))])
self._articulation.set_dof_position_targets(
wp.array(targets, dtype=wp.float32), dof_indices=list(range(n_dofs))
)
self._warmup_remaining -= 1
if np.abs(self._articulation.get_dof_positions().numpy().flatten()[:6] - self._ELBOW_UP_ARM).max() < 0.1:
self._warmup_remaining = 0
return True
if self._step == 0:
print(f" Phase {self._event}: {self._PHASE_LABELS[self._event]}")
if self._event in (0, 3, 7):
if not self._controller.reset(
self._estimated_state(), self._make_setpoint(self._phase_ee_target()), t=0.0
):
raise RuntimeError("PinkIKController reset failed.")
self._t = 0.0
if self._event == 2:
self._set_gripper(self._CLOSED_POS)
elif self._event == 6:
self._set_gripper(self._OPEN_POS)
else:
desired = self._controller.forward(
self._estimated_state(), self._make_setpoint(self._phase_ee_target()), self._t
)
if desired is not None and desired.joints.positions is not None:
self._articulation.set_dof_position_targets(
positions=desired.joints.positions, dof_indices=desired.joints.position_indices
)
self._t += self._PHYSICS_DT
self._step += 1
if self._phase_converged() or self._step >= self.events_dt[self._event]:
if self._step >= self.events_dt[self._event]:
print(f" Phase {self._event} timed out after {self.events_dt[self._event]} frames")
self._event += 1
self._step = 0
return True
def is_done(self) -> bool:
return self._event >= len(self.events_dt)
def reset(self) -> None:
self._event = 0
self._step = 0
self._t = 0.0
self._warmup_remaining = self._WARMUP_FRAMES
See also
PINK Integration — overview of the PINK integration and its weighted multi-task IK approach.
PINK IK Controller Tutorial — in-depth walkthrough of
PinkIKController, task weights, posture regularization, and QP solver selection.PINK Robot Configuration Tutorial — loading PINK robot models with
load_pink_supported_robot()andload_pink_robot().
Summary#
In this tutorial, you learned how to:
Control the 2F-140 gripper using the Articulation API and
set_dof_position_targets.Plan and execute joint-space trajectories using
mg.Pathandmg.TrajectoryFollower.Use the cuMotion
RmpFlowControllerto track a Cartesian target in real time with obstacle avoidance.Implement an 8-phase pick-and-place sequence with cuMotion RMPflow.
Implement the same sequence with PINK differential IK as an alternative CPU-based solver.
