Conveyor Belt Utility

About

The Conveyor Belt Utility extension turns rigid bodies into conveyors in NVIDIA Isaac Sim.

Note

For a more customizable approach to conveyor belt simulation, see Custom conveyor belt simulation.

Usage

To enable the extension:

1. Select Window > Extensions.

2. Search for conveyor.

3. Select isaacsim.asset.gen.conveyor.ui and click Enable. This enables both the extension and its UI.

To load the extension automatically on startup, click Autoload near the top of the isaacsim.asset.gen.conveyor.ui information pane in the extension manager.

To create a conveyor:

1. Select a rigid body or a mesh in the stage.

2. Choose Create > Isaac Sim > Warehouse Items > Conveyor to create an Omniverse OmniGraph node that drives conveyor speed and animation. The node exposes the following properties:

   • conveyorPrim: The target prim that receives the conveyor velocity. If the prim is not a rigid body, it is configured as one automatically with default collision models. Only a single prim is allowed per ConveyorNode.

   • Animate Direction: Texture animation direction in the UV map.

   • Animate Scale: Ratio between conveyor velocity and texture animation speed.

   • Animate Texture: Enables texture animation.

   • Curved: Marks the conveyor as curved. When set, the node applies angular velocity instead of linear velocity. The angular velocity is applied along the Direction vector, which acts as the rotation axis. Scaling the Direction vector adjusts the velocity: values greater than 1 increase the effective curvature radius and values less than 1 decrease it. For example, (0, 0, 1) rotates about the Z axis.

   • Direction: Conveyor velocity direction in local coordinates.

   • Enabled: Enables or disables the conveyor.

   • Velocity: Conveyor velocity.

The generated Omniverse OmniGraph is preconfigured with a velocity variable that you can edit by selecting the Omniverse OmniGraph prim. To synchronize multiple conveyors in a scene, point each conveyor’s read-variable node (read_speed) at the same Omniverse OmniGraph variable.

To emulate belt motion visually, apply a tiled texture and set the Animate properties so the texture translates along the same direction as the conveyor and at a matching speed.

Alternatively, define your own Omniverse OmniGraph and add ConveyorNode instances to it. This lets you manage multiple conveyors from a single graph.

For convenience, the Isaac Sim assets package includes prebuilt conveyor pieces at Isaac/Props/Conveyors.

When authoring conveyor behavior for these assets, select the Belt or Rollers prim. Those prims contain the meshes that define the conveyor surface.

Digital twin library conveyor system generator

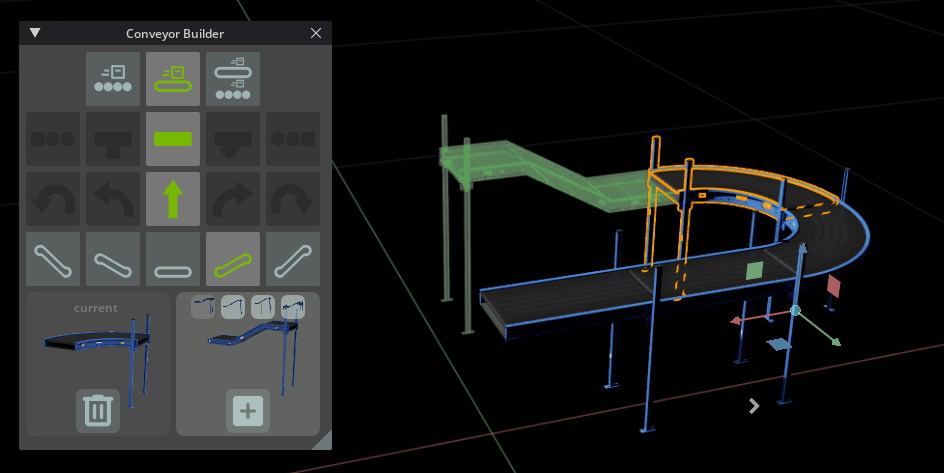

To support digital twin authoring, a conveyor system generator is available at Tools > Conveyor Track Builder. The utility ships with the Digital Twin asset pack for conveyors, and it also accepts custom datasets by pointing the configuration file at a different asset folder.

When the current selection is a component from the conveyor dataset, the builder attempts to connect the new piece to one of the existing conveyor endpoints defined by the configuration. Otherwise, it parents the new piece under the current selection.

The builder integrates loosely with the assets to keep system creation flexible while applying a minimal rule set. As a tradeoff, completed systems may require small manual cleanup, but the loose coupling lets you fully customize each track after it has been placed.

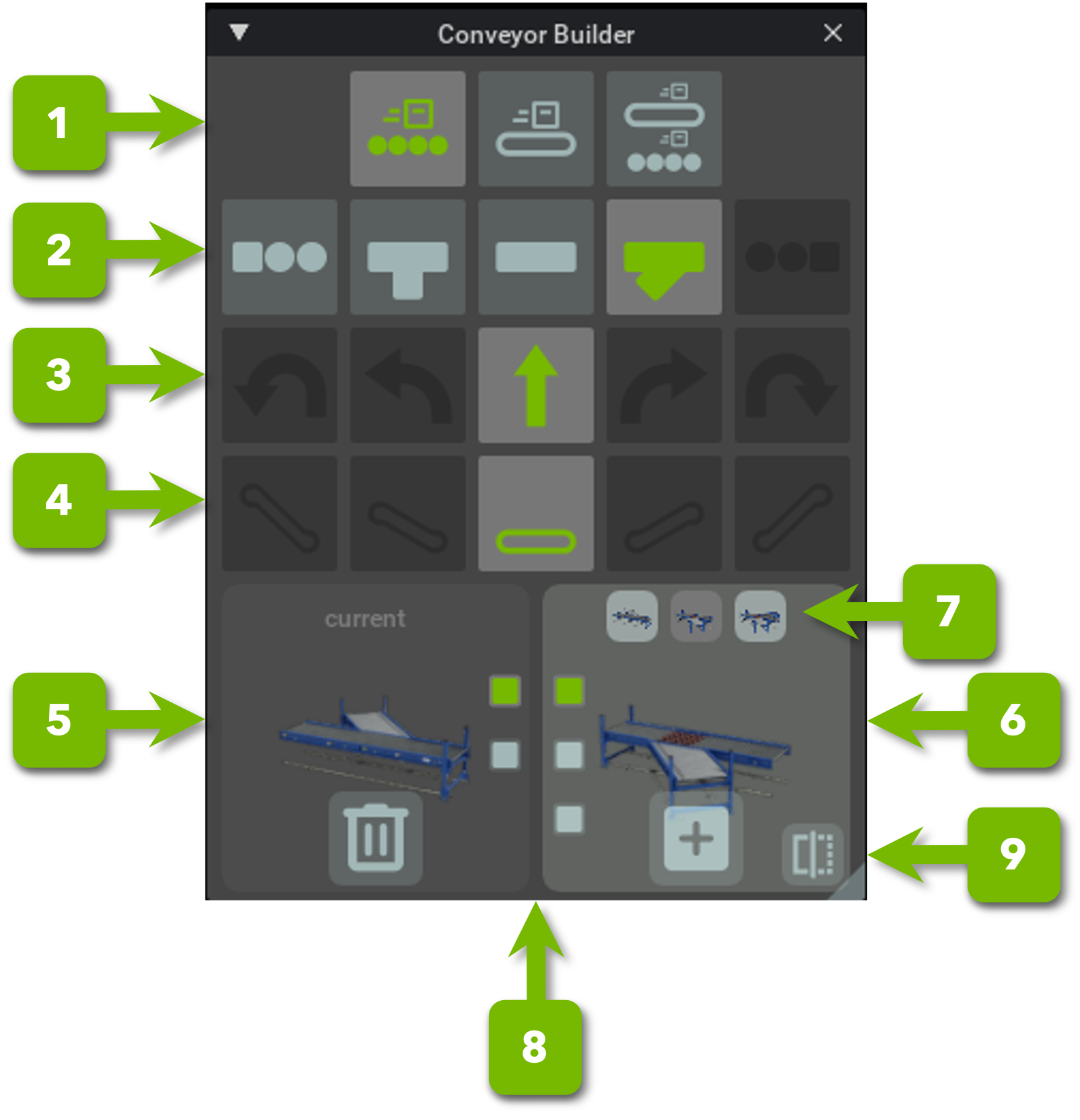

User interface

Ref #	Option	Description
1	Conveyor Style	Available conveyor styles: Roller, Belt, or Dual.
2	Track Type	Available track types: Start, straight, T-split, Y-split, or end.
3	Curvature	Track curvature: None, Half (typically 90 degrees), or Full (typically 180 degrees), to the left or right.
4	Elevation	Track elevation, measured in levels relative to the entry point, either up or down.
5	Selected Track	Shows the currently selected track, its endpoints, and a Delete button that removes the track from the system.
6	New Track	Shows the piece queued for insertion. Lets you choose the input endpoint and the track variant, and, when applicable, mirror the piece.
7	Track Variants	Shows additional variants matching the current filter selection.
8	Selected Endpoint	Each option corresponds to one of the track’s endpoints. Endpoints that are already in use are hidden unless all endpoints are connected.
9	Mirror	Mirrors the selected piece along the primary belt direction.

Dataset

The dataset is a collection of USD files used to assemble conveyor systems. Each USD file must:

• Define a default prim. That prim and all of its children load when the asset is referenced.

• Use an identity transform on the default prim (translate and rotate components set to zero).

• Define each conveyor track as an Xform prim, with all visual and collision meshes parented under it.

• Place the track’s entry point at the origin, aligned with the X axis, centered on the Y axis.

• Place anchor points at the end of the track at Z = 0, centered on the Y axis. The X axis must be aligned with the base direction of the track.

• Assign individual materials per track. Meshes that share the same conveyor base prim may share materials.

• Live under a single base folder. Assets may still reference files outside that folder.

A JSON file accompanies the asset dataset. It provides the metadata required by the UI workflow and the parameters used to configure conveyor physics when the source assets do not already embed them.

{
    "assets": {
        "ConveyorBelt_A01": {  // File name of the asset, without the extension.
            "style": "DUAL",  // Conveyor style, can be ROLLER, BELT, or DUAL
            "start_level": 0,  // Conveyor level for the track, can be any positive number
            "angle": "HALF",  // Conveyor turn type, can be NONE, HALF, FULL"
            "curvature": "SMALL",  // Conveyor radius of curvature, can be NONE, SMALL, MEDIUM, LARGE. Currently not used by the filter.
            "ramp": "FLAT",  // Ramp level. How many levels it increases or decreases start level, can be FLAT, ONE, TWO, THREE, FOUR.
            "type": "STRAIGHT",  // Track Type, can be START, STRAIGHT (used for all single track types, including curves and ramps), Y_MERGE, T_MERGE, FORK_MERGE, END.
            "anchors": [  // All Prim children paths that correspond to  endpoints on the asset.
                "",  // This is the root of the conveyor, which is also an endpoint.
                "/Anchorpoint"  // For all the other anchors, keep the trailing / on the child prim name
            ],
            "conveyor_nodes": {  // All Child Prims to be configured as conveyors using the OmniGraph node. Each track should have its own configuration (in the case of merge and splits), even if it's of the same style
                "Rollers": {
                    "animate_scale": 0.01,
                    "animate_direction": [0.0, 1.0],
                    "direction": [1.0, 0.0, -37.0],
                    "curved": true
                },
                "Belt": {
                    "animate_scale": 0.5,
                    "animate_direction": [1.0, 0.0],
                    "direction": [0, 0.0, -37.0],
                    "curved": true
                }
            }
        }
    }
}

Note

Strict JSON does not allow comments. The snippet above includes inline comments only to explain each field. Remove the comments before using the file, otherwise the extension will fail to load it. For a complete reference, see the JSON file in the extension’s data folder.

Changing the configuration and dataset source

To replace the dataset and configuration file with your own:

1. Go to Edit > Preferences > Conveyor Builder.

2. Set the configuration file path and the Conveyor Assets Location. The assets must reside directly inside the folder listed in Conveyor Assets Location.

To restore the original settings, click Reset To Default.

Improving load time

By default, the tool reads assets from the cloud-hosted assets folder and downloads each asset the first time it is used. This can introduce noticeable load times. To reduce them, download the assets locally and point the Conveyor Assets Location at the local folder.

Available tracks

Custom conveyor belt simulation

As an alternative to the built-in physics simulation, you can compute the friction forces between conveyor belt surfaces and the rigid bodies they transport with custom logic. This approach gives you direct control over the friction model and makes it easier to handle cases where a rigid body contacts multiple conveyor belts running at different speeds.

The conveyor belt standalone example demonstrates one such implementation. It is located in standalone_examples/conveyor_belt. To run the sample, use the NVIDIA Isaac Sim Python launcher (python.sh on Linux or python.bat on Windows). The entry point is cb_app.py:

./python.sh ./standalone_examples/conveyor_belt/cb_app.py

The sample registers transported rigid bodies and conveyor belt sections up front. Two helper classes manage the registration: BodyManager and ConveyorBeltManager. Once all rigid bodies and conveyor belt sections are registered, these classes allocate the data buffers required for the custom force computation. The registration sequence is shown in cb_scene.py, which builds the conveyor belt circuit and the transported rigid bodies.

Register a rigid body to be transported by the conveyor belts as follows:

body_manager.add_body(
    "/World/body0",
    body_material0_index
)

The method takes the rigid body’s USD prim path and a material index. Material indices come from another helper class, MaterialPairManager. Because the sample computes friction forces itself, the physics materials used by the built-in simulation must use a friction coefficient of zero. Otherwise, the built-in friction forces would compound with the custom forces. The sample sidesteps this by defining its own material system and assigning friction coefficients to material pairs:

body_material0_index = material_pair_manager.add_transported_body_material_index()

conveyor_belt_material0_index = material_pair_manager.add_conveyor_belt_material_index()

material_pair_manager.set_material_pair_friction(body_material0_index, conveyor_belt_material0_index, 0.9)

Belt motion is described by velocity fields. The sample implements two field types:

• A constant velocity field for straight conveyor belt sections.

• A pivot-point velocity field for curved (turning) conveyor belt sections.

The helper class VelocityFieldActuator creates these fields. Given a velocity field, register a conveyor belt section as follows:

target_velocity = wp.vec3(0.0, 0.5, 0.0)

velocity_field_id = velocity_field_actuator.add_constant_velocity_field(
    target_velocity,
)

surface_normal = wp.vec3(0.0, 0.0, 1.0)

conveyor_belt_manager.add_conveyor_belt(
    "/World/conveyor_belt0",
    VELOCITY_FIELD_TYPE_CONSTANT_VELOCITY,
    velocity_field_id,
    surface_normal,
    conveyor_belt_contact_processing_threshold,
    conveyor_belt_material0_index,
)

This call requires the USD path of the geometry prim representing the conveyor belt section, the velocity field type, and the velocity field ID. As with rigid body registration, a material index is required. See the sample source for details on the remaining parameters.

After all rigid bodies and conveyor belt sections are registered, the helper classes allocate the buffers used to compute the friction forces. The full set of registered prims is also used to construct an isaacsim.core.prims.RigidPrim view. This view exposes the rigid body simulation state and, in particular, the detailed contact information needed to derive the custom friction forces. The sample uses Omniverse Warp to implement the force computation, which keeps most of the data on the GPU.

For a deeper walkthrough, including a per-file summary, advantages, disadvantages, current limitations, and proposed extensions, see standalone_examples/conveyor_belt/README.md.
