[isaacsim.robot.surface_gripper] Isaac Sim Surface Gripper#

Version: 3.2.2

Helper to model Suction and Distance based grippers

Enable Extension#

The extension can be enabled (if not already) in one of the following ways:

Command-line interface

Define the next entry as an application argument from a terminal.

APP_SCRIPT.(sh|bat) --enable isaacsim.robot.surface_gripper

Experience/extension configuration

Define the next entry under [dependencies] in an experience (.kit) file or an extension configuration (extension.toml) file.

[dependencies]
"isaacsim.robot.surface_gripper" = {}

Extension Manager UI

Open the Window > Extensions menu in a running application instance and search for isaacsim.robot.surface_gripper. Then, toggle the enable control button if it is not already active.

API#

Python API#

`CreateSurfaceGripper`	Creates Action graph containing a Surface Gripper node, and all prims to facilitate its creation
`GripperView`	Provides high level functions to deal with batched data from surface gripper
`_surface_gripper.SurfaceGripperInterface`

class CreateSurfaceGripper(*args: Any, **kwargs: Any)#

Bases: Command

Creates Action graph containing a Surface Gripper node, and all prims to facilitate its creation

Typical usage example:

result, prim  = omni.kit.commands.execute(
        "CreateSurfaceGripper",
        prim_path="/SurfaceGripper",
    )

class SurfaceGripperInterface#

Bases: pybind11_object

close_gripper( self: isaacsim.robot.surface_gripper._surface_gripper.SurfaceGripperInterface, prim_path: str, ) → bool#: Closes a surface gripper at the specified USD path.

get_gripped_objects( self: isaacsim.robot.surface_gripper._surface_gripper.SurfaceGripperInterface, prim_path: str, ) → List[str]#: Gets a list of objects currently gripped by the specified gripper.

get_gripper_status( self: isaacsim.robot.surface_gripper._surface_gripper.SurfaceGripperInterface, prim_path: str, ) → str#: Gets the status of a surface gripper at the specified USD path.

open_gripper( self: isaacsim.robot.surface_gripper._surface_gripper.SurfaceGripperInterface, prim_path: str, ) → bool#: Opens a surface gripper at the specified USD path.

set_gripper_action( self: isaacsim.robot.surface_gripper._surface_gripper.SurfaceGripperInterface, prim_path: str, action: float, ) → bool#: Sets the action of a surface gripper at the specified USD path.

Bases: XformPrim

Provides high level functions to deal with batched data from surface gripper

Parameters:

paths – Prim paths regex to encapsulate all prims that match it. E.g.: “/World/Env[1-5]/Gripper” will match /World/Env1/Gripper, /World/Env2/Gripper..etc. Additionally a list of regex can be provided.
max_grip_distance – Maximum distance for which the surface gripper can gripped an object. Shape is (N). Defaults to None, which means left unchanged.
coaxial_force_limit – Maximum coaxial force that the surface gripper can withstand without dropping the gripped object. Shape is (N). Defaults to None, which means left unchanged.
shear_force_limit – Maximum shear force that the surface gripper can withstand without dropping the gripped object. Shape is (N). Defaults to None, which means left unchanged.
retry_interval – Indicates the duration for which the surface gripper is attempting to grip an object. Defaults to None, which means left unchanged.
positions – Default positions in the world frame of the prim. Shape is (N, 3). Defaults to None, which means left unchanged.
translations – Default translations in the local frame of the prims (with respect to its parent prims). shape is (N, 3). Defaults to None, which means left unchanged.
orientations – Default quaternion orientations in the world/ local frame of the prim (depends if translation or position is specified). Quaternion is scalar-first (w, x, y, z). Shape is (N, 4). Defaults to None, which means left unchanged.
scales – Local scales to be applied to the prim’s dimensions. Shape is (N, 3). Defaults to None, which means left unchanged.
reset_xform_properties – True if the prims don’t have the right set of xform properties (i.e: translate, orient and scale) ONLY and in that order. Set this parameter to False if the object were cloned using using the cloner api in isaacsim.core.cloner. Defaults to True.

Raises:

Exception – if translations and positions defined at the same time.
Exception – No prim was matched using the prim_paths_expr provided.

apply_gripper_action( values: list[float], indices: list | np.ndarray | wp.array | None = None, ) → None#

Set up the status for the surface grippers.

Parameters:

values – New status of the surface gripper. Shape (N,). Where N is the number of encapsulated prims in the view.
indices – Specific surface gripper to update. Shape (M,). Where M <= size of the encapsulated prims in the view. Defaults to None (i.e: all prims in the view).

Raises:

Exception – If the length of values does not match the number of encapsulated prims in the view.
Exception – If a value in indices is larger then the number of encapsulated prims in the view.

Apply visual materials to the prims, and optionally, to their descendants.

Backends: usd.

Parameters:

visual_materials – Visual materials to be applied to the prims (shape (N, 1)). If the input shape is smaller than expected, data will be broadcasted (following NumPy broadcast rules).
weaker_than_descendants – Boolean flags to indicate whether descendant materials should be overridden (shape (N, 1)). If the input shape is smaller than expected, data will be broadcasted (following NumPy broadcast rules).
indices – Indices of prims to process (shape (N,)). If not defined, all wrapped prims are processed.

Raises:

AssertionError – Wrapped prims are not valid.

Example:

>>> from isaacsim.core.experimental.materials import OmniGlassMaterial
>>>
>>> # create a dark-red glass visual material
>>> material = OmniGlassMaterial("/World/material/glass")
>>> material.set_input_values("glass_ior", [1.25])
>>> material.set_input_values("depth", [0.001])
>>> material.set_input_values("thin_walled", [False])
>>> material.set_input_values("glass_color", [0.5, 0.0, 0.0])
>>>
>>> prims.apply_visual_materials(material)

static ensure_api(

prims: list[Usd.Prim],

api: type,

*args,

**kwargs,

) → list[type['UsdAPISchemaBase']]#

Ensure that all prims have the specified API schema applied.

Backends: usd.

If a prim doesn’t have the API schema, it will be applied. If it already has it, the existing API schema will be returned.

Parameters:

prims – List of USD Prims to ensure API schema on.
api – The API schema type to ensure.
*args – Additional positional arguments passed to API schema when applying it.
**kwargs – Additional keyword arguments passed to API schema when applying it.

Returns:

List of API schema objects, one for each input prim.

Example:

>>> import isaacsim.core.experimental.utils.prim as prim_utils
>>> from pxr import UsdPhysics
>>> from isaacsim.core.experimental.prims import Prim
>>>
>>> # given a USD stage with 3 prims at paths /World/prim_0, /World/prim_1, /World/prim_2,
>>> # ensure all prims have physics API schema
>>> usd_prims = [prim_utils.get_prim_at_path(f"/World/prim_{i}") for i in range(3)]
>>> physics_apis = Prim.ensure_api(usd_prims, UsdPhysics.RigidBodyAPI)

get_applied_visual_materials( *, indices: list | np.ndarray | wp.array | None = None, ) → list[type['VisualMaterial'] | None]#

Get the applied visual materials.

Backends: usd.

Parameters:: indices – Indices of prims to process (shape (N,)). If not defined, all wrapped prims are processed.
Returns:: List of applied visual materials (shape (N,)). If a prim does not have a material, None is returned.
Raises:: AssertionError – Wrapped prims are not valid.

Example:

>>> # get the applied visual material of the last wrapped prim
>>> prims.get_applied_visual_materials(indices=[2])[0]
<isaacsim.core.experimental.materials.impl.visual_materials.omni_glass.OmniGlassMaterial object at 0x...>

Get the default state (positions and orientations) of the prims.

Backends: usd.

Parameters:

indices – Indices of prims to process (shape (N,)). If not defined, all wrapped prims are processed.

Returns:

Two-elements tuple. 1) The default positions in the world frame (shape (N, 3)). 2) The default orientations in the world frame (shape (N, 4), quaternion wxyz). If the default state is not set using the set_default_state() method, None is returned.

Raises:

AssertionError – Wrapped prims are not valid.
AssertionError – If prims are non-root articulation links.

get_local_poses( *, indices: list | np.ndarray | wp.array | None = None, ) → tuple[wp.array, wp.array]#

Get the poses (translations and orientations) in the local frame of the prims.

Backends: usd, usdrt, fabric.

Parameters:: indices – Indices of prims to process (shape (N,)). If not defined, all wrapped prims are processed.
Returns:: Two-elements tuple. 1) The translations in the local frame (shape (N, 3)). 2) The orientations in the local frame (shape (N, 4), quaternion wxyz).
Raises:: AssertionError – Wrapped prims are not valid.

Example:

>>> # get the local poses of all prims
>>> translations, orientations = prims.get_local_poses()
>>> translations.shape, orientations.shape
((3, 3), (3, 4))
>>>
>>> # get the local pose of the first prim
>>> translations, orientations = prims.get_local_poses(indices=[0])
>>> translations.shape, orientations.shape
((1, 3), (1, 4))

get_local_scales( *, indices: list | np.ndarray | wp.array | None = None, ) → wp.array#

Get the local scales of the prims.

Backends: usd, usdrt, fabric.

Parameters:: indices – Indices of prims to process (shape (N,)). If not defined, all wrapped prims are processed.
Returns:: Scales of the prims (shape (N, 3)).
Raises:: AssertionError – Wrapped prims are not valid.

Example:

>>> # get local scales of all prims
>>> scales = prims.get_local_scales()
>>> scales.shape
(3, 3)

get_surface_gripper_properties( indices: list | np.ndarray | wp.array | None = None, ) → tuple[list[float], list[float], list[float], list[float]]#

Get the properties for the surface grippers.

Parameters:

indices – Specific surface gripper to update. Shape (M,). Where M <= size of the encapsulated prims in the view. Defaults to None (i.e: all prims in the view).

Returns:

First index is maximum grip distance. Shape (M,).: Second index is coaxial force limit. Shape (M,). Third index is shear force limit. Shape (M,). Fourth index is the retry interval. Shape (M,).

Return type:

tuple[list[float], list[float], list[float], list[float]]

get_surface_gripper_status( indices: list | np.ndarray | wp.array | None = None, ) → list[str]#

Get the status for the surface grippers.

Parameters:: indices – Specific surface gripper to update. Shape (M,). Where M <= size of the encapsulated prims in the view. Defaults to None (i.e: all prims in the view).
Returns:: Status of the surface grippers (“Open”, “Closing”, or “Closed”). Shape (M,).
Return type:: list[str]

get_visibilities( *, indices: list | np.ndarray | wp.array | None = None, ) → wp.array#

Get the visibility state (whether prims are visible or invisible during rendering) of the prims.

Backends: usd.

Parameters:: indices – Indices of prims to process (shape (N,)). If not defined, all wrapped prims are processed.
Returns:: Boolean flags indicating the visibility state (shape (N, 1)).
Raises:: AssertionError – Wrapped prims are not valid.

Example:

>>> # get the visibility states of all prims
>>> visibilities = prims.get_visibilities()
>>> visibilities.list()
[True, True, True]
>>>
>>> # get the visibility states of the first and last prims
>>> visibilities = prims.get_visibilities(indices=[0, 2])
>>> visibilities.list()
[True, True]

get_world_poses( *, indices: list | np.ndarray | wp.array | None = None, ) → tuple[wp.array, wp.array]#

Get the poses (positions and orientations) in the world frame of the prims.

Backends: usd, usdrt, fabric.

Parameters:: indices – Indices of prims to process (shape (N,)). If not defined, all wrapped prims are processed.
Returns:: Two-elements tuple. 1) The positions in the world frame (shape (N, 3)). 2) The orientations in the world frame (shape (N, 4), quaternion wxyz).
Raises:: AssertionError – Wrapped prims are not valid.

Example:

>>> # get the world poses of all prims
>>> positions, orientations = prims.get_world_poses()
>>> positions.shape, orientations.shape
((3, 3), (3, 4))
>>>
>>> # get the world pose of the first prim
>>> positions, orientations = prims.get_world_poses(indices=[0])
>>> positions.shape, orientations.shape
((1, 3), (1, 4))

reset_to_default_state( *, warn_on_non_default_state: bool = False, ) → None#

Reset the prims to the specified default state.

Backends: usd, usdrt, fabric.

This method applies the default state defined using the set_default_state() method.

Note

This method teleports prims to the specified default state (positions and orientations).

Warning

This method has no effect on non-root articulation links or when no default state is set. In this case, a warning message is logged if warn_on_non_default_state is True.

Parameters:: warn_on_non_default_state – Whether to log a warning message when no default state is set.
Raises:: AssertionError – Wrapped prims are not valid.

Example:

>>> # get default state (no default state set at this point)
>>> prims.get_default_state()
(None, None)
>>>
>>> # set default state
>>> # - random positions for each prim
>>> # - same fixed orientation for all prim
>>> positions = np.random.uniform(low=-1, high=1, size=(3, 3))
>>> prims.set_default_state(positions, orientations=[1.0, 0.0, 0.0, 0.0])
>>>
>>> # get default state (default state is set)
>>> prims.get_default_state()
(<warp.types.array object at 0x...>, <warp.types.array object at 0x...>)
>>>
>>> # reset prims to default state
>>> prims.reset_to_default_state()

reset_xform_op_properties() → None#

Reset the transformation operation attributes of the prims to a standard set.

Backends: usd.

It ensures that each prim has only the following transformations in the specified order. Any other transformation operations are removed, so they are not consumed.

xformOp:translate (double precision)
xformOp:orient (double precision)
xformOp:scale (double precision)

Note

This method preserves the poses of the prims in the world frame while reorganizing the transformation operations.

Raises:: AssertionError – Wrapped prims are not valid.

Example:

>>> # reset transform operations of all prims
>>> prims.reset_xform_op_properties()
>>>
>>> # verify transform operations of the first wrapped prim
>>> prims.prims[0].GetPropertyNames()
[... 'xformOp:orient', 'xformOp:scale', 'xformOp:translate', 'xformOpOrder']

static resolve_paths( paths: str | list[str], raise_on_mixed_paths: bool = True, ) → tuple[list[str], list[str]]#

Resolve paths to prims in the stage to get existing and non-existing paths.

Backends: usd.

Parameters:

paths – Single path or list of paths to USD prims. Paths may contain regular expressions to match multiple prims.
raise_on_mixed_paths – Whether to raise an error if resulting paths are mixed or invalid.

Returns:

Two-elements tuple. 1) List of existing paths. 2) List of non-existing paths.

Raises:

ValueError – If resulting paths are mixed or invalid and raise_on_mixed_paths is True.

Set the default state (positions and orientations) of the prims.

Backends: usd.

Hint

Prims can be reset to their default state by calling the reset_to_default_state() method.

Parameters:

positions – Default positions in the world frame (shape (N, 3)). If the input shape is smaller than expected, data will be broadcasted (following NumPy broadcast rules).
orientations – Default orientations in the world frame (shape (N, 4), quaternion wxyz). If the input shape is smaller than expected, data will be broadcasted (following NumPy broadcast rules).
indices – Indices of prims to process (shape (N,)). If not defined, all wrapped prims are processed.

Raises:

AssertionError – If neither positions nor orientations are specified.
AssertionError – Wrapped prims are not valid.
AssertionError – If prims are non-root articulation links.

Set the poses (translations and orientations) in the local frame of the prims.

Backends: usd, usdrt, fabric.

Note

This method teleports prims to the specified poses.

Parameters:

translations – Translations in the local frame (shape (N, 3)). If the input shape is smaller than expected, data will be broadcasted (following NumPy broadcast rules).
orientations – Orientations in the local frame (shape (N, 4), quaternion wxyz). If the input shape is smaller than expected, data will be broadcasted (following NumPy broadcast rules).
indices – Indices of prims to process (shape (N,)). If not defined, all wrapped prims are processed.

Raises:

AssertionError – If neither translations nor orientations are specified.
AssertionError – Wrapped prims are not valid.

Example:

>>> # set random poses for all prims
>>> translations = np.random.uniform(low=-1, high=1, size=(3, 3))
>>> orientations = np.random.randn(3, 4)
>>> orientations = orientations / np.linalg.norm(orientations, axis=-1, keepdims=True)  # normalize quaternions
>>> prims.set_local_poses(translations, orientations)

Set the local scales of the prims.

Backends: usd, usdrt, fabric.

Parameters:

scales – Scales to be applied to the prims (shape (N, 3)). If the input shape is smaller than expected, data will be broadcasted (following NumPy broadcast rules).
indices – Indices of prims to process (shape (N,)). If not defined, all wrapped prims are processed.

Raises:

AssertionError – Wrapped prims are not valid.

Example:

>>> # set random positive scales for all prims
>>> scales = np.random.uniform(low=0.5, high=1.5, size=(3, 3))
>>> prims.set_local_scales(scales)

Set up the properties for the surface grippers.

Parameters:

max_grip_distance – New maximum grip distance of the surface gripper. Shape (N,). Where N is the number of encapsulated prims in the view. Defaults to None, which means left unchanged.
coaxial_force_limit – New coaxial force limit of the surface gripper. Shape (N,). Where N is the number of encapsulated prims in the view. Defaults to None, which means left unchanged.
shear_force_limit – New shear force limit of the surface gripper. Shape (N,). Where N is the number of encapsulated prims in the view. Defaults to None, which means left unchanged.
retry_interval – New retry interval of the surface gripper. Shape (N,). Where N is the number of encapsulated prims in the view. Defaults to None, which means left unchanged.
indices – Specific surface gripper to update. Shape (M,). Where M <= size of the encapsulated prims in the view. Defaults to None (i.e: all prims in the view).

Raises:

Exception – If the length of any properties does not match the number of encapsulated prims in the view.
Exception – If a value in indices is larger then the number of encapsulated prims in the view.

Set the visibility state (whether prims are visible or invisible during rendering) of the prims.

Backends: usd.

Parameters:

visibilities – Boolean flags to set the visibility state (shape (N, 1)). If the input shape is smaller than expected, data will be broadcasted (following NumPy broadcast rules).
indices – Indices of prims to process (shape (N,)). If not defined, all wrapped prims are processed.

Raises:

AssertionError – Wrapped prims are not valid.

Example:

>>> # make all prims invisible
>>> prims.set_visibilities([False])
>>>
>>> # make first and last prims invisible
>>> prims.set_visibilities([True])  # restore visibility from previous call
>>> prims.set_visibilities([False], indices=[0, 2])

Set the poses (positions and orientations) in the world frame of the prims.

Backends: usd, usdrt, fabric.

Note

This method teleports prims to the specified poses.

Parameters:

positions – Positions in the world frame (shape (N, 3)). If the input shape is smaller than expected, data will be broadcasted (following NumPy broadcast rules).
orientations – Orientations in the world frame (shape (N, 4), quaternion wxyz). If the input shape is smaller than expected, data will be broadcasted (following NumPy broadcast rules).
indices – Indices of prims to process (shape (N,)). If not defined, all wrapped prims are processed.

Raises:

AssertionError – If neither positions nor orientations are specified.
AssertionError – Wrapped prims are not valid.

Example:

>>> # set random poses for all prims
>>> positions = np.random.uniform(low=-1, high=1, size=(3, 3))
>>> orientations = np.random.randn(3, 4)
>>> orientations = orientations / np.linalg.norm(orientations, axis=-1, keepdims=True)  # normalize quaternions
>>> prims.set_world_poses(positions, orientations)

property is_non_root_articulation_link: bool#

Indicate if the wrapped prims are a non-root link in an articulation tree.

Backends: usd.

Warning

Transformation of the poses of non-root links in an articulation tree are not supported.

Returns:: Whether the prims are a non-root link in an articulation tree.

property paths: list[str]#

Prim paths in the stage encapsulated by the wrapper.

Returns:: List of prim paths as strings.

Example:

>>> prims.paths
['/World/prim_0', '/World/prim_1', '/World/prim_2']

property prims: list[pxr.Usd.Prim]#

USD Prim objects encapsulated by the wrapper.

Returns:: List of USD Prim objects.

Example:

>>> prims.prims
[Usd.Prim(</World/prim_0>), Usd.Prim(</World/prim_1>), Usd.Prim(</World/prim_2>)]

property valid: bool#

Whether all prims in the wrapper are valid.

Returns:: True if all prim paths specified in the wrapper correspond to valid prims in stage, False otherwise.

Example:

>>> prims.valid
True

Omnigraph Nodes#

The extension exposes the following Omnigraph nodes:

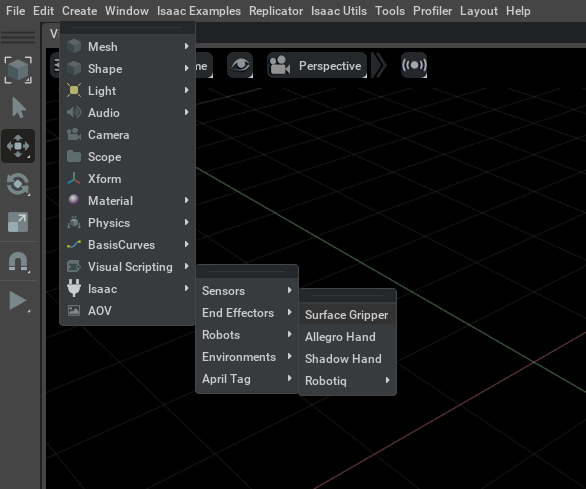

Surface Gripper
