Tutorial 9: Pick and Place Example#

Learning Objectives#

This is the final manipulator tutorial in a series of four tutorials. This tutorial tie everything together by showing how to use the UR10e robot and the 2F-140 gripper to follow a target and pick up a block. We will be using the robot imported in Tutorial 6: Setup a Manipulator, tuned in Tutorial 7: Configure a Manipulator, and the robot configuration file generated in Tutorial 8: Generate Robot Configuration File.

In this tutorial, we will be using the Lula kinematics solver to follow a target and the RMPFlow to pick up a block.

Note

All the files created in this tutorial are available at standalone_examples/api/isaacsim.robot.manipulators/ur10e for verification.

30 Minutes Tutorial

Prerequisites#

Note

If you have not completed the previous tutorial, you can find the prebuilt asset in the content browser at Isaac Sim/Samples/Rigging/Manipulator/configure_manipulator/ur10e/ur/ur_gripper.usd.

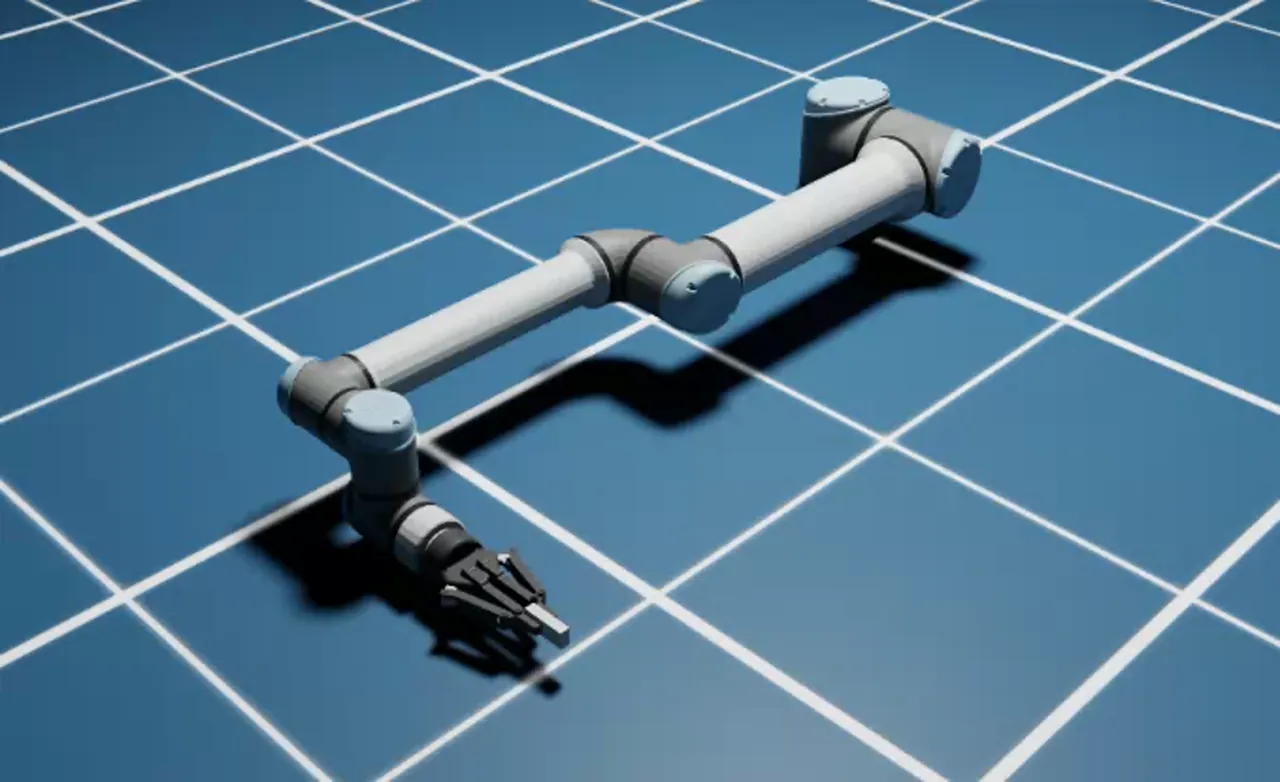

Gripper Control Example#

The script below uses the Parallel Gripper class to control the gripper joints and the Manipulator class to control the robot joints. Steps 0 to 400 close the gripper slowly. Steps 400 to 800, open the gripper slowly, and then reset the gripper position to 0.

Note

The provided script can be run using:

./python.sh standalone_examples/api/isaacsim.robot.manipulators/ur10e/gripper_control.py
gripper_control.py
 1from isaacsim import SimulationApp
 2
 3simulation_app = SimulationApp({"headless": False})
 4
 5import argparse
 6
 7import numpy as np
 8from isaacsim.core.api import World
 9from isaacsim.core.utils.stage import add_reference_to_stage
10from isaacsim.core.utils.types import ArticulationAction
11from isaacsim.robot.manipulators import SingleManipulator
12from isaacsim.robot.manipulators.grippers import ParallelGripper
13from isaacsim.storage.native import get_assets_root_path
14
15parser = argparse.ArgumentParser()
16parser.add_argument("--test", default=False, action="store_true", help="Run in test mode")
17args, unknown = parser.parse_known_args()
18
19my_world = World(stage_units_in_meters=1.0)
20assets_root_path = get_assets_root_path()
21if assets_root_path is None:
22    raise Exception("Could not find Isaac Sim assets folder")
23asset_path = assets_root_path + "/Isaac/Samples/Rigging/Manipulator/configure_manipulator/ur10e/ur/ur_gripper.usd"
24add_reference_to_stage(usd_path=asset_path, prim_path="/ur")
25# define the gripper
26gripper = ParallelGripper(
27    # We chose the following values while inspecting the articulation
28    end_effector_prim_path="/ur/ee_link/robotiq_arg2f_base_link",
29    joint_prim_names=["finger_joint"],
30    joint_opened_positions=np.array([0]),
31    joint_closed_positions=np.array([40]),
32    action_deltas=np.array([-40]),
33    use_mimic_joints=True,
34)
35# define the manipulator
36my_ur10 = my_world.scene.add(
37    SingleManipulator(
38        prim_path="/ur",
39        name="ur10_robot",
40        end_effector_prim_path="/ur/ee_link/robotiq_arg2f_base_link",
41        gripper=gripper,
42    )
43)
44
45my_world.scene.add_default_ground_plane()
46my_world.reset()
47
48i = 0
49reset_needed = False
50while simulation_app.is_running():
51    my_world.step(render=True)
52    if my_world.is_stopped() and not reset_needed:
53        reset_needed = True
54    if my_world.is_playing():
55        if reset_needed:
56            my_world.reset()
57            reset_needed = False
58        i += 1
59        gripper_positions = my_ur10.gripper.get_joint_positions()
60        if i < 400:
61            # close the gripper slowly
62            my_ur10.gripper.apply_action(ArticulationAction(joint_positions=[gripper_positions[0] + 0.1]))
63        if i > 400:
64            # open the gripper slowly
65            my_ur10.gripper.apply_action(ArticulationAction(joint_positions=[gripper_positions[0] - 0.1]))
66        if i == 800:
67            i = 0
68    if args.test is True:
69        break
70
71simulation_app.close()
../_images/isim_5.0_full_tut_gui_ur10e_gripper_control.webp

Follow Target Example using Lula Kinematics Solver#

Create a follow target task using the Lula kinematics solver, where you can specify the target position using a cube and the robot will move its end effector to the target position. The inverse kinematics solver will use the Lula robot descriptor created in the Tutorial 8: Generate Robot Configuration File tutorial.

The generated robot descriptor file is available at source/standalone_examples/api/isaacsim.robot.manipulators/ur10e/rmpflow/robot_descriptor.yaml

Note

The provided script can be run using:

./python.sh standalone_examples/api/isaacsim.robot.manipulators/ur10e/follow_target_example.py

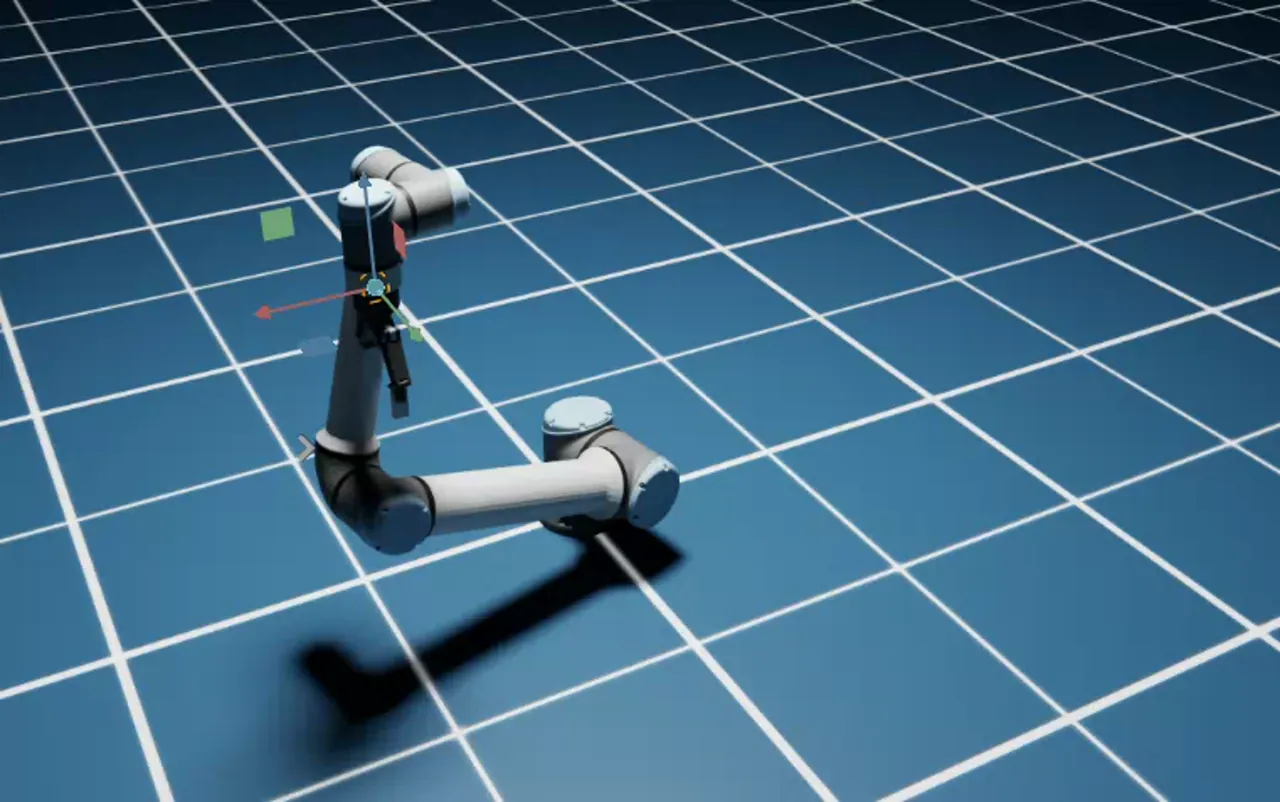

Move the cube to the target location and run the script to see the robot move its end effector to the target location.

../_images/isim_5.0_full_tut_gui_ur10e_follow_target.webp

The ik_solver.py script initializes the KinematicsSolver class and the LulaKinematicsSolver class.

controllers/ik_solver.py
 1import os
 2from typing import Optional
 3
 4from isaacsim.core.prims import Articulation
 5from isaacsim.robot_motion.motion_generation import ArticulationKinematicsSolver, LulaKinematicsSolver
 6
 7
 8class KinematicsSolver(ArticulationKinematicsSolver):
 9    def __init__(self, robot_articulation: Articulation, end_effector_frame_name: Optional[str] = None) -> None:
10        # TODO: change the config path
11        self._kinematics = LulaKinematicsSolver(
12            robot_description_path=os.path.join(os.path.dirname(__file__), "../rmpflow/robot_descriptor.yaml"),
13            urdf_path=os.path.join(os.path.dirname(__file__), "../rmpflow/ur10e.urdf"),
14        )
15        if end_effector_frame_name is None:
16            end_effector_frame_name = "ee_link_robotiq_arg2f_base_link"
17        ArticulationKinematicsSolver.__init__(self, robot_articulation, self._kinematics, end_effector_frame_name)
18        return

The follow_target.py script initializes the FollowTarget class and sets up the manipulator and parallel_gripper objects.

tasks/follow_target.py
 1from typing import Optional
 2
 3import isaacsim.core.api.tasks as tasks
 4import numpy as np
 5from isaacsim.core.utils.stage import add_reference_to_stage
 6from isaacsim.robot.manipulators.grippers import ParallelGripper
 7from isaacsim.robot.manipulators.manipulators import SingleManipulator
 8from isaacsim.storage.native import get_assets_root_path
 9
10
11# Inheriting from the base class Follow Target
12class FollowTarget(tasks.FollowTarget):
13    def __init__(
14        self,
15        name: str = "ur10e_follow_target",
16        target_prim_path: Optional[str] = None,
17        target_name: Optional[str] = None,
18        target_position: Optional[np.ndarray] = None,
19        target_orientation: Optional[np.ndarray] = None,
20        offset: Optional[np.ndarray] = None,
21    ) -> None:
22        tasks.FollowTarget.__init__(
23            self,
24            name=name,
25            target_prim_path=target_prim_path,
26            target_name=target_name,
27            target_position=target_position,
28            target_orientation=target_orientation,
29            offset=offset,
30        )
31        return
32
33    def set_robot(self) -> SingleManipulator:
34
35        assets_root_path = get_assets_root_path()
36        if assets_root_path is None:
37            raise Exception("Could not find Isaac Sim assets folder")
38        asset_path = (
39            assets_root_path + "/Isaac/Samples/Rigging/Manipulator/configure_manipulator/ur10e/ur/ur_gripper.usd"
40        )
41        add_reference_to_stage(usd_path=asset_path, prim_path="/ur")
42        # define the gripper
43        gripper = ParallelGripper(
44            # We chose the following values while inspecting the articulation
45            end_effector_prim_path="/ur/ee_link/robotiq_arg2f_base_link",
46            joint_prim_names=["finger_joint"],
47            joint_opened_positions=np.array([0]),
48            joint_closed_positions=np.array([40]),
49            action_deltas=np.array([-40]),
50            use_mimic_joints=True,
51        )
52        # define the manipulator
53        manipulator = SingleManipulator(
54            prim_path="/ur",
55            name="ur10_robot",
56            end_effector_prim_path="/ur/ee_link/robotiq_arg2f_base_link",
57            gripper=gripper,
58        )
59        return manipulator

The follow_target_example.py script initializes the FollowTarget task and the KinematicsSolver created in the previous step with a target location for the cube to be followed by the end effector.

follow_target_example.py
 1from isaacsim import SimulationApp
 2
 3simulation_app = SimulationApp({"headless": False})
 4
 5import numpy as np
 6from controller.ik_solver import KinematicsSolver
 7from isaacsim.core.api import World
 8from tasks.follow_target import FollowTarget
 9
10my_world = World(stage_units_in_meters=1.0)
11# Initialize the Follow Target task with a target location for the cube to be followed by the end effector
12my_task = FollowTarget(name="ur10e_follow_target", target_position=np.array([0.5, 0, 0.5]))
13my_world.add_task(my_task)
14my_world.reset()
15task_params = my_world.get_task("ur10e_follow_target").get_params()
16target_name = task_params["target_name"]["value"]
17ur10e_name = task_params["robot_name"]["value"]
18my_ur10e = my_world.scene.get_object(ur10e_name)
19
20# initialize the ik solver
21ik_solver = KinematicsSolver(my_ur10e)
22articulation_controller = my_ur10e.get_articulation_controller()
23
24# run the simulation
25while simulation_app.is_running():
26    my_world.step(render=True)
27    if my_world.is_playing():
28        if my_world.current_time_step_index == 0:
29            my_world.reset()
30
31        observations = my_world.get_observations()
32        actions, succ = ik_solver.compute_inverse_kinematics(
33            target_position=observations[target_name]["position"],
34            target_orientation=observations[target_name]["orientation"],
35        )
36        if succ:
37            articulation_controller.apply_action(actions)
38        else:
39            print("IK did not converge to a solution.  No action is being taken.")
40simulation_app.close()

RMP Flow Configuration#

Use RMPFlow to control the end effector. See RMPflow for more details about RMPFlow.

The ur10e_rmpflow_common.yaml file is available at source/standalone_examples/api/isaacsim.robot.manipulators/ur10e/rmpflow/ur10e_rmpflow_common.yaml, it specifies various parameters for the RMPFlow controller.

rmpflow/ur10e_rmpflow_common.yaml
 1joint_limit_buffers: [.01, .01, .01, .01, .01, .01]
 2rmp_params:
 3    cspace_target_rmp:
 4        metric_scalar: 50.
 5        position_gain: 100.
 6        damping_gain: 50.
 7        robust_position_term_thresh: .5
 8        inertia: 1.
 9    cspace_trajectory_rmp:
10        p_gain: 100.
11        d_gain: 10.
12        ff_gain: .25
13        weight: 50.
14    cspace_affine_rmp:
15        final_handover_time_std_dev: .25
16        weight: 2000.
17    joint_limit_rmp:
18        metric_scalar: 1000.
19        metric_length_scale: .01
20        metric_exploder_eps: 1e-3
21        metric_velocity_gate_length_scale: .01
22        accel_damper_gain: 200.
23        accel_potential_gain: 1.
24        accel_potential_exploder_length_scale: .1
25        accel_potential_exploder_eps: 1e-2
26    joint_velocity_cap_rmp:
27        max_velocity: 1.
28        velocity_damping_region: .3
29        damping_gain: 1000.0
30        metric_weight: 100.
31    target_rmp:
32        accel_p_gain: 30.
33        accel_d_gain: 85.
34        accel_norm_eps: .075
35        metric_alpha_length_scale: .05
36        min_metric_alpha: .01
37        max_metric_scalar: 10000
38        min_metric_scalar: 2500
39        proximity_metric_boost_scalar: 20.
40        proximity_metric_boost_length_scale: .02
41        xi_estimator_gate_std_dev: 20000.
42        accept_user_weights: false
43    axis_target_rmp:
44        accel_p_gain: 210.
45        accel_d_gain: 60.
46        metric_scalar: 10
47        proximity_metric_boost_scalar: 3000.
48        proximity_metric_boost_length_scale: .08
49        xi_estimator_gate_std_dev: 20000.
50        accept_user_weights: false
51    collision_rmp:
52        damping_gain: 50.
53        damping_std_dev: .04
54        damping_robustness_eps: 1e-2
55        damping_velocity_gate_length_scale: .01
56        repulsion_gain: 800.
57        repulsion_std_dev: .01
58        metric_modulation_radius: .5
59        metric_scalar: 10000.
60        metric_exploder_std_dev: .02
61        metric_exploder_eps: .001
62    damping_rmp:
63        accel_d_gain: 30.
64        metric_scalar: 50.
65        inertia: 100.
66canonical_resolve:
67    max_acceleration_norm: 50.
68    projection_tolerance: .01
69    verbose: false
70body_cylinders:
71    - name: base
72    pt1: [0,0,.10]
73    pt2: [0,0,0.]
74    radius: .2
75body_collision_controllers:
76    - name: ee_link_robotiq_arg2f_base_link
77    radius: .05

Follow Target Example using RMP Flow#

Create an RMP flow controller to move the robot end effector to the target location.

Note

The provided script can be run using:

./python.sh standalone_examples/api/isaacsim.robot.manipulators/ur10e/follow_target_example_rmpflow.py
../_images/isim_5.0_full_tut_gui_ur10e_follow_target_rmp.webp

The rmpflow.py initializes Lula motion generation policy using the ur10e_rmpflow_common.yaml file above, the ur10e.urdf and the robot descriptor file created in Tutorial 8: Generate Robot Configuration File.

controllers/rmpflow.py
 1import os
 2
 3import isaacsim.robot_motion.motion_generation as mg
 4from isaacsim.core.prims import Articulation
 5
 6class RMPFlowController(mg.MotionPolicyController):
 7    def __init__(self, name: str, robot_articulation: Articulation, physics_dt: float = 1.0 / 60.0) -> None:
 8
 9        self.rmpflow = mg.lula.motion_policies.RmpFlow(
10            robot_description_path=os.path.join(os.path.dirname(__file__), "../rmpflow/robot_descriptor.yaml"),
11            rmpflow_config_path=os.path.join(os.path.dirname(__file__), "../rmpflow/ur10e_rmpflow_common.yaml"),
12            urdf_path=os.path.join(os.path.dirname(__file__), "../rmpflow/ur10e.urdf"),
13            end_effector_frame_name="ee_link_robotiq_arg2f_base_link",
14            maximum_substep_size=0.00334,
15        )
16
17        self.articulation_rmp = mg.ArticulationMotionPolicy(robot_articulation, self.rmpflow, physics_dt)
18
19        mg.MotionPolicyController.__init__(self, name=name, articulation_motion_policy=self.articulation_rmp)
20        self._default_position, self._default_orientation = (
21            self._articulation_motion_policy._robot_articulation.get_world_pose()
22        )
23        self._motion_policy.set_robot_base_pose(
24            robot_position=self._default_position, robot_orientation=self._default_orientation
25        )
26        return
27
28    def reset(self):
29        mg.MotionPolicyController.reset(self)
30        self._motion_policy.set_robot_base_pose(
31            robot_position=self._default_position, robot_orientation=self._default_orientation
32        )

The follow_target_example_rmpflow.py script initializes the FollowTarget task and the RMPFlowController created in the previous step with a target location for the cube to be followed by the end effector.

follow_target_example_rmpflow.py
 1from isaacsim import SimulationApp
 2
 3simulation_app = SimulationApp({"headless": False})
 4
 5import numpy as np
 6from controller.rmpflow import RMPFlowController
 7from isaacsim.core.api import World
 8from tasks.follow_target import FollowTarget
 9
10my_world = World(stage_units_in_meters=1.0)
11# Initialize the Follow Target task with a target location for the cube to be followed by the end effector
12my_task = FollowTarget(name="ur10e_follow_target", target_position=np.array([0.5, 0, 0.5]))
13my_world.add_task(my_task)
14my_world.reset()
15task_params = my_world.get_task("ur10e_follow_target").get_params()
16target_name = task_params["target_name"]["value"]
17ur10e_name = task_params["robot_name"]["value"]
18my_ur10e = my_world.scene.get_object(ur10e_name)
19articulation_controller = my_ur10e.get_articulation_controller()
20
21
22# initialize the ik solver
23my_controller = RMPFlowController(name="target_follower_controller", robot_articulation=my_ur10e)
24my_controller.reset()
25
26# run the simulation
27while simulation_app.is_running():
28    my_world.step(render=True)
29    if my_world.is_playing():
30        if my_world.current_time_step_index == 0:
31            my_world.reset()
32            my_controller.reset()
33
34        observations = my_world.get_observations()
35        actions = my_controller.forward(
36            target_end_effector_position=observations[target_name]["position"],
37            target_end_effector_orientation=observations[target_name]["orientation"],
38        )
39        articulation_controller.apply_action(actions)
40simulation_app.close()

Basic Pick and Place Task using RMP Flow#

Use the RMPFlow controller to pick up a block and place it in a target location.

Note

The provided script can be run using:

./python.sh standalone_examples/api/isaacsim.robot.manipulators/ur10e/pick_place_example.py
../_images/isim_5.0_full_tut_gui_ur10e_pick_place_rmp.webp

The controllers/pick_place.py script creates a PickPlace controller that will pick up a block and place it in a target location.

controllers/pick_place.py
 1import isaacsim.robot.manipulators.controllers as manipulators_controllers
 2from isaacsim.core.prims import SingleArticulation
 3from isaacsim.robot.manipulators.grippers import ParallelGripper
 4
 5from .rmpflow import RMPFlowController
 6
 7
 8class PickPlaceController(manipulators_controllers.PickPlaceController):
 9    def __init__(
10        self, name: str, gripper: ParallelGripper, robot_articulation: SingleArticulation, events_dt=None
11    ) -> None:
12        if events_dt is None:
13            events_dt = [0.005, 0.002, 1, 0.05, 0.0008, 0.005, 0.0008, 0.1, 0.0008, 0.008]
14        manipulators_controllers.PickPlaceController.__init__(
15            self,
16            name=name,
17            cspace_controller=RMPFlowController(
18                name=name + "_cspace_controller", robot_articulation=robot_articulation
19            ),
20            gripper=gripper,
21            events_dt=events_dt,
22            end_effector_initial_height=0.6,
23        )
24        return

The tasks/pick_place.py script creates a PickPlace task that sets up the UR10e manipulator and the gripper to pick up a block and place it in a target location.

tasks/pick_place.py
 1from typing import Optional
 2
 3import isaacsim.core.api.tasks as tasks
 4import numpy as np
 5from isaacsim.core.utils.stage import add_reference_to_stage
 6from isaacsim.robot.manipulators.grippers import ParallelGripper
 7from isaacsim.robot.manipulators.manipulators import SingleManipulator
 8from isaacsim.storage.native import get_assets_root_path
 9
10
11class PickPlace(tasks.PickPlace):
12    def __init__(
13        self,
14        name: str = "ur10e_pick_place",
15        cube_initial_position: Optional[np.ndarray] = None,
16        cube_initial_orientation: Optional[np.ndarray] = None,
17        target_position: Optional[np.ndarray] = None,
18        offset: Optional[np.ndarray] = None,
19        cube_size: Optional[np.ndarray] = np.array([0.0515, 0.0515, 0.0515]),
20    ) -> None:
21        tasks.PickPlace.__init__(
22            self,
23            name=name,
24            cube_initial_position=cube_initial_position,
25            cube_initial_orientation=cube_initial_orientation,
26            target_position=target_position,
27            cube_size=cube_size,
28            offset=offset,
29        )
30        return
31
32    def set_robot(self) -> SingleManipulator:
33        assets_root_path = get_assets_root_path()
34        if assets_root_path is None:
35            raise Exception("Could not find Isaac Sim assets folder")
36        asset_path = (
37            assets_root_path + "/Isaac/Samples/Rigging/Manipulator/configure_manipulator/ur10e/ur/ur_gripper.usd"
38        )
39        add_reference_to_stage(usd_path=asset_path, prim_path="/ur")
40        # define the gripper
41        gripper = ParallelGripper(
42            # We chose the following values while inspecting the articulation
43            end_effector_prim_path="/ur/ee_link/robotiq_arg2f_base_link",
44            joint_prim_names=["finger_joint"],
45            joint_opened_positions=np.array([0]),
46            joint_closed_positions=np.array([40]),
47            action_deltas=np.array([-40]),
48            use_mimic_joints=True,
49        )
50        # define the manipulator
51        manipulator = SingleManipulator(
52            prim_path="/ur",
53            name="ur10_robot",
54            end_effector_prim_path="/ur/ee_link/robotiq_arg2f_base_link",
55            gripper=gripper,
56        )
57        return manipulator

The pick_place_example.py script puts everything together and runs the simulation.

Important

Make sure to tune the end_effector_offset parameter to get the best results, this is the offset between the end effector link on the robot and optimal grasp position for the claw.

pick_place_example.py
 1from isaacsim import SimulationApp
 2
 3simulation_app = SimulationApp({"headless": False})
 4import numpy as np
 5from controller.pick_place import PickPlaceController
 6from isaacsim.core.api import World
 7from tasks.pick_place import PickPlace
 8
 9my_world = World(stage_units_in_meters=1.0, physics_dt=1 / 200, rendering_dt=20 / 200)
10
11target_position = np.array([-0.3, 0.6, 0])
12target_position[2] = 0.0515 / 2.0
13my_task = PickPlace(name="ur10e_pick_place", target_position=target_position, cube_size=np.array([0.1, 0.0515, 0.1]))
14my_world.add_task(my_task)
15my_world.reset()
16task_params = my_world.get_task("ur10e_pick_place").get_params()
17ur10e_name = task_params["robot_name"]["value"]
18my_ur10e = my_world.scene.get_object(ur10e_name)
19# initialize the controller
20
21my_controller = PickPlaceController(name="controller", robot_articulation=my_ur10e, gripper=my_ur10e.gripper)
22task_params = my_world.get_task("ur10e_pick_place").get_params()
23articulation_controller = my_ur10e.get_articulation_controller()
24
25reset_needed = False
26
27while simulation_app.is_running():
28    my_world.step(render=True)
29    if my_world.is_playing():
30        if reset_needed:
31            my_world.reset()
32            reset_needed = False
33            my_controller.reset()
34        if my_world.current_time_step_index == 0:
35            my_controller.reset()
36
37        observations = my_world.get_observations()
38        # forward the observation values to the controller to get the actions
39        actions = my_controller.forward(
40            picking_position=observations[task_params["cube_name"]["value"]]["position"],
41            placing_position=observations[task_params["cube_name"]["value"]]["target_position"],
42            current_joint_positions=observations[task_params["robot_name"]["value"]]["joint_positions"],
43            # This offset needs tuning as well
44            end_effector_offset=np.array([0, 0, 0.20]),
45        )
46        if my_controller.is_done():
47            print("done picking and placing")
48        articulation_controller.apply_action(actions)
49
50    if my_world.is_stopped():
51        reset_needed = True
52
53
54simulation_app.close()

Advanced Pick and Place Task using RMPFlow and Foundation Pose#

In the pick and place example above, you used the RMPFlow controller to pick up a block and place it in a target location. However there are some limitations to this approach.

  • The robot gets the cube pose directly from the simulator observation, which does not translate to the real world.

  • The class set up is limited to the cube, and in real life different objects have different shapes and sizes, and different grasping strategies.

To address these limitations, see Isaac Manipulator tutorials for more advanced pick and place tasks.

Summary#

In this tutorial, you learned how to use the Lula kinematics solver to follow a target and the RMPFlow to pick up a block.
