ROS 2 Installation#

NVIDIA Isaac Sim provides a ROS 2 bridge for ROS system integration. The same set of common components are used to define the types of data being published and received by the simulator.

Isaac Sim supported ROS distros are listed below.

Platform

ROS 2

Ubuntu 24.04

Jazzy (recommended)

Ubuntu 22.04

Humble (recommended), Jazzy

Windows 10

Humble

Windows 11

Humble

For the ROS 2 bridge, Isaac Sim is compatible with ROS 2 Humble and ROS 2 Jazzy.

Install Summary Steps#

This is a section identifies and guides you through the different ways the Isaac Sim ROS 2 bridge can be run to match your ROS configuration. Each of the steps in this section refer to the detailed steps that are included in the rest of this guide. Read the entire guide before proceeding to implement any steps.

Important

Isaac Sim is compatible with Python 3.11 only. Enabling and interfacing with the ROS 2 Bridge has been updated.

Step 1: Setting up ROS Interfaces and Packages#

You have the following options for your Isaac Sim ROS 2 bridge:

If your workflow only requires interfacing with the ROS 2 Bridge with the default or common interfaces (for example, std_msgs, geometry_msgs, nav_msgs) you can run Isaac Sim in the following way:

  1. Complete the default ROS installation. Running the external ROS nodes in the default configuration is acceptable because the DDS handles the data transport regardless of the Python version.

    These configurations are available:

    Platform

    ROS Distro

    ROS Installation Notes

    Ubuntu 24.04

    Jazzy (recommended)

    Use default installation (Python 3.12)

    Ubuntu 22.04

    Humble (recommended)

    Use default installation (Python 3.10)

    Ubuntu 22.04

    Jazzy

    Build from source (Python 3.10)

    Windows 10

    Humble

    Use default installation in WSL

    Windows 11

    Humble

    Use default installation in WSL

  2. Run Isaac Sim with internal Jazzy or Humble libraries enabled, see Configuring Options and Enabling Internal ROS Libraries.

    The internal libraries are in Python 3.11, so attempting to source the default installation of ROS results in errors.

Custom packages must be included for both Isaac Sim (Python 3.11) and your ROS installation in the default Python version. For example, Python 3.10 in Ubuntu 22.04 | Python 3.12 in Ubuntu 24.04.

If your workflow requires custom packages or interfaces in addition to the common interfaces, you can run Isaac Sim in the following way:

  1. Before proceeding, you must include any custom packages in your src folder in a ROS Workspace, such as the Isaac Sim ROS Workspace.

  2. Build your ROS 2 Humble or Jazzy workspace packages from source with Python 3.11, see Enabling rclpy, Custom ROS 2 Packages, and Workspaces with Python 3.11.

  3. Before running Isaac Sim with the internal Jazzy or Humble libraries enabled, source your Python 3.11 ROS 2 build and your custom packages, see Enabling rclpy, Custom ROS 2 Packages, and Workspaces with Python 3.11.

  4. Complete the default ROS installation, see Install ROS 2. Running the external ROS nodes in the default configuration, while Isaac Sim internally uses Python 3.11, is acceptable because the DDS handles the data transport regardless of the Python version.

  5. Include your custom package in a ROS workspace and build the workspace with the default ROS installation, see Setting Up Workspaces.

  6. In a new terminal, source your ROS workspace on the default Python version, see Setting Up Workspaces.

Step 2: Setting up ROS Workspaces#

After enabling the ROS Bridge, you can start publishing and subscribing to ROS topics. Review the ROS 2. To complete them, be sure to setup the Isaac Sim ROS Workspaces first:

In Ubuntu 22.04, Ubuntu 24.04 and WSL2 you can follow the instructions to setup the Isaac Sim ROS Workspaces.

In Linux follow the instructions to Running ROS in Docker Containers. Then return here and complete:

In Windows 10 and 11 this option is not supported. All ROS 2 installations must be run natively using Ubuntu 22.04 on WSL2. Follow the steps in Setting Up Workspaces.

Install ROS 2#

The method of ROS 2 installation determines the features of ROS 2 that can be used. Isaac Sim comes with Python 3.11.

If you have installed ROS 2 with a different version of Python, you can use rclpy. It is pre-packaged with Isaac Sim and compiled with Python 3.11. For more information, see Enabling rclpy, Custom ROS 2 Packages, and Workspaces with Python 3.11.

The ROS_DISTRO env variable is used to determine if ROS 2 is sourced and which distro to use. If this variable is not set, an internal ROS 2 distro build is used. Message definitions can be different between ROS 2 versions. Because of this, the appropriate ROS 2 backend is dynamically loaded depending on the sourced ROS distro.

Important

When using the ROS 2 bridge, only source the Isaac Sim internal libraries or source your ROS 2 installation if it is built with Python 3.11 from the terminal before running Isaac Sim. If sourcing ROS 2 or internal libs is a part of your bashrc, then Isaac Sim can be run directly.

  1. Download ROS 2 following the instructions on the official website:

  2. (Optional) Some message types (Detection2DArray and Detection3DArray used for publishing bounding boxes) in the ROS 2 Bridge depend on the vision_msgs_package. Run the command below to install the package on your system. If you don’t need to run the vision_msgs publishers, you can skip this step.

    sudo apt install ros-humble-vision-msgs

  3. (Optional) Some message types (AckermannDriveStamped used for publishing and subscribing to Ackermann steering commands) in the ROS 2 Bridge depend on the ackermann_msgs_package. Run the command below to install the package on your system. If you don’t need to run the ackermann_msgs publishers/subscribers, you can skip this step.

    sudo apt install ros-humble-ackermann-msgs

  4. Ensure that the ROS environment is sourced in the terminal or in your ~/.bashrc file. You must perform this step each time and before using any ROS commands.

    source /opt/ros/humble/setup.bash

  1. Download and build ROS 2 Jazzy from source following the instructions on the official website:

  2. (Optional) Some message types (Detection2DArray and Detection3DArray used for publishing bounding boxes) in the ROS 2 Bridge depend on the vision_msgs_package. Clone the linked repository and build it in a ROS workspace. If you don’t need to run the vision_msgs publishers, you can skip this step.

  3. (Optional) Clone the linked repository and build it in a ROS workspace. If you don’t need to run the ackermann_msgs publishers/subscribers, you can skip this step. Some message types (AckermannDriveStamped used for publishing and subscribing to Ackermann steering commands) in the ROS 2 Bridge depend on the ackermann_msgs_package.

  4. Ensure that the ROS environment is sourced in the terminal or in your ~/.bashrc file. You must perform this step each time and before using any ROS commands.

    . ~/ros2_jazzy/install/local_setup.bash

  1. Download ROS 2 following the instructions on the official website:

  2. (Optional) Run the command below to install the package on your system. If you don’t need to run the vision_msgs publishers, you can skip this step. Some message types (Detection2DArray and Detection3DArray used for publishing bounding boxes) in the ROS 2 Bridge depend on the vision_msgs_package.

    sudo apt install ros-jazzy-vision-msgs

  3. (Optional) Run the command below to install the package on your system. If you don’t need to run the ackermann_msgs publishers/subscribers, you can skip this step. Some message types (AckermannDriveStamped used for publishing and subscribing to Ackermann steering commands) in the ROS 2 Bridge depend on the ackermann_msgs_package.

    sudo apt install ros-jazzy-ackermann-msgs

  4. Ensure that the ROS environment is sourced in the terminal or in your ~/.bashrc file. You must perform this step each time and before using any ROS commands.

    source /opt/ros/jazzy/setup.bash

Use WSL2 to run ROS 2 on Windows, which communicates with the Isaac Sim ROS Bridge run using internal ROS 2 libraries.

  1. Install WSL2 on your Windows machine.

  2. Open Powershell with Admin privileges and change the WSL version to 2.

    wsl --set-default-version 2

  3. Install Ubuntu 22.04 distro inside WSL.

    wsl --install -d Ubuntu-22.04

  4. After the installation is complete, restart the machine and open the Ubuntu 22.04 app in Windows. It takes a few moments to install.

    Note

    If you encounter errors with enabling virtualization, follow the Windows virtualization enabling instructions.

  5. After Ubuntu 22.04 is installed in WSL2, see the instructions for installing ROS 2 Humble natively in Ubuntu 22.04 in the WSL2 terminal.

  6. After ROS 2 installation is complete, open WSL2 and run the following command to get the IP address of WSL2.

    hostname -I

  7. Open Powershell as Admin and run the following command and retrieve the IPv4 address of the Windows host.

    ipconfig /all

  8. Set the variables in Powershell accordingly with the respective IP addresses:

    $Windows_IP = "<WINDOWS_IP>"
$WSL2_IP = "<WSL2_IP>"

  9. Setup port forwarding in Powershell for the specific ports used by default DDS (FastDDS) in ROS:

    netsh interface portproxy add v4tov4 listenport=7400 listenaddress=$Windows_IP connectport=7400 connectaddress=$WSL2_IP
netsh interface portproxy add v4tov4 listenport=7410 listenaddress=$Windows_IP connectport=7410 connectaddress=$WSL2_IP
netsh interface portproxy add v4tov4 listenport=9387 listenaddress=$Windows_IP connectport=9387 connectaddress=$WSL2_IP

  10. See the steps to open Isaac Sim with internal ROS 2 libraries on Windows.

After the ROS Bridge is enabled on Isaac Sim and the Windows network settings have been applied, Isaac Sim is able to communicate with ROS 2 nodes in WSL2.

Note

For Linux, you can not source this installation in the same terminal as running Isaac Sim. Source with Isaac Sim internal ROS libraries, Python 3.11, before running Isaac Sim.

Configuring Options and Enabling Internal ROS Libraries#

The recommended way to run Isaac Sim, with the supported Python 3.11 version of ROS, is to source the internal ROS libraries that are part of Isaac Sim.

Recommended ROS 2 Distros

If you are using the recommended ROS 2 distros, no additional steps are required to load libraries for the ROS 2 Bridge.

In Ubuntu 22.04, Isaac Sim automatically loads the internal ROS 2 Humble libraries if no other ROS libraries are sourced. In Ubuntu 24.04, Isaac Sim automatically loads the internal ROS 2 Jazzy libraries if no other ROS libraries are sourced. Use the regular launch command to run Isaac Sim with the ROS 2 Bridge enabled.

./isaac-sim.sh

In Windows, Isaac Sim automatically loads the internal ROS 2 Humble libraries if no other ROS libraries are sourced. Enable the ROS 2 Bridge and run Isaac Sim using the command below:

.\isaac-sim.bat --/isaac/startup/ros_bridge_extension=isaacsim.ros2.bridge

Note

The ROS_DISTRO environment variable is used to check whether ROS has been sourced.

Using App Selector The simplest way to manually enable the ROS 2 internal libraries is by configuring the options presented in the Isaac Sim App Selector. This can be enabled by running ~/isaacsim/isaac-sim.selector.sh.

Using Terminal

To enable specific internal ROS 2 libraries from the terminal follow the instructions below:

Isaac Sim comes with its own set of minimal ROS 2 libraries. To use the internal ROS 2 libraries, you must set the following environment variables in a new terminal or command prompt before running Isaac Sim. If Isaac Sim is installed in a non-default location, replace isaac_sim_package_path environment variable with the Package Path shown in the Isaac Sim App Selector (see Open in File Browser and Open In Terminal buttons).

export isaac_sim_package_path=$HOME/isaacsim

export ROS_DISTRO=humble

export RMW_IMPLEMENTATION=rmw_fastrtps_cpp

# Can only be set once per terminal.
# Setting this command multiple times will append the internal library path again potentially leading to conflicts
export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:$isaac_sim_package_path/exts/isaacsim.ros2.bridge/humble/lib

# Run Isaac Sim
$isaac_sim_package_path/isaac-sim.sh

export isaac_sim_package_path=$HOME/isaacsim

export ROS_DISTRO=jazzy

export RMW_IMPLEMENTATION=rmw_fastrtps_cpp

# Can only be set once per terminal.
# Setting this command multiple times will append the internal library path again potentially leading to conflicts
export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:$isaac_sim_package_path/exts/isaacsim.ros2.bridge/jazzy/lib

# Run Isaac Sim
$isaac_sim_package_path/isaac-sim.sh

set isaac_sim_package_path=C:\isaacsim

set ROS_DISTRO=humble

set RMW_IMPLEMENTATION=rmw_fastrtps_cpp

REM Can only be set once per terminal.
REM Setting this command multiple times will append the internal library path again potentially leading to conflicts
set PATH=%PATH%;%isaac_sim_package_path%\exts\isaacsim.ros2.bridge\humble\lib

REM Run Isaac Sim with ROS 2 Bridge Enabled
%isaac_sim_package_path%\isaac-sim.bat --/isaac/startup/ros_bridge_extension=isaacsim.ros2.bridge

# Set environment variables

$env:isaac_sim_package_path = "C:\isaacsim"
$env:ROS_DISTRO = "humble"
$env:RMW_IMPLEMENTATION = "rmw_fastrtps_cpp"

# Only set this once per session to avoid path conflicts
$env:PATH = "$env:PATH;$env:isaac_sim_package_path\exts\isaacsim.ros2.bridge\humble\lib"

# Run Isaac Sim with ROS 2 Bridge Enabled
& "$env:isaac_sim_package_path\isaac-sim.bat" --/isaac/startup/ros_bridge_extension=isaacsim.ros2.bridge

set isaac_sim_package_path=C:\isaacsim

set ROS_DISTRO=jazzy

set RMW_IMPLEMENTATION=rmw_fastrtps_cpp

REM Can only be set once per terminal.
REM Setting this command multiple times will append the internal library path again potentially leading to conflicts
set PATH=%PATH%;%isaac_sim_package_path%\exts\isaacsim.ros2.bridge\jazzy\lib

REM Run Isaac Sim with ROS 2 Bridge Enabled
%isaac_sim_package_path%\isaac-sim.bat --/isaac/startup/ros_bridge_extension=isaacsim.ros2.bridge

# Set environment variables

$env:isaac_sim_package_path = "C:\isaacsim"
$env:ROS_DISTRO = "jazzy"
$env:RMW_IMPLEMENTATION = "rmw_fastrtps_cpp"

# Only set this once per session to avoid path conflicts
$env:PATH = "$env:PATH;$env:isaac_sim_package_path\exts\isaacsim.ros2.bridge\jazzy\lib"

# Run Isaac Sim with ROS 2 Bridge Enabled
& "$env:isaac_sim_package_path\isaac-sim.bat" --/isaac/startup/ros_bridge_extension=isaacsim.ros2.bridge

Enabling the ROS 2 Bridge#

The instructions On Linux with Fast DDS are the recommended way to enable the ROS 2 bridge.

You can also enable:

On Linux with Fast DDS#

Preparation

If using the ROS 2 Bridge to communicate with ROS 2 nodes running on the same machine, use the default configuration of FastDDS. This ensures you are using shared memory transport resulting in the best simulation performance.

If you intend to use the ROS 2 bridge to connect to ROS nodes on different machines on the same network, before launching Isaac Sim, you need to set the Fast DDS middleware on all terminals that will be passing ROS 2 messages and enable UDP transport:

  1. If you followed Setting Up Workspaces, a fastdds.xml file is located at the root of the <ros2_ws> folder. Set the environment variable by typing export FASTRTPS_DEFAULT_PROFILES_FILE=<path_to_ros2_ws>/fastdds.xml in all the terminals that will use ROS 2 functions.

  2. If you DID NOT follow Setting Up Workspaces, create a file named fastdds.xml under ~/.ros/, paste the following snippet link into the file:

    <?xml version="1.0" encoding="UTF-8" ?>

<license>Copyright (c) 2022-2024, NVIDIA CORPORATION.  All rights reserved.
NVIDIA CORPORATION and its licensors retain all intellectual property
and proprietary rights in and to this software, related documentation
and any modifications thereto.  Any use, reproduction, disclosure or
distribution of this software and related documentation without an express
license agreement from NVIDIA CORPORATION is strictly prohibited.</license>


<profiles xmlns="http://www.eprosima.com/XMLSchemas/fastRTPS_Profiles" >
    <transport_descriptors>
        <transport_descriptor>
            <transport_id>UdpTransport</transport_id>
            <type>UDPv4</type>
        </transport_descriptor>
    </transport_descriptors>

    <participant profile_name="udp_transport_profile" is_default_profile="true">
        <rtps>
            <userTransports>
                <transport_id>UdpTransport</transport_id>
            </userTransports>
            <useBuiltinTransports>false</useBuiltinTransports>
        </rtps>
    </participant>
</profiles>

  3. Run export FASTRTPS_DEFAULT_PROFILES_FILE=~/.ros/fastdds.xml in the terminals that will use ROS 2 functions.

  4. (Optional) Run export ROS_DOMAIN_ID=(id_number) before launching Isaac Sim. Later you can decide whether to use this ROS_DOMAIN_ID inside your environment, or explicitly use a different ID number for any given topic.

  5. Source your ROS 2 installation or internal ROS 2 libraries and workspace before launching Isaac Sim.

On Windows using the Extension UI#

On Windows you must perform a few additional steps to enable the ROS 2 bridge.

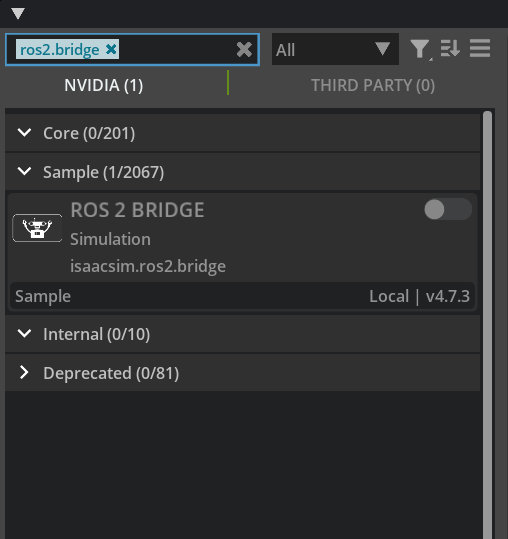

  1. Go to the extension manager menu Window > Extensions and search for ROS 2 bridge.

    ../_images/isim_5.0_ros_ref_gui_enable_ros2_bridge_extension.png

  2. Source ROS 2 or internal ROS 2 libraries in the terminal before running Isaac Sim, standalone Python scripts, or Isaac Cortex.

The ROS 2 bridge dynamically handles the version of ROS 2 that must be loaded from your sourced ROS 2 path. If you do not source a ROS 2 installation, the ROS 2 Bridge will load the default ROS 2 distro of the bridge. The default distro is a set of pre-packaged libraries with ROS 2 Humble (Ubuntu 22.04) or ROS 2 Jazzy (Ubuntu 24.04).

Cyclone DDS is not supported on Windows (WSL2).

On Linux using Cyclone DDS#

Isaac Sim supports Cyclone DDS middleware for Linux, ROS 2 Humble. To use Cyclone DDS, you must disable the default bridge that uses Fast DDS. After the bridge is disabled, you can then enable the bridge using Cyclone DDS.

Enabling the ROS Bridge using Cyclone DDS#

  1. Follow the installation steps to setup Cyclone DDS for your ROS 2 installation.

    Note

    Isaac Sim ROS 2 Humble and Jazzy internal libraries include Cyclone DDS compiled with Python 3.11.

  2. Before Running Isaac Sim, make sure to set the RMW_IMPLEMENTATION environment variable. Moving forward, if any examples show setting the environment variable to rmw_fastrtps_cpp you can replace it with the command below:

    export RMW_IMPLEMENTATION=rmw_cyclonedds_cpp

Disabling the ROS Bridge in isaac-sim.sh#

To disable the ROS bridge, use the following steps:

  1. Open the file located at ~/isaacsim/apps/isaacsim.exp.full.kit.

  2. Find the line isaac.startup.ros_bridge_extension = "isaacsim.ros2.bridge".

  3. Change it to isaac.startup.ros_bridge_extension = "" to disable the ROS 2 bridge.

  4. Save and close the file.

Setting Up Workspaces#

To run the ROS 2 tutorials and examples, it’s necessary to source your ROS 2 installation workspace in the terminal you plan to work in.

  1. To build the Isaac Sim ROS workspaces, ensure you have a system install of the Install ROS 2.

    You are also able to build the workspaces using a ROS Docker container, as described in Running ROS in Docker Containers.

    Important

    If trying to run ROS 2 Jazzy on Ubuntu 22.04, you are required to build the workspace inside a docker container. Run the following steps inside a docker container as mentioned in Running ROS in Docker Containers.

  2. Clone the Isaac Sim ROS Workspace Repository from isaac-sim/IsaacSim-ros_workspaces.

    A few ROS packages are needed to go through the Isaac Sim ROS 2 tutorial series. The entire ROS 2 workspaces are included with the necessary packages.

  3. If you have built ROS 2 from source, replace the source /opt/ros/<ros_distro>/setup.bash command with source <path_ros2_ws>/install/setup.bash before building additional workspaces.

  1. To build the ROS 2 workspace, you might need to install additional packages:

    # For rosdep install command
sudo apt install python3-rosdep build-essential
# For colcon build command
sudo apt install python3-colcon-common-extensions

  2. Ensure that your native ROS 2 has been sourced:

    source /opt/ros/humble/setup.bash

  3. Resolve any package dependencies from the root of the ROS 2 workspace by running the following commands:

    cd humble_ws
git submodule update --init --recursive # If using docker, perform this step outside the container and relaunch the container
rosdep install -i --from-path src --rosdistro humble -y

  4. Build the workspace:

    colcon build

    Under the root directory, new build, install, and log directories are created.

  5. To start using the ROS 2 packages built within this workspace, open a new terminal and source the workspace with the following commands:

    source /opt/ros/humble/setup.bash
cd humble_ws
source install/local_setup.bash

  1. To build the ROS 2 workspace, you might need to install additional packages:

    # For rosdep install command
sudo apt install python3-rosdep build-essential
# For colcon build command
sudo apt install python3-colcon-common-extensions

  2. Ensure that your native ROS 2 has been sourced:

    source /opt/ros/jazzy/setup.bash

  3. Resolve any package dependencies from the root of the ROS 2 workspace by running the following command:

    cd jazzy_ws
git submodule update --init --recursive # If using docker, perform this step outside the container and relaunch the container
rosdep install -i --from-path src --rosdistro jazzy -y

  4. Build the workspace:

    colcon build

    Under the root directory, new build, install, and log directories are created.

  5. To start using the ROS 2 packages built within this workspace, open a new terminal and source the workspace with the following commands:

    source /opt/ros/jazzy/setup.bash
cd jazzy_ws
source install/local_setup.bash

  1. Open the Ubuntu 22.04 app (WSL2) in Windows.

  2. In the WSL2 terminal, run all of the installation commands in the ROS 2 > Ubuntu > Humble tab of the Setting Up Workspaces section.

Enabling rclpy, Custom ROS 2 Packages, and Workspaces with Python 3.11#

If you want to use rclpy and custom ROS 2 packages with Isaac Sim, your ROS 2 workspace must be built with Python 3.11. Dockerfiles are included with the Isaac Sim ROS Workspaces repository that build minimal dependencies of ROS 2 with Python 3.11.

For Ubuntu 22, Python 3.10 is the default version however Isaac Sim requires Python 3.11. A dockerfile is included that builds a ROS 2 workspace with Python 3.11. Packages built using this dockerfile can be used directly with rclpy and can be sourced to run the Isaac Sim ROS 2 Bridge.

To use the dockerfile to build ROS 2 and the workspace with Python 3.11:

  1. Clone Isaac Sim ROS Workspace.

  2. Build the dockerfile:

    cd IsaacSim-ros_workspaces

./build_ros.sh -d humble -v 22.04

    The minimal humble_ws needed to run Isaac Sim is under build_ws/humble/humble_ws. Additional workspaces can also be created and built in this dockerfile.

  3. Open a new terminal and source the ROS 2 Python 3.11 build:

    source build_ws/humble/humble_ws/install/local_setup.bash

  4. In the same terminal, source the built ROS 2 workspace:

    source build_ws/humble/isaac_sim_ros_ws/install/local_setup.bash

  5. Run Isaac Sim from the same terminal. The sourced workspace contains the minimal ROS 2 Humble dependencies needed to enable the ROS 2 bridge.

  6. For running external nodes, rebuild the workspace in the default ROS distro as explained in this section: Setting Up Workspaces.

To use the dockerfile to build ROS 2 and the workspace with Python 3.11:

  1. Clone the Isaac Sim ROS Workspace.

  2. Build the dockerfile:

    cd IsaacSim-ros_workspaces

./build_ros.sh -d jazzy -v 22.04

    The minimal jazzy_ws needed to run Isaac Sim is under build_ws/jazzy/jazzy_ws. Additional workspaces can also be created and built in this dockerfile.

  3. Open a new terminal and source the ROS 2 Python 3.11 build:

    source build_ws/jazzy/jazzy_ws/install/local_setup.bash

  4. In the same terminal, source the built ROS 2 workspace:

    source build_ws/jazzy/isaac_sim_ros_ws/install/local_setup.bash

  5. Run Isaac Sim from the same terminal. The sourced workspace contains the minimal ROS 2 Jazzy dependencies needed to enable the ROS 2 bridge.

  6. Now rebuild the workspace in the default ROS distro as explained in this section: Setting Up Workspaces so you can run them in your stack outside of Isaac Sim.

Isaac Sim requires Python 3.11. A dockerfile is included that builds a ROS 2 workspace with Python 3.11. Packages built using this dockerfile can be used directly with rclpy and can be sourced to run the Isaac Sim ROS 2 Bridge.

To use the dockerfile to build ROS 2 and the workspace with Python 3.11:

  1. Clone Isaac Sim ROS Workspace.

  2. Build the dockerfile:

    cd IsaacSim-ros_workspaces

./build_ros.sh -d jazzy -v 24.04

    The minimal jazzy_ws needed to run Isaac Sim is under build_ws/jazzy/jazzy_ws. Additional workspaces can also be created and built in this dockerfile.

  3. Open a new terminal and source the ROS 2 Python 3.11 build:

    source build_ws/jazzy/jazzy_ws/install/local_setup.bash

  4. In the same terminal, source the built ROS 2 workspace:

    source build_ws/jazzy/isaac_sim_ros_ws/install/local_setup.bash

  5. Run Isaac Sim from the same terminal. The sourced workspace contains the minimal ROS 2 Jazzy dependencies needed to enable the ROS 2 bridge.

  6. Now rebuild the workspace in the default ROS distro as explained in Setting Up Workspaces so you can run them in your stack outside of Isaac Sim.

Included ROS 2 Packages#

A list of sample ROS 2 packages created for NVIDIA Isaac Sim:

  • carter_navigation: Contains the required launch file and ROS 2 navigation parameters for the NVIDIA Carter robot.

  • cmdvel_to_ackermann: Contains a script file and launch file used to convert command velocity messages (Twist msg type) to Ackermann Drive messages (AckermannDriveStamped msg type).

  • custom_message: Contains the required launch file and ROS 2 navigation parameters for the NVIDIA Carter robot.

  • h1_fullbody_controller: Contains the required launch files, parameters and scripts for running a fullbody controller for the H1 humanoid robot.

  • isaac_moveit: Contains the launch files and parameter to run Isaac Sim with the MoveIt2 stack.

  • isaac_ros_navigation_goal: Used to automatically set random or user-defined goal poses in ROS 2 Navigation.

  • isaac_ros2_messages: A custom set of ROS 2 service interfaces for retrieving poses as well as listing prims and manipulate their attributes.

  • isaacsim: Contains launch files and scripts for running and launching Isaac Sim as a ROS 2 node.

  • isaac_tutorials: Contains launch files, RViz2 config files, and scripts for the tutorial series.

  • iw_hub_navigation: Contains the required launch file and ROS 2 navigation parameters for the iw.hub robot.

Important

Source your ROS 2 workspace each time a new terminal is opened or whenever a new ROS 2 package is included. Following this, run Isaac Sim from the same terminal.

Running ROS in Docker Containers#

Note

Docker workflow is currently not supported on Windows (WSL2).

  1. Cloned Isaac Sim ROS Workspace Repository.

  2. Navigate to the root of the cloned repo and run the following command. If the repo was cloned to a different location, make sure to update the path in ~/IsaacSim-ros_workspaces to the correct one:
    cd ~/IsaacSim-ros_workspaces
git submodule update --init --recursive

  3. Run the appropriate ROS 2 Docker container and mount the appropriate workspace from the Isaac Sim ROS Workspaces repo. If the repo was cloned to a different location, make sure to update the path in -v ~/IsaacSim-ros_workspaces to the correct one.

    xhost +

docker run -it --rm --net=host --env="DISPLAY" --env="ROS_DOMAIN_ID" -v ~/IsaacSim-ros_workspaces/humble_ws:/humble_ws --name ros_ws_docker osrf/ros:humble-desktop /bin/bash

    xhost +

docker run -it --rm --net=host --env="DISPLAY" --env="ROS_DOMAIN_ID" -v ~/IsaacSim-ros_workspaces/jazzy_ws:/jazzy_ws --name ros_ws_docker osrf/ros:jazzy-desktop /bin/bash

    Here --net=host allow communication between Isaac Sim and ROS Docker containers, while xhost + and --env="DISPLAY" facilitate passing through the DISPLAY environment variable which enables GUI applications suc as rviz to open from the Docker container. --name <container name> allows us to refer to the container with a fixed name.

  4. Inside the docker container navigate to the ros workspace.

    cd /${ROS_DISTRO}_ws

  5. Inside the Docker container, set the FASTRTPS_DEFAULT_PROFILES_FILE environment variable as per instructions in On Linux with Fast DDS.

  6. To install additional dependencies, build the workspace, and source the workspace after it’s built:

    cd /${ROS_DISTRO}_ws
apt-get update
git submodule update --init --recursive # If using docker, perform this step outside the container and relaunch the container
rosdep install --from-paths src --ignore-src --rosdistro=$ROS_DISTRO -y
source /opt/ros/$ROS_DISTRO/setup.sh
colcon build
source install/local_setup.bash

  7. If you need to open a new terminal, open the existing Docker:

    docker exec -it ros_ws_docker /bin/bash -c 'source /opt/ros/$ROS_DISTRO/setup.bash; exec bash'

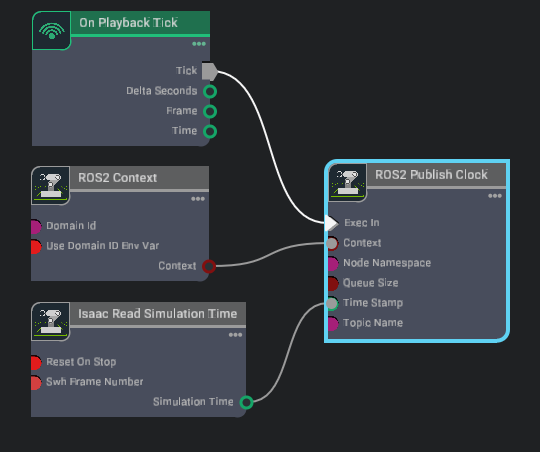

  8. Optionally, to test your installation you can setup a basic publisher of clocks inside Isaac Sim using the Omnigraph node Isaac Sim Omnigraph Tutorial.

    1. Press play in the simulator.

    2. Open a separate terminal, open the Docker, set the FASTRTPS_DEFAULT_PROFILES_FILE environment variable.

    3. Source ROS 2.

    4. Verify that ros2 topic echo /clock prints the timestamps coming from Isaac Sim.

../_images/isaac_main_installation_ros2_docker.png
