[isaacsim.examples.ui] Isaac Sim UI Example#
Version: 1.2.2
Overview#
The Isaac Sim UI Example extension demonstrates Isaac Sim’s robotics-centric UI components and patterns for extension development. This extension provides comprehensive examples of UI elements commonly used in robotics applications, serving as a reference implementation for developers creating their own Isaac Sim extensions with graphical user interfaces.
UI Components#

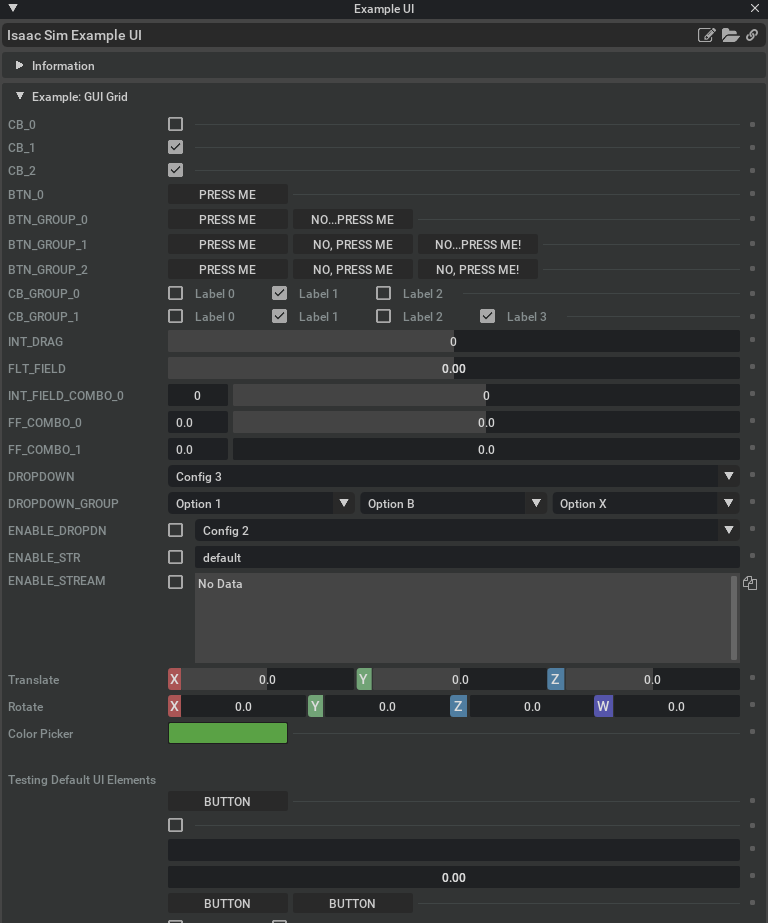

Interactive GUI Grid#
The extension provides an interactive grid layout containing various input controls essential for robotics applications:
Buttons for triggering actions and state changes
Checkboxes for boolean configuration options
Dropdown menus for selecting from predefined options
Sliders for continuous value adjustment
Toggle controls for application stepping modes
Plotting Capabilities#
Real-time plotting functionality includes both static and time series visualization:
Time series plots for monitoring sensor data and system performance over time
Multi-axis plotting support for displaying related data streams
Dynamic data updates suitable for real-time robotics monitoring
Search Interface#
A searchable list widget provides filtering capabilities:
Interactive search functionality with real-time filtering
List-based data presentation with selectable items
Pattern matching for quickly finding specific entries
Communication Controls#
Network communication interface elements include:
Hostname and port configuration fields
Connection status indicators showing current state
Connect/disconnect controls for external system integration
Progress indicators for communication operations
Progress Indicators#
Visual feedback components for long-running operations:
Progress bars showing completion percentage
Trigger buttons for initiating background processes
Status indicators for operation monitoring
Directional Control Pads#
Custom D-pad controllers designed for robot control applications:
Multi-directional input capture
Suitable for teleoperation and manual robot guidance
Integrated with Isaac Sim’s control input systems
Functionality#
The extension creates a dockable window accessible through “Window > Examples > GUI Templates” menu, demonstrating best practices for UI layout, styling, and event handling. Each component group showcases specific UI patterns commonly needed in robotics applications, from basic input controls to specialized visualization tools.
The modular design allows developers to reference specific UI implementations and adapt them for their own extensions. The examples cover both simple interactive elements and more complex components like real-time plotting and communication interfaces.
Integration#
The extension integrates with Isaac Sim’s GUI component system through the isaacsim.gui.components dependency, which provides the underlying UI utilities and controls. This integration ensures consistency with Isaac Sim’s visual design language and interaction patterns while demonstrating proper extension architecture for robotics applications.
Enable Extension#
The extension can be enabled (if not already) in one of the following ways:
Define the next entry as an application argument from a terminal.
APP_SCRIPT.(sh|bat) --enable isaacsim.examples.ui
Define the next entry under [dependencies] in an experience (.kit) file or an extension configuration (extension.toml) file.
[dependencies]
"isaacsim.examples.ui" = {}
Open the Window > Extensions menu in a running application instance and search for isaacsim.examples.ui.
Then, toggle the enable control button if it is not already active.
