GenericModelOutput

GenericModelOutput is a common data structure that is used by all sensor extensions to represent the output of the sensor. The output is defined according to ISO8855 sensor frame, which means the following:

• Angles are in degrees from [-180, 180] for azimuth and [-90, 90] for elevation in a right-handed coordinate system.

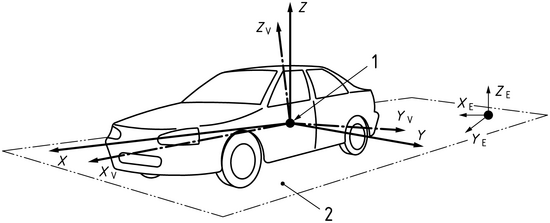

• Front is +x, left is +y, up is +z.

Structure Output Members

The following table summarizes the members of the GenericModelOutput structure.

Attribute	Type	Description
magicNumber	uint32_t	A unique identifier for the output. Should reflect 0x4E474D4F, which is the ASCII for “NGMO”.
majorVersion	uint32_t	The major version number of the model output.
minorVersion	uint32_t	The minor version number of the model output.
patchVersion	uint32_t	The patch version number of the model output.
sizeInBytes	uint64_t	The size in bytes of the contiguous buffer of the model output (incl. the struct itself).
numElements	uint32_t	The number of elements in the array members of the model output.
frameOfReference	FrameOfReference	The frame of reference for the model output. Can be FrameOfReference::SENSOR, FrameOfReference::PARENT, FrameOfReference::WORLD, or FrameOfReference::CUSTOM. The default value is FrameOfReference::SENSOR.
motionCompensationState	MotionCompensationState	The motion compensation state for the model output. Can be MotionCompensationState::NONCOMPENSATED, MotionCompensationState::COMPENSATED, or MotionCompensationState::NOT_APPLICABLE. The default value is MotionCompensationState::NOT_APPLICABLE.
frameId	uint64_t	The model (simulation) frame ID of the model output.
timestampNs	uint64_t	The timestamp of the model output in nanoseconds.
elementsCoordsType	CoordsType	The type of coordinates used in the model output. Can be CoordsType::SPHERICAL or CoordsType::CARTESIAN. The default value is CoordsType::SPHERICAL.
outputType	OutputType	The type of output. The default value is OutputType::POINTCLOUD.
modelToAppTransform	float[16]	A transformation matrix that transforms from the model’s coordinate system to the application’s coordinate system.
frameStart	FrameAtTime	The start frame of the model output. It transforms from the model’s coordinate system to the global coordinate system at frame start time.
frameEnd	FrameAtTime	The end frame of the model output. It transforms from the model’s coordinate system to the global coordinate system at frame end time.
auxType	AuxType	The specific level of auxiliary data. The default value is AuxType::NONE for no auxiliary data. See below for more information.
modality	Modality	The modality which produced this output. The default value is Modality::UNDEFINED. See below for more information.
elements	BasicElements	The basic elements of the model output. See below for more information.
auxiliaryData	void*	A pointer to the auxiliary data. This may not be filled. Can be AuxType::NONE, AuxType::BASIC, AuxType::EXTRA, or AuxType::FULL. See below for more information.

BasicElements

This table represents the basic elements of the model output.

Attribute	Type	Description
timeOffsetNs	int32_t*	The offset time of this element with respect to the parent GenericModelOutput structure’s timestampNs.
x	float*	Modality specific: - Lidar/Radar: Azimuth in degrees [-180,180] or x in m - Acoustic: Transmitter sensor mount ID
y	float*	Modality specific: - Lidar/Radar: Elevation in degrees or y in m - Acoustic: Receiver sensor mount ID
z	float*	Modality specific: - Lidar/Radar: Distance in m or z in m - Acoustic: Channel ID
scalar	float*	Sensor modality specific output scalar. - Lidar: Normalized intensity value - Acoustic: Amplitude sample value - Radar: RCS value in dBsm (check modality specific documentation for details)
flags	uint8_t*	Sensor specific flags representing ElementFlags enum values, eg. element validity.

FrameAtTime

This table represents a frame at a specific time.

Attribute	Type	Description
timestampNs	uint64_t	The timestamp of the frame in nanoseconds. The default value is 0UL.
orientation	float[4]	The quaternion orientation of the frame.
posM	float[3]	The position of the frame in meters.
padding	uint8_t[4]	Padding to align the structure to a multiple of 8 bytes.

FrameOfReference

This table represents the frame of reference for the model output.

Attribute	Type	Description
SENSOR	enum	The sensor frame of reference. The sensor pose defines the origin.
PARENT	enum	The parent frame of reference. For example, the origin of an asset the sensor is mounted on.
WORLD	enum	The world frame of reference. The origin is the center of the world.
CUSTOM	enum	The custom frame of reference. The origin and orientation are defined by the user.

MotionCompensationState

This table represents the motion compensation state for the model output. a motion-compensated output (e.g., a point cloud) means that if each element/point had a different detection time and the sensor was moving then the actual coordinates of the elements are figured out and corrected accounting for the sensor’s motion.

Examples:

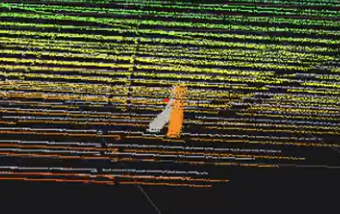

• A rotary-scanning lidar moving forward and detecting a circle on the ground.

  • Non-compensated: the circle will look as a complete closed circle, with all points at same range (sensor-to-ground distance).

  • Compensated: the circle will have a tear in it because when completing the scan the sensor would have moved.

• A solid-state line-scanning lidar that is moving detecting a vertical pole.

  • Non-compensated: the pole will look slanted.

  • Compensated: the pole will look vertical.

Attribute	Type	Description
NONCOMPENSATED	enum	The non-compensated state.
COMPENSATED	enum	The compensated state.
NOT_APPLICABLE	enum	The not applicable state.

CoordsType

This table represents the type of coordinates used in the model output.

Attribute	Type	Description
CARTESIAN	enum	The Cartesian coordinates.
SPHERICAL	enum	The spherical coordinates. The x, y, z of BasicElements contains: azimuth, elevation, distance.
NOT_APPLICABLE	enum	The not applicable coordinates (e.g. pixels).

ElementFlags

This table represents flags for elements. each value is a bit mask for the uint8_t flags member of BasicElements. currently only the VALID flag is used, and modalities do not add any additional flags.

Attribute	Type	Description
FLAG_1	enum	The first flag. Placeholder for modality specific flags.
FLAG_2	enum	The second flag. Placeholder for modality specific flags.
FLAG_3	enum	The third flag. Placeholder for modality specific flags.
FLAG_4	enum	The fourth flag. Placeholder for modality specific flags.
FLAG_5	enum	The fifth flag. Placeholder for modality specific flags.
FLAG_6	enum	The sixth flag. Placeholder for modality specific flags.
FLAG_7	enum	The seventh flag. Placeholder for modality specific flags
VALID	enum	The valid flag. Set if element is valid.

OutputType

This table represents the type of output.

Attribute	Type	Description
POINTCLOUD	enum	The point cloud type. Only option available currently.

Modality

This table represents the modality of the model which produced this output.

Attribute	Type	Description
UNDEFINED	enum	The undefined modality.
LIDAR	enum	The Lidar sensor modality.
RADAR	enum	The Radar sensor modality.
ACOUSTIC	enum	The acoustic sensor modality.
IDS	enum	The Idealized Depth Sensor modality.

AuxType

This table represents the type of auxiliary data that can be filled for a sensor. The tables below detail the different types of auxiliary data for each modality.

Attribute	Type	Description
NONE	enum	No auxiliary data.
BASIC	enum	Basic auxiliary data.
EXTRA	enum	Extra auxiliary data.
FULL	enum	Full auxiliary data.

AuxiliaryData

Every modality has its specific auxiliary data. See AuxType enum above for a list of available auxiliary data types. Below are the structures for the supported modalities:

LidarAuxiliaryData

The LidarAuxiliaryData structure contains auxiliary data for a Lidar sensor. Every pointer instance is an array of size numElements.

Attribute	Type	Description	AuxType Support
scanComplete	uint32_t	Whether the scan is complete.	>= BASIC
azimuthOffset	float	The offset to +x in degrees for specific sensors.	>= BASIC
filledAuxMembers	LidarAuxHas	Which auxiliary data is filled.	>= BASIC
padding	uint8_t[4]	Padding to align the structure to a multiple of 8 bytes.	>= BASIC
emitterId	uint32_t*	The emitter index array for a hit from a ray firing.	>= BASIC
channelId	uint32_t*	The channel index array for a hit from a ray firing.	>= BASIC
matId	uint32_t*	The material index array. Identifies with a geom matID.	>= EXTRA
tickId	uint32_t*	The tick index array. Identifies the current tick.	>= BASIC
hitNormals	float*	The hit normals array. Returned normals from geometries.	>= FULL
velocities	float*	The velocity array. Returned velocities from geometries.	>= FULL
objId	uint8_t*	The object index array (stride 16, 128-bit stable ID).	>= EXTRA
echoId	uint8_t*	The echo index array. Identifies with multiple echos.	>= BASIC
tickStates	uint8_t*	The tick states index array for multiple emitter states.	>= BASIC

The LidarAuxHas enum class is used to specify which auxiliary data is filled for a Lidar sensor. Values are bit masks for the filledAuxMembers member of LidarAuxiliaryData.

Attribute	Type	Description
NONE	enum	No auxiliary data is filled.
EMITTER_ID	enum	The emitter ID is filled.
CHANNEL_ID	enum	The channel ID is filled.
ECHO_ID	enum	The echo ID is filled.
MAT_ID	enum	The material ID is filled.
OBJ_ID	enum	The object ID is filled.
TICK_ID	enum	The tick ID is filled.
TICK_STATES	enum	The tick states are filled.
HIT_NORMALS	enum	The hit normals are filled.
VELOCITIES	enum	The velocities are filled.

AcousticAuxiliaryData

The AcousticAuxiliaryData structure contains auxiliary data for an acoustic sensor.

Understanding Acoustic Output Organization:

Acoustic sensors organize their output as signal ways. A signal way represents the acoustic waveform received at one receiver from one transmitter on a specific channel. Each signal way contains:

• Metadata fields from BasicElements (timeOffsetNs, x=transmitter ID, y=receiver ID, z=channel ID)

• A sequence of amplitude samples representing the received acoustic signal over time

When a firing event occurs (as defined in the sensor’s firing sequences), the WPM model simulates acoustic wave propagation from the transmitting sensor mount to each receiver in the specified receiver group. Each transmission-to-receiver pair produces one signal way.

Example: If a firing event has transmitter=0, receiver group=[0,1,2], and channel=0, the model generates 3 signal ways (0→0, 0→1, 0→2).

The total number of signal ways per frame depends on the firing sequence configuration. A complex firing sequence with multiple events and large receiver groups will produce more signal ways than a simple sequence.

The auxiliary data specifies the dimensionality of the signal way output:

Attribute	Type	Description	AuxType Support
numSgws	uint32_t	The number of signal ways in this frame. Depends on the firing sequence configuration (number of events multiplied by receivers per event).	>= BASIC
numSamplesPerSgw	uint32_t	The number of amplitude samples per signal way. Determined by pulse duration and sample rate.	>= BASIC

RadarAuxiliaryData

The RadarAuxiliaryData structure contains auxiliary data for a Radar sensor.

Attribute	Type	Description	AuxType Support
sensorID	uint8_t	The ID of the sensor that generated the scan.	>= BASIC
scanIdx	uint8_t	The scan index for sensors with multi-scan support.	>= BASIC
padding	uint8_t[6]	Padding to align the structure to a multiple of 8 bytes.	>= BASIC
cycleCnt	uint64_t	The scan cycle count (unique per scan index).	>= BASIC
maxRangeM	float	The maximum unambiguous range for the scan in meters.	>= BASIC
minVelMps	float	The minimum unambiguous velocity for the scan in m/s.	>= BASIC
maxVelMps	float	The maximum unambiguous velocity for the scan in m/s.	>= BASIC
minAzRad	float	The minimum unambiguous azimuth for the scan in rads.	>= BASIC
maxAzRad	float	The maximum unambiguous azimuth for the scan in rads.	>= BASIC
minElRad	float	The minimum unambiguous elevation for the scan in rads.	>= BASIC
maxElRad	float	The maximum unambiguous elevation for the scan in rads.	>= BASIC
padding2	uint8_t[4]	Padding to align the structure to a multiple of 8 bytes.	>= BASIC
rv_ms	float*	The radial velocity (m/s), always filled.	>= BASIC

IDSAuxiliaryData

The IDSAuxiliaryData structure contains auxiliary data for an IDS (Idealized Depth Sensor) sensor.

Attribute	Type	Description	AuxType Support
numRows	uint32_t	The number of rows in the sensor’s field of view.	>= BASIC
numCols	uint32_t	The number of columns in the sensor’s field of view.	>= BASIC
minColUnit	float	The minimum column unit of the specified field of view.	>= BASIC
maxColUnit	float	The maximum column unit of the specified field of view.	>= BASIC
minRowUnit	float	The minimum row unit of the specified field of view.	>= BASIC
maxRowUnit	float	The maximum row unit of the specified field of view.	>= BASIC
emitterCfgOriginX	float	The x-coordinate (m) of the origin of the emitter config.	>= BASIC
emitterCfgOriginY	float	The y-coordinate (m) of the origin of the emitter config.	>= BASIC
emitterCfgOriginZ	float	The z-coordinate (m) of the origin of the emitter config.	>= BASIC
emitterGenType	int	The type of the emitter generation.	>= BASIC
elementSize	float	The maximum size of the spatial element to generate.	>= BASIC
radius	float	The radius (m) at which the element size is defined.	>= BASIC
filledAuxMembers	IDSAuxHas	Which auxiliary data is filled.	>= BASIC
padding	uint8_t[4]	Padding to align the structure to a multiple of 8 bytes.	>= BASIC
originX	float*	The x-coordinates (m) of the origins.	>= BASIC
originY	float*	The y-coordinates (m) of the origins.	>= BASIC
originZ	float*	The z-coordinates (m) of the origins.	>= BASIC
objectId	uint32_t*	The object IDs.	>= BASIC
materialId	uint32_t*	The material IDs.	>= BASIC
velocities	float*	The velocities in m/s.	>= BASIC

The IDSAuxHas enum class is used to specify which auxiliary data is filled for an IDS sensor. Values are bit masks for the filledAuxMembers member of IDSAuxiliaryData.

Attribute	Type	Description
NONE	enum	No auxiliary data is filled.
VELOCITIES	enum	The velocities are filled.

Note

One important note is that, for the contiguous buffer, additional padding bytes are added after the last flags element (just before the auxiliary data struct) to ensure that the structure is aligned to a multiple of 8 bytes. This is done by the following code snippet:

if (size % 8 != 0)
{
    size += 8 - (size % 8); // This also has to be done for reading the auxiliary data from the buffer (where size is replaced by the offset to the start of the buffer)
}

Utility Functions

Additionally, the GenericModelOutput provides utility functions, e.g, for building the structure out of a contiguous memory block, or for copying the structure. Below, is a list of the most important utility functions:

sizeInBytes

The sizeInBytes function is a part of the omni::sensors namespace. It calculates the total size of the GenericModelOutput structure and its elements.

Function Signature

NV_HOSTDEVICE
inline size_t sizeInBytes(const GenericModelOutput& output)

Parameters

• outputconst GenericModelOutput&

  • The GenericModelOutput structure for which to calculate the size.

Returns

• size_t

  • The total size of the GenericModelOutput structure and its elements.

Description

This function calculates the total size of the GenericModelOutput structure and its elements. This includes the common basic elements and the auxiliary data. The auxiliary data is sensor modality specific and will reflect the correct size based upon the GenericModelOutput modality field.

getModelOutputPtrFromBuffer

The getModelOutputPtrFromBuffer function is a part of the omni::sensors namespace. It retrieves a pointer to a GenericModelOutput structure from a buffer, setting up both basic element pointers and modality-specific auxiliary data pointers.

Function Signature

NV_HOSTDEVICE
inline GenericModelOutput* getModelOutputPtrFromBuffer(void* inData)

Parameters

• inDatavoid*

  • The input data buffer from which to retrieve the GenericModelOutput structure.

Returns

• GenericModelOutput*

  • A pointer to the GenericModelOutput structure retrieved from the buffer, or nullptr if the magic number or version is invalid.

Description

This function first checks if the magic number of the GenericModelOutput structure is correct. If it is, the function then checks if the version of the GenericModelOutput structure is supported. If the version is supported, the function sets the basic elements and auxiliary data of the GenericModelOutput structure. If the magic number or version is not correct, the function prints an error message. Internally, it delegates to getBaseGMOPtrFromBuffer (which sets up the BasicElements SoA pointers) and setBufferAuxiliaryData (which sets up modality-specific auxiliary data pointers).

getModelOutputFromBuffer

The getModelOutputFromBuffer function is a part of the omni::sensors namespace. It returns a copy of a GenericModelOutput structure from a buffer (value semantics).

Function Signature

NV_HOSTDEVICE
inline GenericModelOutput getModelOutputFromBuffer(void* inData)

Parameters

• inDatavoid*

  • The input data buffer from which to retrieve the GenericModelOutput structure.

Returns

• GenericModelOutput

  • A copy of the GenericModelOutput structure. If the buffer is invalid, the returned structure will have magicNumber set to 0.

cpyGMOToGMO

The cpyGMOToGMO function is a part of the omni::sensors namespace. It copies the contents of one GenericModelOutput structure to another, handling host/device memory transfers via CUDA.

Function Signature

inline void cpyGMOToGMO(GenericModelOutput& dst,
                        const GenericModelOutput& src,
                        const int cudaDevice = -1,
                        const cudaStream_t stream = 0)

Parameters

• dstGenericModelOutput&

  • The destination GenericModelOutput structure.

• srcconst GenericModelOutput&

  • The source GenericModelOutput structure to copy from.

• cudaDeviceint

  • The CUDA device to use. Default is -1.

• streamcudaStream_t

  • The CUDA stream to use. Default is 0.

Description

This function copies all basic elements and auxiliary data from src to dst. It automatically detects whether the source and destination memory reside on host or device and selects the appropriate CUDA memory copy kind. Both source and destination must have their element pointers allocated via CUDA-managed memory.

cpyGMOToBuffer

The cpyGMOToBuffer function is a part of the omni::sensors namespace. It copies a GenericModelOutput structure to a buffer.

Function Signature

inline void cpyGMOToBuffer(uint8_t* buffer,
                           const omni::sensors::GenericModelOutput* gpc,
                           const bool bufferOnHost = true, // not needed for cpu only
                           const bool pointerOnHost = true, // not needed for cpu only
                           const int32_t cudaDevice = -1, // not needed for cpu only
                           const cudaStream_t stream = 0) // not needed for cpu only

Parameters

• bufferuint8_t*

  • The buffer to which to copy the GenericModelOutput structure.

• gpcconst omni::sensors::GenericModelOutput*

  • The GenericModelOutput structure to copy.

• bufferOnHostbool

  • Whether the buffer is on the host. Default is true.

• pointerOnHostbool

  • Whether the pointer is on the host. Default is true.

• cudaDeviceint32_t

  • The CUDA device to use. Default is -1.

• streamcudaStream_t

  • The CUDA stream to use. Default is 0.

Description

This function first checks if the magic number of the GenericModelOutput structure is correct. If it is, the function then checks if the version of the GenericModelOutput structure is supported. If the version is supported, the function sets the copy kind based on whether the buffer and pointer are on the host or device. If the magic number or version is not correct, the function prints an error message. The function then copies the GenericModelOutput structure to the buffer using the appropriate copy kind.

String Conversion Helpers

The following helper functions convert string representations to their corresponding enum values. They are useful when parsing configuration from text-based sources.

• CoordsType getCoordsTypeFromString(const char* coordsString)

  • Converts a string ("SPHERICAL", "CARTESIAN") to a CoordsType enum value. Defaults to CoordsType::SPHERICAL.

• FrameOfReference getFrameOfReferenceFromString(const char* frameString)

  • Converts a string ("SENSOR", "WORLD", "CUSTOM", "PARENT") to a FrameOfReference enum value. Defaults to FrameOfReference::SENSOR.

• MotionCompensationState getMotionCompensationStateFromString(const char* frameString)

  • Converts a string ("COMPENSATED", "NONCOMPENSATED", "NOT_APPLICABLE") to a MotionCompensationState enum value. Defaults to MotionCompensationState::NOT_APPLICABLE.

Plugins

IGenericModelOutputIO

The IGenericModelOutputIO class is an interface for generic model output I/O operations. It writes and reads into a HDF5 file.

Methods

• void init(const GMOIOConfig& cfg)

  • Initializes the IGenericModelOutputIO interface with the given configuration.

• void writeModelOutput(const GenericModelOutput& modelOutput)

  • Writes the given model output.

• GenericModelOutput readModelOutput(const char* clientName = nullptr, const int frameId = -1)

  • Reads a model output. If a client name is given, it reads the model output for that client. If a frame ID is given, it reads the specific frame. If no arguments are given, it reads frames in order.

• void addPacket(void* packet, const size_t packetSize)

  • Adds a packet with the given size.

Initialization

To get an object of the IGenericModelOutputIO interface, you need to call the omni::sensors::GenericModelOutputIOFactory::createInstance() static method. To initialize the IGenericModelOutputIO interface, you need to create a GMOIOConfig structure and call the init method.

GMOIOConfig

The GMOIOConfig structure is used to configure the IGenericModelOutputIO interface.

• AccessType accessType

  • The access type for the IGenericModelOutputIO interface. Default is AccessType::RECORD_FULL. See AccessType enum below.

• bool onlyValid

  • Whether to only consider valid data. Default is false.

• bool loop

  • Whether to loop the data. Default is false. Only needed for AccessType::READ.

• uint32_t maxPoints

  • The maximum number of points. Default is 0. Only needed for AccessType::READ.

• char* fileName

  • The name of the file. Default is nullptr.

• char* groupName

  • The name of the group. Default is nullptr.

• char* clientName

  • The name of the client. Default is nullptr.

AccessType

The AccessType enum specifies how the IGenericModelOutputIO interface accesses data.

Attribute	Type	Description
READ	enum	Read mode for playing back recorded data.
RECORD_BASIC	enum	Record mode that stores basic data only.
RECORD_FULL	enum	Record mode that stores full data including auxiliary.

GenericModelOutputFlags

The GenericModelOutputFlags enum provides bit flags for tracking the state of model output buffers and recording.

Attribute	Type	Description
BUFFER_COMPLETE	enum	Flag indicating the buffer is complete.
RECORD_COMPLETE	enum	Flag indicating the recording is complete.

Python Bindings

Python bindings are provided via a pybind11 module (_rtx_sensors_gmo), re-exported through omni.sensors.generic_model_output. All enums, structures, and the I/O interface described in the sections above are available from Python with identical names and semantics. This section documents only the aspects that differ from or extend the C++ API.

Module-Level Functions

Two convenience functions are available at module scope (not present in the C++ public API):

Function	Return Type	Description
getMagicNumberGMO()	int	Returns the magic number constant (0x4E474D4F).
getModelOutputFromBuffer(buf)	GenericModelOutput	Parses a GenericModelOutput from a Python buffer (bytes, bytearray, or numpy array). Returns a structure with magicNumber == 0 if invalid.

Array Semantics

Scalar structure members (magicNumber, frameId, modality, etc.) are exposed as read/write Python attributes. Array members are exposed as read-only NumPy arrays that share memory with the underlying C++ buffer - no copy is made. This includes:

• modelToAppTransform - float32 array of shape (16,).

• The BasicElements arrays (x, y, z, scalar, flags, timeOffsetNs) - each of length numElements.

• All modality-specific auxiliary arrays (e.g., emitterId, rv_ms, originX) - lengths and element types match the C++ definitions above. Auxiliary arrays that depend on filledAuxMembers (e.g., channelId, hitNormals, idsVelocities) return an empty array when their flag is not set.

FrameAtTime exposes posM and orientation as Python list[float] (lengths 3 and 4 respectively) rather than NumPy arrays, since these are fixed-size small vectors.

Differences from the C++ API

Item	Note
timeOffSetNs	Deprecated alias for timeOffsetNs (capital S). Will be removed in a future release.
idsFilledAuxMembers	Named idsFilledAuxMembers (not filledAuxMembers) to avoid shadowing the lidar property of the same name. Maps to IDSAuxiliaryData::filledAuxMembers.
idsVelocities	Named idsVelocities (not velocities) for the same reason. Maps to IDSAuxiliaryData::velocities.
readModelOutput	Signature is readModelOutput(clientName="", frameId=-1). An empty clientName is translated to a null pointer for the C++ call.
IGenericModelOutputIO()	Can be constructed directly; internally calls GenericModelOutputIOFactory::createInstance().
GMOIOConfig strings	fileName, groupName, and clientName are exposed as Python str properties (the C++ const char* pointers are managed automatically).

Example

from omni.sensors.generic_model_output import (
    GenericModelOutput,
    GMOIOConfig,
    IGenericModelOutputIO,
    AccessType,
    getModelOutputFromBuffer,
)

# Reading from an HDF5 file
cfg = GMOIOConfig()
cfg.accessType = AccessType.READ
cfg.fileName = "/path/to/recording.hdf5"

reader = IGenericModelOutputIO()
reader.init(cfg)
output = reader.readModelOutput()

print(f"Frame {output.frameId}, {output.numElements} elements")
print(f"Modality: {output.modality}")
print(f"X values: {output.x[:5]}")  # First 5 elements
