[isaacsim.asset.gen.omap] Isaac Sim Occupancy Map#

Version: 2.3.1

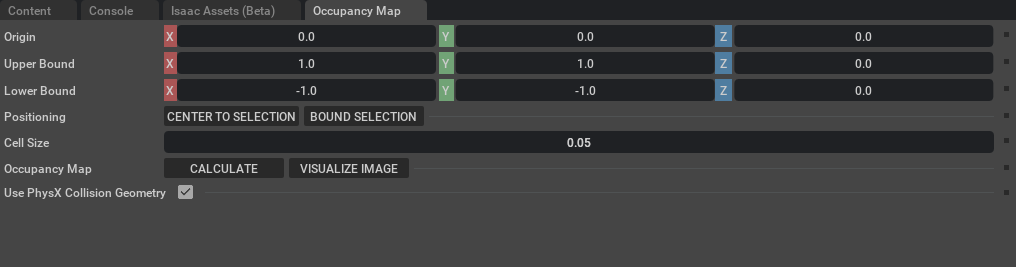

Overview#

The Isaac Sim Occupancy Map extension provides tools for generating 2D and 3D occupancy maps from USD stages. These maps represent spatial information about environments for robotics applications such as navigation, path planning, and collision avoidance.

Features#

2D and 3D Map Generation: Create both 2D projections and full 3D volumetric occupancy maps
PhysX-Based Collision Detection: Leverages PhysX for accurate collision geometry detection
Configurable Resolution: Adjustable cell size for different map resolutions
Flexible Bounds: Define custom mapping regions with origin and boundary settings
Python and C++ API: Access functionality from both Python and C++
Efficient Storage: Uses octomap library for efficient spatial data representation

Installation#

This extension is part of Isaac Sim. To enable it:

Open Isaac Sim
Go to Window > Extensions
Search for isaacsim.asset.gen.omap
Enable the extension

Usage#

Basic Usage (Python)#

import omni.physx
from isaacsim.asset.gen.omap.bindings import _omap

# Get PhysX interface and stage
physx = omni.physx.get_physx_interface()
stage_id = omni.usd.get_context().get_stage_id()

# Create generator
generator = _omap.Generator(physx, stage_id)

# Configure settings
generator.update_settings(
    0.05,  # cell_size: 5cm resolution
    1.0,   # occupied_value
    0.0,   # unoccupied_value
    0.5    # unknown_value
)

# Set mapping region
generator.set_transform(
    (0, 0, 0),      # origin
    (-5, -5, 0),    # min_bound
    (5, 5, 2)       # max_bound
)

# Generate 2D map
generator.generate2d()

# Get results
occupied_positions = generator.get_occupied_positions()
buffer = generator.get_buffer()
dimensions = generator.get_dimensions()

Using the Interface API#

from isaacsim.asset.gen.omap.bindings import _omap
from isaacsim.asset.gen.omap.utils import update_location

# Acquire interface
om = _omap.acquire_omap_interface()

# Set parameters
om.set_cell_size(0.05)
update_location(om, (0, 0, 0), (-5, -5, 0), (5, 5, 2))

# Generate map
om.generate()

# Get results
positions = om.get_occupied_positions()
buffer = om.get_buffer()

# Release when done
_omap.release_omap_interface(om)

Utility Functions#

The extension provides utility functions for common operations:

from isaacsim.asset.gen.omap.utils import (
    compute_coordinates,
    generate_image,
    update_location
)

# Compute image coordinates
top_left, top_right, bottom_left, bottom_right, coords = compute_coordinates(om, cell_size=0.05)

# Generate colored visualization
image = generate_image(
    om,
    occupied_col=[0, 0, 0, 255],      # Black
    unknown_col=[127, 127, 127, 255], # Gray
    freespace_col=[255, 255, 255, 255] # White
)

API Reference#

Generator Class#

Main class for generating occupancy maps.

Constructor: Generator(physx_ptr, stage_id)

physx_ptr: PhysX interface pointer
stage_id: USD stage identifier

Methods:

update_settings(cell_size, occupied_value, unoccupied_value, unknown_value): Configure map parameters
set_transform(origin, min_bound, max_bound): Define mapping region
generate2d(): Generate 2D occupancy map
generate3d(): Generate 3D occupancy map
get_occupied_positions(): Get positions of occupied cells
get_free_positions(): Get positions of free cells
get_min_bound(): Get minimum boundary coordinates
get_max_bound(): Get maximum boundary coordinates
get_dimensions(): Get map dimensions in cells
get_buffer(): Get raw occupancy data
get_colored_byte_buffer(occupied, unoccupied, unknown): Get RGBA visualization buffer

OccupancyMap Interface#

Plugin interface for occupancy map functionality.

Methods:

generate(): Generate the occupancy map
update(): Update visualization
set_transform(origin, min_point, max_point): Set mapping transform
set_cell_size(cell_size): Set cell resolution
get_occupied_positions(): Get occupied cell positions
get_free_positions(): Get free cell positions
get_min_bound(): Get minimum bounds
get_max_bound(): Get maximum bounds
get_dimensions(): Get dimensions
get_buffer(): Get occupancy buffer
get_colored_byte_buffer(occupied, unoccupied, unknown): Get colored buffer

Configuration#

Cell Size#

The cell size determines the resolution of the occupancy map:

Smaller cells = Higher resolution, more memory/computation
Larger cells = Lower resolution, less memory/computation
Default: 0.05 meters (5cm)
Recommended range: 0.01m to 0.5m depending on application

Mapping Bounds#

Define the region to map:

Origin: Reference point for the map (typically robot position)
Min Bound: Lower corner relative to origin
Max Bound: Upper corner relative to origin

Occupancy Values#

Three types of cells:

Occupied (default: 1.0): Contains obstacles
Unoccupied (default: 0.0): Known free space
Unknown (default: 0.5): Unexplored or unreachable areas

Examples#

Simple Room Mapping#

# Map a 10m x 10m room at 5cm resolution
generator.update_settings(0.05, 1.0, 0.0, 0.5)
generator.set_transform((0, 0, 0), (-5, -5, 0), (5, 5, 2))
generator.generate2d()

High-Resolution Local Map#

# Map a 2m x 2m area at 1cm resolution
generator.update_settings(0.01, 1.0, 0.0, 0.5)
generator.set_transform((0, 0, 0), (-1, -1, 0), (1, 1, 1))
generator.generate2d()

3D Volumetric Map#

# Generate full 3D map
generator.update_settings(0.1, 1.0, 0.0, 0.5)
generator.set_transform((0, 0, 0), (-5, -5, -2), (5, 5, 2))
generator.generate3d()

Performance Considerations#

2D vs 3D: 2D mapping is significantly faster for planar navigation
Cell Size: Doubling cell size reduces memory/computation by ~4x (2D) or ~8x (3D)
Bounds: Limit mapping area to only what’s needed
PhysX Geometry: Use collision approximations for faster results

Troubleshooting#

Empty Map Generated#

Problem: get_buffer() returns empty array

Solutions:

Ensure PhysX scene is present in stage
Verify collision geometry exists on objects
Check that bounds encompass the scene
Confirm timeline is playing during generation

Performance Issues#

Problem: Map generation is slow

Solutions:

Increase cell size
Reduce mapping bounds
Use 2D instead of 3D mapping
Enable PhysX collision approximations

Incorrect Occupancy#

Problem: Objects not appearing as occupied

Solutions:

Verify objects have collision geometry
Check object visibility
Ensure bounds are set correctly
Confirm cell size is appropriate for object sizes

Additional Resources#

Enable Extension#

The extension can be enabled (if not already) in one of the following ways:

Command-line interface

Define the next entry as an application argument from a terminal.

APP_SCRIPT.(sh|bat) --enable isaacsim.asset.gen.omap

Experience/extension configuration

Define the next entry under [dependencies] in an experience (.kit) file or an extension configuration (extension.toml) file.

[dependencies]
"isaacsim.asset.gen.omap" = {}

Extension Manager UI

Open the Window > Extensions menu in a running application instance and search for isaacsim.asset.gen.omap. Then, toggle the enable control button if it is not already active.

Python API#

Generator

Generator for creating occupancy maps from USD stages.

class Generator( self: isaacsim.asset.gen.omap.bindings._omap.Generator, arg0: omni::physx::IPhysx, arg1: int, )#

Bases: pybind11_object

Generator for creating occupancy maps from USD stages.

This class is used to generate an occupancy map for a USD stage. Assuming the stage has collision geometry information, it can produce 2D or 3D representations of the environment’s occupied and free space.

None#

Example

>>> import omni
>>> from isaacsim.asset.gen.omap.bindings import _omap
>>>
>>> physx = omni.physx.get_physx_interface()
>>> stage_id = omni.usd.get_context().get_stage_id()
>>>
>>> generator = _omap.Generator(physx, stage_id)
>>> # 0.05m cell size, output buffer will have 4 for occupied cells,
>>> # 5 for unoccupied, and 6 for cells that cannot be seen
>>> # this assumes your usd stage units are in m, and not cm
>>> generator.update_settings(.05, 4, 5, 6)
>>> # Set location to map from and the min and max bounds to map to
>>> generator.set_transform((0, 0, 0), (-2, -2, 0), (2, 2, 0))
>>> generator.generate2d()
>>> # Get locations of the occupied cells in the stage
>>> points = generator.get_occupied_positions()
>>> # Get computed 2d occupancy buffer
>>> buffer = generator.get_buffer()
>>> # Get dimensions for 2d buffer
>>> dims = generator.get_dimensions()

Initialize a new Generator instance.

Parameters:

physx_ptr – Pointer to PhysX interface used for collision detection.
stage_id – Stage ID for the USD stage to map.

Returns:

A new Generator instance.

__init__( self: isaacsim.asset.gen.omap.bindings._omap.Generator, arg0: omni::physx::IPhysx, arg1: int, ) → None#

Initialize a new Generator instance.

Parameters:

physx_ptr – Pointer to PhysX interface used for collision detection.
stage_id – Stage ID for the USD stage to map.

Returns:

A new Generator instance.

generate2d( self: isaacsim.asset.gen.omap.bindings._omap.Generator, ) → None#

Generate a 2D occupancy map.

Generates a map based on the settings and transform set. Assumes that a 2D map is generated and flattens the computed data.

Parameters:: None
Returns:: None

generate3d( self: isaacsim.asset.gen.omap.bindings._omap.Generator, ) → None#

Generate a 3D occupancy map.

Generates a map based on the settings and transform set. Creates a full 3D volumetric representation of the scene’s occupancy.

Parameters:: None
Returns:: None

get_buffer( self: isaacsim.asset.gen.omap.bindings._omap.Generator, ) → List[float]#

Get the raw occupancy buffer.

Returns:

2D array containing values for each cell in the occupancy map.: Values correspond to the occupancy state of each cell (occupied, unoccupied, or unknown) as configured in update_settings().

Return type:

list

get_colored_byte_buffer( self: isaacsim.asset.gen.omap.bindings._omap.Generator, arg0: carb::Int4, arg1: carb::Int4, arg2: carb::Int4, ) → List[str]#

Generate a colored visualization buffer.

Creates an RGBA buffer for visualization purposes, where each cell is colored according to its occupancy state.

Parameters:

occupied_color (tuple) – RGBA Value used to denote an occupied cell.
unoccupied_color (tuple) – RGBA Value used to denote an unoccupied cell.
unknown_color (tuple) – RGBA Value used to denote unknown areas that could not be reached.

Returns:

Flattened buffer containing list of RGBA values for each pixel.: Can be used to render as image directly.

Return type:

list

get_dimensions( self: isaacsim.asset.gen.omap.bindings._omap.Generator, ) → carb::Int3#

Get the dimensions of the map in cell units.

Returns:: Dimensions for output buffer (width, height, depth).
Return type:: tuple

get_free_positions( self: isaacsim.asset.gen.omap.bindings._omap.Generator, ) → List[carb::Float3]#

Get positions of all free (unoccupied) cells.

Returns:

List of 3D points in stage coordinates from the generated map,: containing free locations.

Return type:

list

get_max_bound( self: isaacsim.asset.gen.omap.bindings._omap.Generator, ) → carb::Float3#

Get the maximum boundary point of the map.

Returns:: Maximum bound for generated occupancy map in stage coordinates.
Return type:: tuple

get_min_bound( self: isaacsim.asset.gen.omap.bindings._omap.Generator, ) → carb::Float3#

Get the minimum boundary point of the map.

Returns:: Minimum bound for generated occupancy map in stage coordinates.
Return type:: tuple

get_occupied_positions( self: isaacsim.asset.gen.omap.bindings._omap.Generator, ) → List[carb::Float3]#

Get positions of all occupied cells.

Returns:

List of 3D points in stage coordinates from the generated map,: containing occupied locations.

Return type:

list

set_transform( self: isaacsim.asset.gen.omap.bindings._omap.Generator, arg0: carb::Float3, arg1: carb::Float3, arg2: carb::Float3, ) → None#

Set origin and bounds for mapping.

Parameters:

origin (tuple of float) – Origin in stage to start mapping from, must be in unoccupied space.
min_bound (tuple of float) – Minimum bound to map up to.
max_bound (tuple of float) – Maximum bound to map up to.

Returns:

None

update_settings( self: isaacsim.asset.gen.omap.bindings._omap.Generator, arg0: float, arg1: float, arg2: float, arg3: float, ) → None#

Update the settings used for generating the occupancy map.

Parameters:

cell_size (float) – Size of the cell in stage units, resolution of the grid.
occupied_value (float) – Value used to denote an occupied cell.
unoccupied_value (float) – Value used to denote an unoccupied cell.
unknown_value (float) – Value used to denote unknown areas that could not be reached from the starting location.

Returns:

None

Python API

[isaacsim.asset.gen.omap] Isaac Sim Occupancy Map#

Overview#

Features#

Installation#

Usage#

Basic Usage (Python)#

Using the Interface API#

Utility Functions#

API Reference#

Generator Class#

OccupancyMap Interface#

Configuration#

Cell Size#

Mapping Bounds#

Occupancy Values#

Examples#

Simple Room Mapping#

High-Resolution Local Map#

3D Volumetric Map#

Performance Considerations#

Troubleshooting#

Empty Map Generated#

Performance Issues#

Incorrect Occupancy#

Related Extensions#

Additional Resources#

Enable Extension#

Python API#
