Mobile Robot Controllers

Differential controller

The differential controller uses the speed differential between the left and right wheels to control the robot’s linear and angular velocity. The differential robot enables the robot to turn in place and is used in the NVIDIA Nova Carter robot.

The Math

\[ \begin{align}\begin{aligned}\omega_R &= \frac{1}{2r}(2V + \omega l_{tw})\\\omega_L &= \frac{1}{2r}(2V - \omega l_{tw})\end{aligned}\end{align} \]

where \(\omega\) is the desired angular velocity, \(V\) is the desired linear velocity, \(r\) is the radius of the wheels, and \(l_{tw}\) is the distance between them. \(\omega_R\) is the desired right wheel angular velocity and \(\omega_L\) is the desired left wheel angular velocity.

OmniGraph Node

Differential Controller Omnigraph Inputs

Input Commands	description
execIn	Input execution
wheelRadius	Radius of the wheels in meters
wheelDistance	Distance between the wheels in meters
dt	Delta time in seconds
maxAcceleration	Max linear acceleration for moving forward and reverse in m/s^2, 0.0 means not set
maxDeceleration	Max linear breaking of the robot in m/s^2, 0.0 means not set
maxAngularAcceleration	Max angular acceleration of the robot in rad/s^2, 0.0 means not set
maxLinearSpeed	Max linear speed allowed for the robot in m/s, 0.0 means not set
maxAngularSpeed	Max angular speed allowed for the robot in rad/s, 0.0 means not set
maxWheelSpeed	Max wheel speed in rad/s
Desired Linear Velocity	Desired linear velocity in m/s
Desired Angular Velocity	Desired angular velocity in rad/s

Differential Controller Omnigraph Outputs

Output Commands	description
VelocityCommand	Velocity command for the left and right wheel in m/s and rad/s

Python

The code snippet below setups the differential controller for a NVIDIA Jetbot with a wheel radius of 3 cm and a base of 11.25cm, with a linear speed of 0.3m/s and angular speed of 1.0rad/s.

import numpy as np
import asyncio
from isaacsim.core.api import World
from isaacsim.robot.wheeled_robots.controllers.differential_controller import DifferentialController
from isaacsim.robot.wheeled_robots.robots import WheeledRobot
from isaacsim.storage.native import get_assets_root_path

async def differential_controller_example():
    if World.instance():
        World.instance().clear_instance()
    world = World()
    await world.initialize_simulation_context_async()

    world.scene.add_default_ground_plane()
    assets_root_path = get_assets_root_path()
    jetbot_asset_path = assets_root_path + "/Isaac/Robots/NVIDIA/Jetbot/jetbot.usd"
    my_jetbot = world.scene.add(
        WheeledRobot(
            prim_path="/World/Jetbot",
            name="my_jetbot",
            wheel_dof_names=["left_wheel_joint", "right_wheel_joint"],
            create_robot=True,
            usd_path=jetbot_asset_path,
            position=np.array([-1.5, -1.5, 0]),
        )
    )
    await world.reset_async()
    await world.play_async()

    wheel_radius = 0.03
    wheel_base = 0.1125
    controller = DifferentialController("test_controller", wheel_radius, wheel_base)
    linear_speed = 0.3
    angular_speed = 1.0

    command = [linear_speed, angular_speed]
    my_jetbot.apply_wheel_actions(controller.forward(command))

    await asyncio.sleep(5.0)  # Run for 5 seconds
    world.pause()
# Run the example
asyncio.ensure_future(differential_controller_example())

Holonomic Controller

The holonomic controller computes the joint drive commands required on omni-directional robots to produce the commanded forward, lateral, and yaw speeds of the robot. An example of a holonomic robot is the NVIDIA Kaya robot. The problem is framed as a quadratic program to minimize the residual “net force” acting on the center of mass.

Note

The wheel joints of the robot prim must have additional attributes to definine the roller angles and radii of the mecanum wheels.

stage = omni.usd.get_context().get_stage()
joint_prim = stage.GetPrimAtPath("/path/to/wheel_joint")
joint_prim.CreateAttribute("isaacmecanumwheel:radius",Sdf.ValueTypeNames.Float).Set(0.12)
joint_prim.CreateAttribute("isaacmecanumwheel:angle",Sdf.ValueTypeNames.Float).Set(10.3)

The HolonomicRobotUsdSetup class automates this process.

The Math

The cost funciton is defined as the control input to the robot joints. By minimizing the control inputs, excess acceleration and be reduced.

\[J = min(X^T \cdot X)\]

The equality constrains are set by the linear and angular target velocity Inputs:

\[ \begin{align}\begin{aligned}v_{input} &= V^T \cdot X\\w_{input} &= (V \times D_{wheel dist to COM}) \cdot X\end{aligned}\end{align} \]

OmniGraph Node

Holonomic Controller Omnigraph Inputs

Input Commands	description
execIn	Input execution
wheelRadius	Array of wheel radius in meters
wheelPositions	Position of the wheel with respect to chassis’ center of mass in meters
wheelOrientations	Orientation of the wheel with respect to chassis’ center of mass frame
mecanumAngles	Angles of the mecanum wheels with respect to wheel’s rotation axis in radians
wheelAxis	The rotation axis of the wheels
upAxis	The up axis (default to z axis)
Velocity Commands for the vehicle	Velocity in x and y (m/s) and rotation (rad/s)
maxLinearSpeed	Maximum speed allowed for the vehicle in m/s
maxAngularSpeed	Maximum angular rotation speed allowed for the vehicles in rad/s
maxWheelSpeed	Maximum rotation speed allowed for the wheel joints in rad/s
linearGain	Gain for the linear velocity input
angularGain	Gain for the angular input

Holonomic Controller Omnigraph Outputs

Output Commands	description
jointVelocityCommand	Velocity command for the wheel joints in rad/s

Python

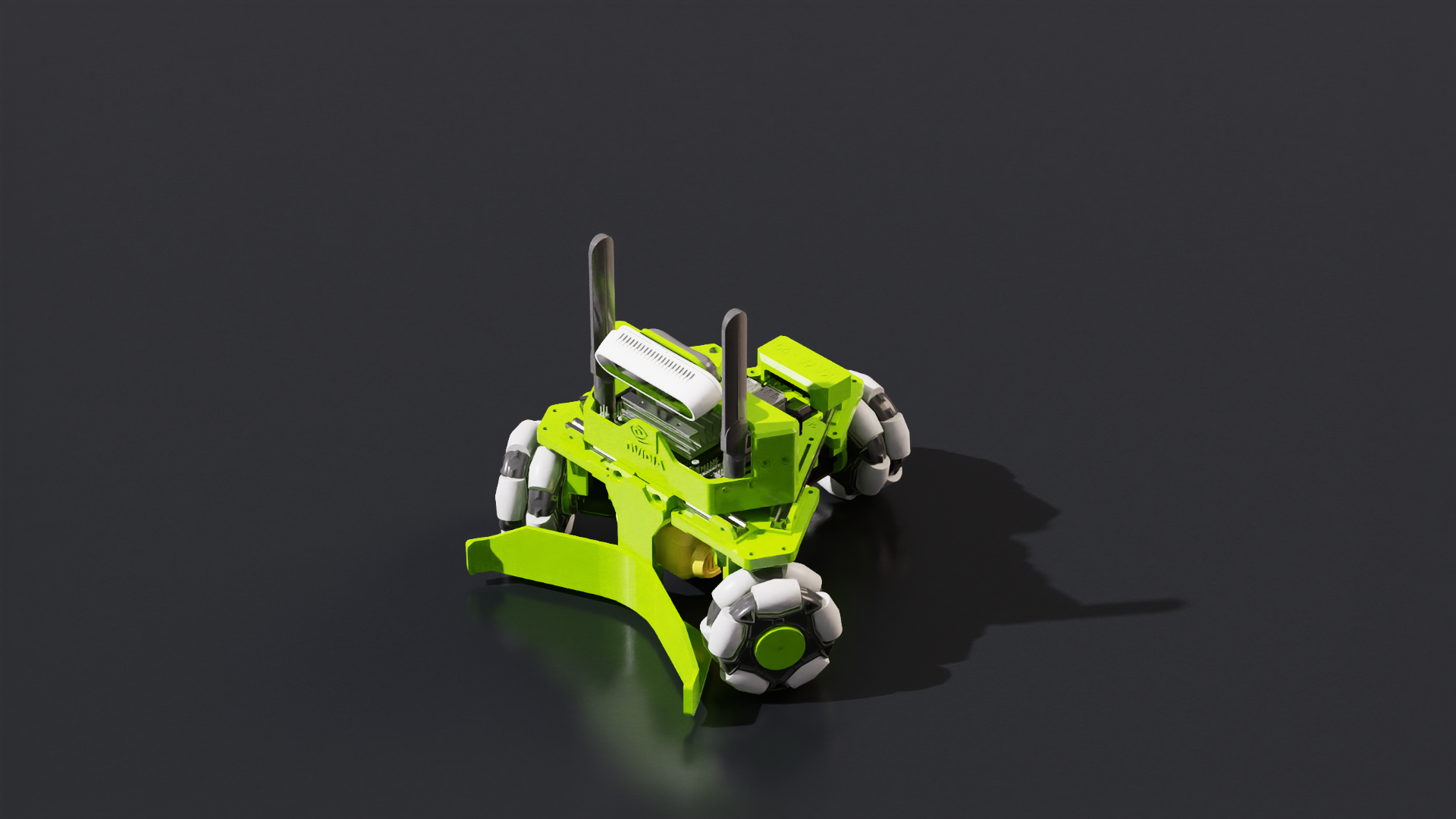

The code snippet below computes the joint velocity output for a three wheeled NVIDIA Kaya holonomic robot with command velocity of [1.0, 1.0, 0.1]

import numpy as np
import asyncio
from isaacsim.core.api import World
from isaacsim.robot.wheeled_robots.controllers.holonomic_controller import HolonomicController
from isaacsim.robot.wheeled_robots.robots import WheeledRobot
from isaacsim.storage.native import get_assets_root_path

async def holonomic_controller_example():
    if World.instance():
        World.instance().clear_instance()
    world = World()
    await world.initialize_simulation_context_async()

    world.scene.add_default_ground_plane()
    assets_root_path = get_assets_root_path()
    kaya_asset_path = assets_root_path + "/Isaac/Robots/NVIDIA/Kaya/kaya.usd"
    my_kaya = world.scene.add(
        WheeledRobot(
            prim_path="/World/Kaya",
            name="my_kaya",
            wheel_dof_names=["axle_0_joint", "axle_1_joint", "axle_2_joint"],
            create_robot=True,
            usd_path=kaya_asset_path,
            position=np.array([-1, 0, 0]),
        )
    )
    await world.reset_async()
    await world.play_async()

    wheel_radius = [0.04, 0.04, 0.04]
    wheel_orientations = [[0, 0, 0, 1], [0.866, 0, 0, -0.5], [0.866, 0, 0, 0.5]]
    wheel_positions = [
    [-0.0980432, 0.000636773, -0.050501],
    [0.0493475, -0.084525, -0.050501],
    [0.0495291, 0.0856937, -0.050501],
    ]
    mecanum_angles = [90, 90, 90]
    command = [1.0, 1.0, 0.1]

    controller = HolonomicController(
        name="holonomic_controller",
        wheel_radius=wheel_radius,
        wheel_positions=wheel_positions,
        wheel_orientations=wheel_orientations,
        mecanum_angles=mecanum_angles,
    )
    my_kaya.apply_wheel_actions(controller.forward(command))

    await asyncio.sleep(5.0)  # Run for 5 seconds
    world.pause()
# Run the example
asyncio.ensure_future(holonomic_controller_example())

Ackermann Controller

The ackeramnn controller is commonly used for robots with steerable wheels, an example of steerable robot is the NVIDIA leatherback robot. The ackeramnn controller in Isaac Sim will assume the desired steering angle and linear velocity is provided, and based on the robot geometry

The Math

Compute the steering angle offset between the left and right steering wheels:

\[ \begin{align}\begin{aligned}R_{icr} &= \frac{l_{wb}}{tan(\theta_{steer})}\\\theta_L &= \arctan[\frac{l_{wb}}{R_{icr} - 0.5 * l_{tw}}]\\\theta_R &= \arctan[\frac{l_{wb}}{R_{icr} + 0.5 * l_{tw}}]\end{aligned}\end{align} \]

where \(R_{icr}\) is the radius to the instantaneous center of rotation, \(\theta_{steer}\) is the desired steering angle, \(l_{wb}\) is the distance between rear and front axles (wheel base), \(l_{tw}\) is the track width

Compute the individual wheel velocities (Forward steering case):

First step is to find the distance between the wheels and the instantaneous center of rotation.

\[ \begin{align}\begin{aligned}D_{front} &= \sqrt{ (R_{icr} \pm 0.5 l_{tw})^2 + (l_{wb})^2 }\\D_{rear} &= R_{icr} \pm 0.5 l_{tw}\end{aligned}\end{align} \]

Note

for \(\pm\), use \(-\) for the wheel closer to the \(R_{icr}\) and \(+\) for the wheel further to the \(R_{icr}\)

Then desired wheel velocity can be computed

\[ \begin{align}\begin{aligned}\omega_{front} &= \frac{V_{desired}}{R_{icr}} \cdot \frac{D_{front}}{r_{front}}\\\omega_{rear} &= \frac{V_{desired}}{R_{icr}} \cdot \frac{D_{rear}}{r_{rear}}\end{aligned}\end{align} \]

Where \(V_{desired}\) is the desired linear velocity, \(r_{front}\) is the desired front wheel radius, and \(r_{rear}\) is the desired rear wheel radius.

OmniGraph Node

Ackermann Controller Omnigraph Inputs

Input Commands	description
execIn	Input execution
acceleration	Desired forward acceleration for the robot in m/s^2
speed	Desired forward speed in m/s
steeringAngle	Desired steering angle in radians, by default it is positive for turning left for a front wheel drive
currentLinearVelocity	Current linear velocity of the robot in m/s
wheelBase	Distance between the front and rear axles of the robot in meters
trackWidth	Distance between the left and right rear wheels of the robot in meters
turningWheelRadius	Radius of the front wheels of the robot in meters
maxWheelVelocity	Maximum angular velocity of the robot wheel in rad/s
invertSteeringAngle	Flips the sign of the steering angle, Set to true for rear wheel steering
useAcceleration	Use acceleration as an input, Set to false to use speed as input instead
maxWheelRotation	Maximum angle of rotation for the front wheels in radians
dt	Delta time for the simulation step

Ackermann Controller Omnigraph Outputs

Output Commands	description
execOut	Output execution
leftWheelAngle	Angle for the left turning wheel in radians
rightWheelAngle	Angle for the right turning wheel in radians
wheelRotationVelocity	Angular velocity for the turning wheels in rad/s

Python

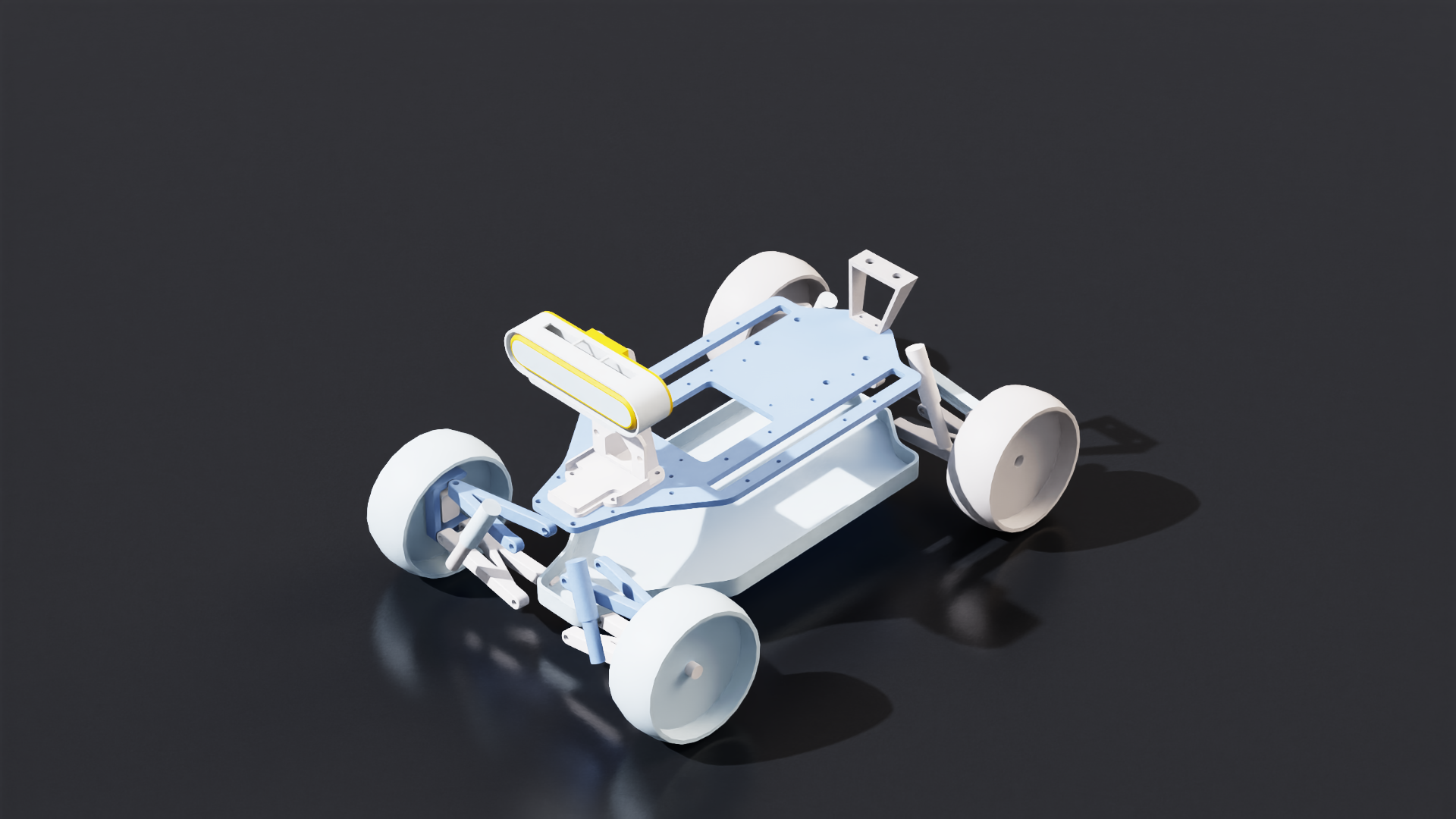

The python snippet below creates an ackerrmann controller for a NVIDIA Leatherback robot with a wheel base of 1.65m, trackwidth of 1.25m, and wheel radius of 0.25m, sending it a desired forward velocity of 1.1 rad/s and steering angle of 0.1rad.

import numpy as np
import asyncio
from isaacsim.core.api import World
from isaacsim.robot.wheeled_robots.controllers.ackermann_controller import AckermannController
from isaacsim.core.api.robots import Robot
from isaacsim.core.utils.types import ArticulationAction
from isaacsim.storage.native import get_assets_root_path
import isaacsim.core.utils.stage as stage_utils

async def ackermann_controller_example():
    if World.instance():
        World.instance().clear_instance()
    world = World()
    await world.initialize_simulation_context_async()
    world.scene.add_default_ground_plane()

    assets_root_path = get_assets_root_path()
    leatherback_asset_path = assets_root_path + "/Isaac/Robots/NVIDIA/Leatherback/leatherback.usd"
    leatherback_prim_path = "/World/Leatherback"
    stage_utils.add_reference_to_stage(leatherback_asset_path, leatherback_prim_path)
    my_leatherback = world.scene.add(
        Robot(
            prim_path=leatherback_prim_path,
            name="my_leatherback"
        )
    )
    await world.reset_async()
    await world.play_async()

    # Steering joints (position control)
    steering_joint_names = [
        "Knuckle__Upright__Front_Left",
        "Knuckle__Upright__Front_Right",
    ]
    # Wheel joints (velocity control)
    wheel_joint_names = [
        "Wheel__Knuckle__Front_Left",
        "Wheel__Knuckle__Front_Right",
        "Wheel__Upright__Rear_Left",
        "Wheel__Upright__Rear_Right",
    ]

    steering_joint_indices = [my_leatherback.get_dof_index(name) for name in steering_joint_names]
    wheel_joint_indices = [my_leatherback.get_dof_index(name) for name in wheel_joint_names]

    wheel_base = 1.65
    track_width = 1.25
    wheel_radius = 0.25
    desired_forward_vel = 1.1  # rad/s
    desired_steering_angle = 0.1  # rad
    # Setting acceleration, steering velocity, and dt to 0 to instantly reach the target steering and velocity
    acceleration = 0.0  # m/s^2
    steering_velocity = 0.0  # rad/s
    dt = 0.0  # secs

    controller = AckermannController(
    "test_controller", wheel_base=wheel_base, track_width=track_width, front_wheel_radius=wheel_radius, back_wheel_radius=wheel_radius
    )
    actions = controller.forward([
            desired_steering_angle,
            steering_velocity,
            desired_forward_vel,
            acceleration,
            dt
        ])

    full_joint_positions = np.zeros(my_leatherback.num_dof)
    full_joint_positions[steering_joint_indices[0]] = actions.joint_positions[0]  # Left steering
    full_joint_positions[steering_joint_indices[1]] = actions.joint_positions[1]  # Right steering
    # Create full joint velocity array (for wheels)
    full_joint_velocities = np.zeros(my_leatherback.num_dof)
    full_joint_velocities[wheel_joint_indices[0]] = actions.joint_velocities[0]  # FL wheel
    full_joint_velocities[wheel_joint_indices[1]] = actions.joint_velocities[1]  # FR wheel
    full_joint_velocities[wheel_joint_indices[2]] = actions.joint_velocities[2]  # BL wheel
    full_joint_velocities[wheel_joint_indices[3]] = actions.joint_velocities[3]  # BR wheel

    # Apply combined action
    combined_action = ArticulationAction(
        joint_positions=full_joint_positions,
        joint_velocities=full_joint_velocities
    )
    my_leatherback.apply_action(combined_action)

    await asyncio.sleep(5.0)  # Run for 5 seconds
    world.pause()
# Run the example
asyncio.ensure_future(ackermann_controller_example())
