Teleoperation and Imitation Learning#

Teleoperation#

We provide interfaces for providing commands in SE(2) and SE(3) space for robot control. In case of SE(2) teleoperation, the returned command is the linear x-y velocity and yaw rate, while in SE(3), the returned command is a 6-D vector representing the change in pose.

To play inverse kinematics (IK) control with a keyboard device:

./isaaclab.sh -p scripts/environments/teleoperation/teleop_se3_agent.py --task Isaac-Lift-Cube-Franka-IK-Rel-v0 --num_envs 1 --teleop_device keyboard

For smoother operation and off-axis operation, we recommend using a SpaceMouse as the input device. Providing smoother demonstrations will make it easier for the policy to clone the behavior. To use a SpaceMouse, simply change the teleop device accordingly:

./isaaclab.sh -p scripts/environments/teleoperation/teleop_se3_agent.py --task Isaac-Lift-Cube-Franka-IK-Rel-v0 --num_envs 1 --teleop_device spacemouse

Note

If the SpaceMouse is not detected, you may need to grant additional user permissions by running sudo chmod 666 /dev/hidraw<#> where <#> corresponds to the device index of the connected SpaceMouse.

To determine the device index, list all hidraw devices by running ls -l /dev/hidraw*. Identify the device corresponding to the SpaceMouse by running cat /sys/class/hidraw/hidraw<#>/device/uevent on each of the devices listed from the prior step.

We recommend using local deployment of Isaac Lab to use the SpaceMouse. If using container deployment (Docker Guide), you must manually mount the SpaceMouse to the isaac-lab-base container by adding a devices attribute with the path to the device in your docker-compose.yaml file:

devices:
   - /dev/hidraw<#>:/dev/hidraw<#>

where <#> is the device index of the connected SpaceMouse.

If you are using the IsaacLab + CloudXR container deployment (Setting up CloudXR Teleoperation), you can add the devices attribute under the services -> isaac-lab-base section of the docker/docker-compose.cloudxr-runtime.patch.yaml file.

Isaac Lab is only compatible with the SpaceMouse Wireless and SpaceMouse Compact models from 3Dconnexion.

For tasks that benefit from the use of an extended reality (XR) device with hand tracking, Isaac Lab supports using NVIDIA CloudXR to immersively stream the scene to compatible XR devices for teleoperation. Note that when using hand tracking we recommend using the absolute variant of the task (Isaac-Stack-Cube-Franka-IK-Abs-v0), which requires the handtracking_abs device:

./isaaclab.sh -p scripts/environments/teleoperation/teleop_se3_agent.py --task Isaac-Stack-Cube-Franka-IK-Abs-v0 --teleop_device handtracking_abs --device cpu

Note

See Setting up CloudXR Teleoperation to learn more about using CloudXR with Isaac Lab.

The script prints the teleoperation events configured. For keyboard, these are as follows:

Keyboard Controller for SE(3): Se3Keyboard
   Reset all commands: R
   Toggle gripper (open/close): K
   Move arm along x-axis: W/S
   Move arm along y-axis: A/D
   Move arm along z-axis: Q/E
   Rotate arm along x-axis: Z/X
   Rotate arm along y-axis: T/G
   Rotate arm along z-axis: C/V

For SpaceMouse, these are as follows:

SpaceMouse Controller for SE(3): Se3SpaceMouse
   Reset all commands: Right click
   Toggle gripper (open/close): Click the left button on the SpaceMouse
   Move arm along x/y-axis: Tilt the SpaceMouse
   Move arm along z-axis: Push or pull the SpaceMouse
   Rotate arm: Twist the SpaceMouse

The next section describes how teleoperation devices can be used for data collection for imitation learning.

Demo: Data Generation and Policy Training for a Humanoid Robot#

Isaac Lab Mimic supports data generation for robots with multiple end effectors. In the following demonstration, we will show how to generate data to train a Fourier GR-1 humanoid robot to perform a pick and place task.

Optional: Collect and annotate demonstrations#

Collect human demonstrations#

Note

Data collection for the GR-1 humanoid robot environment requires use of an Apple Vision Pro headset. If you do not have access to an Apple Vision Pro, you may skip this step and continue on to the next step: Generate the dataset. A pre-recorded annotated dataset is provided in the next step .

Tip

The GR1 scene utilizes the wrist poses from the Apple Vision Pro (AVP) as setpoints for a differential IK controller (Pink-IK). The differential IK controller requires the user’s wrist pose to be close to the robot’s initial or current pose for optimal performance. Rapid movements of the user’s wrist may cause it to deviate significantly from the goal state, which could prevent the IK controller from finding the optimal solution. This may result in a mismatch between the user’s wrist and the robot’s wrist. You can increase the gain of the all Pink-IK controller’s FrameTasks to track the AVP wrist poses with lower latency. However, this may lead to more jerky motion. Separately, the finger joints of the robot are retargeted to the user’s finger joints using the dex-retargeting library.

Set up the CloudXR Runtime and Apple Vision Pro for teleoperation by following the steps in Setting up CloudXR Teleoperation. CPU simulation is used in the following steps for better XR performance when running a single environment.

Collect a set of human demonstrations using the command below. A success demo requires the object to be placed in the bin and for the robot’s right arm to be retracted to the starting position. The Isaac Lab Mimic Env GR-1 humanoid robot is set up such that the left hand has a single subtask, while the right hand has two subtasks. The first subtask involves the right hand remaining idle while the left hand picks up and moves the object to the position where the right hand will grasp it. This setup allows Isaac Lab Mimic to interpolate the right hand’s trajectory accurately by using the object’s pose, especially when poses are randomized during data generation. Therefore, avoid moving the right hand while the left hand picks up the object and brings it to a stable position. We recommend 10 successful demonstrations for good data generation results. An example of a successful demonstration is shown below:

GR-1 humanoid robot performing a pick and place task

Collect demonstrations by running the following command:

./isaaclab.sh -p scripts/tools/record_demos.py \
--device cpu \
--task Isaac-PickPlace-GR1T2-Abs-v0 \
--teleop_device dualhandtracking_abs \
--dataset_file ./datasets/dataset_gr1.hdf5 \
--num_demos 10 --enable_pinocchio

Tip

If a demo fails during data collection, the environment can be reset using the teleoperation controls panel in the XR teleop client on the Apple Vision Pro or via voice control by saying “reset”. See Teleoperate an Isaac Lab Robot with Apple Vision Pro for more details.

The robot uses simplified collision meshes for physics calculations that differ from the detailed visual meshes displayed in the simulation. Due to this difference, you may occasionally observe visual artifacts where parts of the robot appear to penetrate other objects or itself, even though proper collision handling is occurring in the physics simulation.

Warning

When first starting the simulation window, you may encounter the following DeprecationWarning and UserWarning error:

DeprecationWarning: get_prim_path is deprecated and will be removed
in a future release. Use get_path.
UserWarning: Sum of faceVertexCounts (25608) does not equal sum of
length of GeomSubset indices (840) for prim
'/GR1T2_fourier_hand_6dof/waist_pitch_link/visuals/waist_pitch_link/mesh'.
Material mtl files will not be created.

This error can be ignored and will not affect the data collection process. The error will be patched in a future release of Isaac Sim.

You can replay the collected demonstrations by running the following command:

./isaaclab.sh -p scripts/tools/replay_demos.py \
--device cpu \
--task Isaac-PickPlace-GR1T2-Abs-v0 \
--dataset_file ./datasets/dataset_gr1.hdf5 --enable_pinocchio

Note

Non-determinism may be observed during replay as physics in IsaacLab are not determimnistically reproducible when using env.reset.

Annotate the demonstrations#

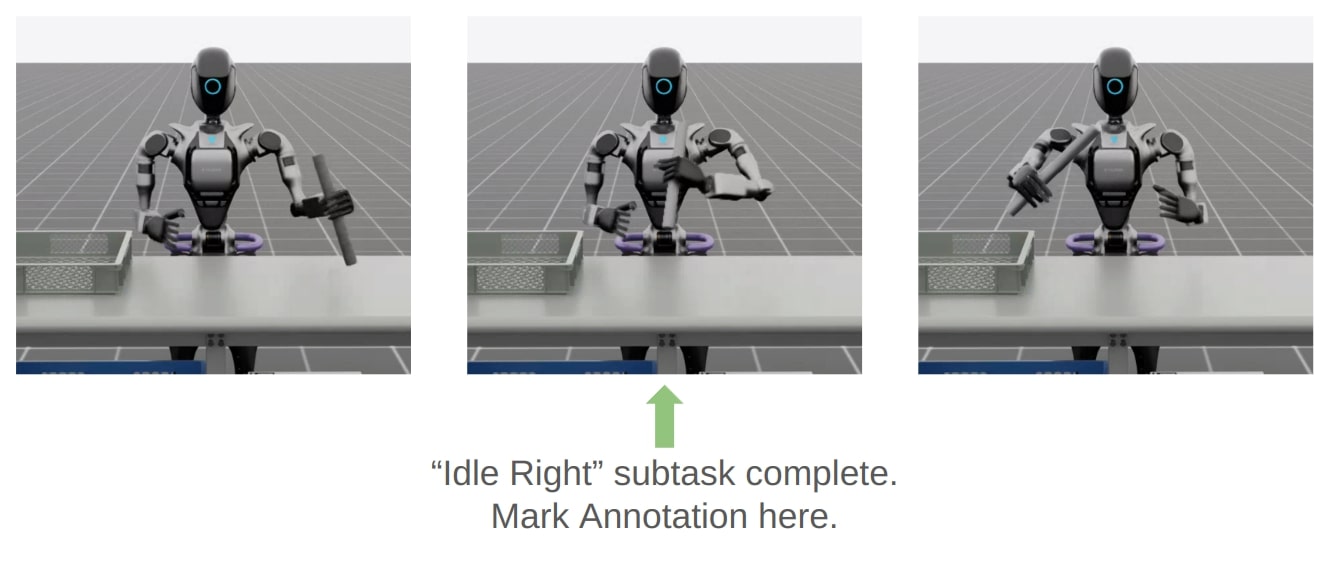

Unlike the prior Franka stacking task, the GR-1 pick and place task uses manual annotation to define subtasks. Each demo requires a single annotation between the first and second subtask of the right arm. This annotation (“S” button press) should be done when the right robot arm finishes the “idle” subtask and begins to move towards the target object. An example of a correct annotation is shown below:

../../_images/gr-1_pick_place_annotation.jpg

Annotate the demonstrations by running the following command:

./isaaclab.sh -p scripts/imitation_learning/isaaclab_mimic/annotate_demos.py \
--device cpu \
--task Isaac-PickPlace-GR1T2-Abs-Mimic-v0 \
--input_file ./datasets/dataset_gr1.hdf5 \
--output_file ./datasets/dataset_annotated_gr1.hdf5 --enable_pinocchio

Note

The script prints the keyboard commands for manual annotation and the current subtask being annotated:

Annotating episode #0 (demo_0)
   Playing the episode for subtask annotations for eef "right".
   Subtask signals to annotate:
      - Termination:      ['idle_right']

   Press "N" to begin.
   Press "B" to pause.
   Press "S" to annotate subtask signals.
   Press "Q" to skip the episode.

Tip

If the object does not get placed in the bin during annotation, you can press “N” to replay the episode and annotate again. Or you can press “Q” to skip the episode and annotate the next one.

Generate the dataset#

If you skipped the prior collection and annotation step, download the pre-recorded annotated dataset dataset_annotated_gr1.hdf5 from here. Place the file under IsaacLab/datasets and run the following command to generate a new dataset with 1000 demonstrations.

./isaaclab.sh -p scripts/imitation_learning/isaaclab_mimic/generate_dataset.py \
--device cuda --headless --num_envs 10 --generation_num_trials 1000 --enable_pinocchio \
--input_file ./datasets/dataset_annotated_gr1.hdf5 --output_file ./datasets/generated_dataset_gr1.hdf5

Train a policy#

Use Robomimic to train a policy for the generated dataset.

./isaaclab.sh -p scripts/imitation_learning/robomimic/train.py \
--task Isaac-PickPlace-GR1T2-Abs-v0 --algo bc \
--normalize_training_actions \
--dataset ./datasets/generated_dataset_gr1.hdf5

The training script will normalize the actions in the dataset to the range [-1, 1]. The normalization parameters are saved in the model directory under PATH_TO_MODEL_DIRECTORY/logs/normalization_params.txt. Record the normalization parameters for later use in the visualization step.

Note

By default the trained models and logs will be saved to IssacLab/logs/robomimic.

Visualize the results#

Visualize the results of the trained policy by running the following command, using the normalization parameters recorded in the prior training step:

./isaaclab.sh -p scripts/imitation_learning/robomimic/play.py \
--device cuda \
--enable_pinocchio \
--task Isaac-PickPlace-GR1T2-Abs-v0 \
--num_rollouts 50 \
--norm_factor_min <NORM_FACTOR_MIN> \
--norm_factor_max <NORM_FACTOR_MAX> \
--checkpoint /PATH/TO/desired_model_checkpoint.pth

Note

Change the NORM_FACTOR in the above command with the values generated in the training step.

Common Pitfalls when Generating Data#

Demonstrations are too long:

Longer time horizon is harder to learn for a policy
Start close to the first object and minimize motions

Demonstrations are not smooth:

Irregular motion is hard for policy to decipher
Better teleop devices result in better data (i.e. SpaceMouse is better than Keyboard)

Pauses in demonstrations:

Pauses are difficult to learn
Keep the human motions smooth and fluid

Excessive number of subtasks:

Minimize the number of defined subtasks for completing a given task
Less subtacks results in less stitching of trajectories, yielding higher data generation success rate

Lack of action noise:

Action noise makes policies more robust

Recording cropped too tight:

If recording stops on the frame the success term triggers, it may not re-trigger during replay
Allow for some buffer at the end of recording

Non-deterministic replay:

Physics in IsaacLab are not deterministically reproducible when using env.reset so demonstrations may fail on replay
Collect more human demos than needed, use the ones that succeed during annotation
All data in Isaac Lab Mimic generated HDF5 file represent a successful demo and can be used for training (even if non-determinism causes failure when replayed)

Creating Your Own Isaac Lab Mimic Compatible Environments#

How it works#

Isaac Lab Mimic works by splitting the input demonstrations into subtasks. Subtasks are user-defined segments in the demonstrations that are common to all demonstrations. Examples for subtasks are “grasp an object”, “move end effector to some pre-defined position”, “release object” etc.. Note that most subtasks are defined with respect to some object that the robot interacts with.

Subtasks need to be defined, and then annotated for each input demonstration. Annotation can either happen algorithmically by defining heuristics for subtask detection, as was done in the example above, or it can be done manually.

With subtasks defined and annotated, Isaac Lab Mimic utilizes a small number of helper methods to then transform the subtask segments, and generate new demonstrations by stitching them together to match the new task at hand.

For each thusly generated candidate demonstration, Isaac Lab Mimic uses a boolean success criteria to determine whether the demonstration succeeded in performing the task, and if so, add it to the output dataset. Success rate of candidate demonstrations can be as high as 70% in simple cases, and as low as <1%, depending on the difficulty of the task, and the complexity of the robot itself.

Configuration and subtask definition#

Subtasks, among other configuration settings for Isaac Lab Mimic, are defined in a Mimic compatible environment configuration class that is created by extending the existing environment config with additional Mimic required parameters.

All Mimic required config parameters are specified in the MimicEnvCfg class.

The config class FrankaCubeStackIKRelMimicEnvCfg serves as an example of creating a Mimic compatible environment config class for the Franka stacking task that was used in the examples above.

The DataGenConfig member contains various parameters that influence how data is generated. It is initially sufficient to just set the name parameter, and revise the rest later.

Subtasks are a list of SubTaskConfig objects, of which the most important members are:

object_ref is the object that is being interacted with. This will be used to adjust motions relative to this object during data generation. Can be None if the current subtask does not involve any object.
subtask_term_signal is the ID of the signal indicating whether the subtask is active or not.

For multi end-effector environments, subtask ordering between end-effectors can be enforced by specifying subtask constraints. These constraints are defined in the SubTaskConstraintConfig class.

Subtask annotation#

Once the subtasks are defined, they need to be annotated in the source data. There are two methods to annotate source demonstrations for subtask boundaries: Manual annotation or using heuristics.

It is often easiest to perform manual annotations, since the number of input demonstrations is usually very small. To perform manual annotations, use the annotate_demos.py script without the --auto flag. Then press B to pause, N to continue, and S to annotate a subtask boundary.

For more accurate boundaries, or to speed up repeated processing of a given task for experiments, heuristics can be implemented to perform the same task. Heuristics are observations in the environment. An example how to add subtask terms can be found in source/isaaclab_tasks/isaaclab_tasks/manager_based/manipulation/stack/stack_env_cfg.py, where they are added as an observation group called SubtaskCfg. This example is using prebuilt heuristics, but custom heuristics are easily implemented.

Helpers for demonstration generation#

Helpers needed for Isaac Lab Mimic are defined in the environment. All tasks that are to be used with Isaac Lab Mimic are derived from the ManagerBasedRLMimicEnv base class, and must implement the following functions:

get_robot_eef_pose: Returns the current robot end effector pose in the same frame as used by the robot end effector controller.
target_eef_pose_to_action: Takes a target pose and a gripper action for the end effector controller and returns an action which achieves the target pose.
action_to_target_eef_pose: Takes an action and returns a target pose for the end effector controller.
actions_to_gripper_actions: Takes a sequence of actions and returns the gripper actuation part of the actions.
get_object_poses: Returns the pose of each object in the scene that is used for data generation.
get_subtask_term_signals: Returns a dictionary of binary flags for each subtask in a task. The flag of true is set when the subtask has been completed and false otherwise.

The class FrankaCubeStackIKRelMimicEnv shows an example of creating a Mimic compatible environment from an existing Isaac Lab environment.

Registering the environment#

Once both Mimic compatible environment and environment config classes have been created, a new Mimic compatible environment can be registered using gym.register. For the Franka stacking task in the examples above, the Mimic environment is registered as Isaac-Stack-Cube-Franka-IK-Rel-Mimic-v0.

The registered environment is now ready to be used with Isaac Lab Mimic.
